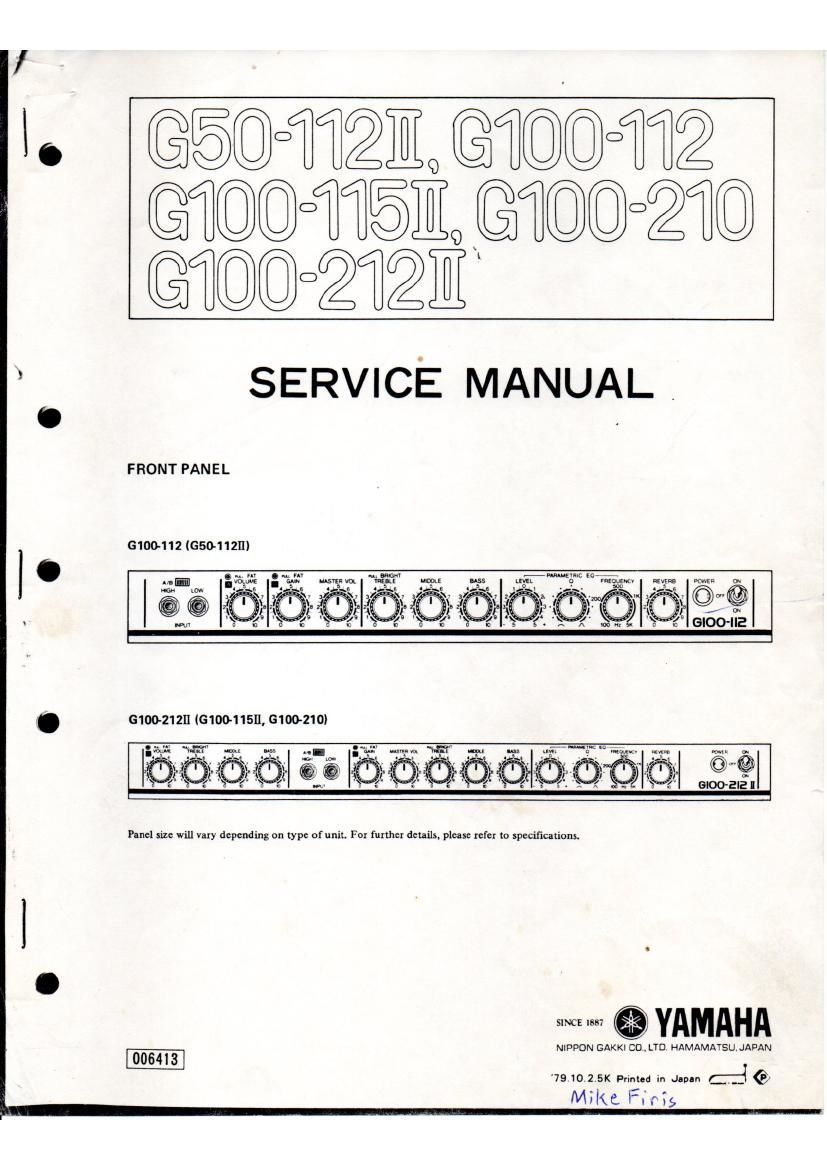

Yamaha g50 112 g100 112 115 210 212 series ii version
This is the 18 pages manual for yamaha g50 112 g100 112 115 210 212 series ii version.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha g50 112 g100 112 115 210 212 series ii version (Ocr-read)
Page 2
REAR PANEL
gl® ©
swam All
50m 5::
The illustration shows the U.S. and CANADIAN
models. Other models are equipped with voltage
selecters instead of AC outlets. So be sure to
check for desired voltage.
CONTENTS
REAR PANEL .............................................................. 2
GENERAL SPECIFICATIONS ................. 3
LOUDSPEAKER SPECIFICATION .............. 3
ADJUSTMENTS AND PERFORMANCE CHECKS ...................................... 4
DISMANTLING PROCEDURE ................................................... 6
FREQUENCY RESPONSE DIAGRAM ............................. 7
SCHEMATIC DIAGRAM (Power supply and Main amplifier sections) 8
SCHEMATIC DIAGRAM (Preamplifier section) ........................................ 9
PRINTED CIRCUIT BOARDS .................................................. 10
PARTS LIST .............................................................. 11
