Yamaha g25 112 service manual
This is the 10 pages manual for yamaha g25 112 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha g25 112 service manual (Ocr-read)

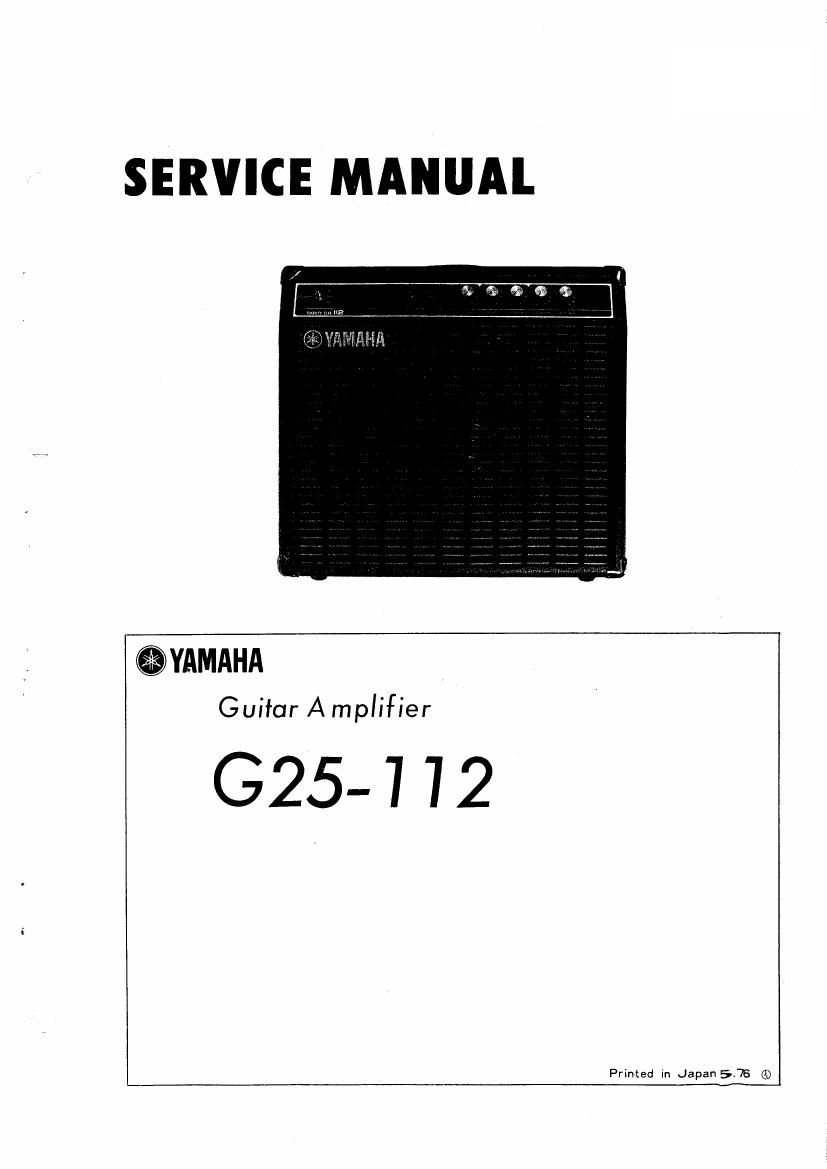

Page 1
SERVICE MANUAL
OYAMAHA
Guitar Amplifier
(325-7 72
| dapan5-76 6)
Page 2
SPECIFICATIONS
OUTPUT POWER 30 Watts RMS @3% THD 8 ohms
SPEAKER Single 12" (30cm) Yamaha JA-3015
INPUT SENSITIVITY High ~36dBm (12mV)
Low -30dBm (25mV)
@1 KHz (Volume & Tone Controis at max.)
INPUT IMPEDANCE High 1M ohms
Low 130K ohms
CONTROLS VOLUME
BASS TREBLE
DISTORTION REVERB
FOOT SWITCH JACK REVERB
POWER REQUIREMENTS 110, 117, 130, 220 or 240V AC 50/60Hz
117V 0.5A (Canadian model), 120W (othermodels) ,E
DIMENSIONS Width 47cm (13.5 In)
Height 450m (17.7 in)
Depth 200m (7.9 in)
WEIGHT 12.4 kg (27.3 lbs)
FINISH Black leatherette, reinforced corners
Specifications subject to change without notice.
