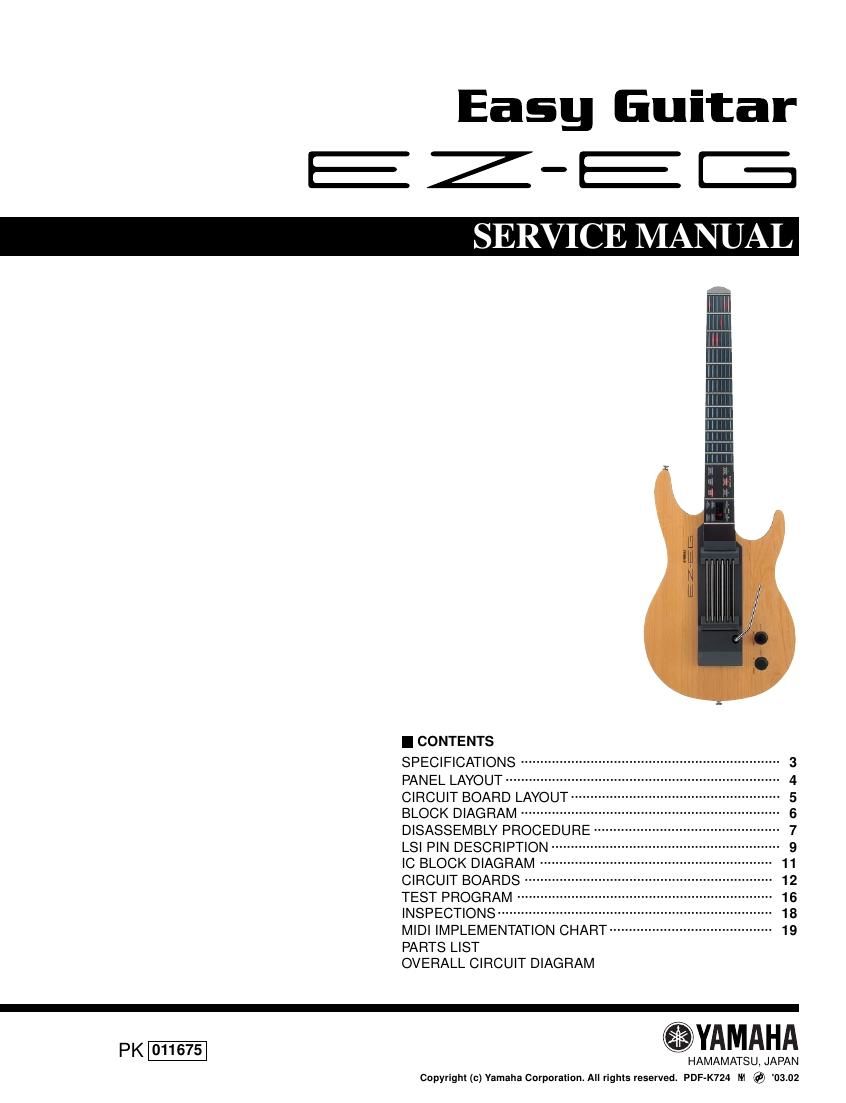

Yamaha ez eg guitar service manual
This is the 33 pages manual for yamaha ez eg guitar service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha ez eg guitar service manual (Ocr-read)
Page 1
EZ-EG 2 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with par ts having specification equal to those originally installed.
Page 2
EZ-EG 3 SPECIFICATIONS Strings Frets Displays Voices Play Modes Controls Songs Tremolo Arm Range Tempo Range Balance Range Capo Range Tuning Connectors Maximum Output Power PHONES/OUTPUT Speaker Power Supply Power Consumption Dimensions (w x d x h) Weight Supplied Accessories6 12 Numeric LED display, 6 x 12 fret LEDs 9 guitar, 8 bass, 3 others STRUM (right hand), CHORD (left hand), BOTH (both hands) [STANDBY/ON] switch, [VOLUME] control, tremolo arm, [STRUM] button, [CHORD] button, [BOTH] button, [DEMO] button, [SOUND] button, [SONG] button, [TEMPO] button, [BALANCE] button, [CAPO] button, [TUNING] button, VALUE [+]/[-] buttons 18 (additional songs can be loaded into internal memory from a computer) -300 Ð +300 cents 32 Ð 280 0 Ð 127 0 Ð 10 28 tuning settings in addition to normal DC IN 9V, PHONES/OUTPUT (mini stereo jack), MIDI IN and MIDI OUT 0.7 W (batteries or AC adaptor) Output impedance: 50 ohms 5 cm PA-D09 AC Power Adaptor (supplied) Six 1.5V ÒAAÓ size, R6P or equivalent batteries 6.5 W (using the PA-D09 AC Power Adaptor) 809 x 300 x 72 mm (32" x 11-3/4" x 3") 1.6 kg (3 lbs. 8oz.) (w/o batteries) Tremolo Arm, Strap, C-Clip x 2, Pick, AC Power Adaptor, EZ-EG Song Chord Chart, USB-MIDI Interface (UX16), CD-ROM
