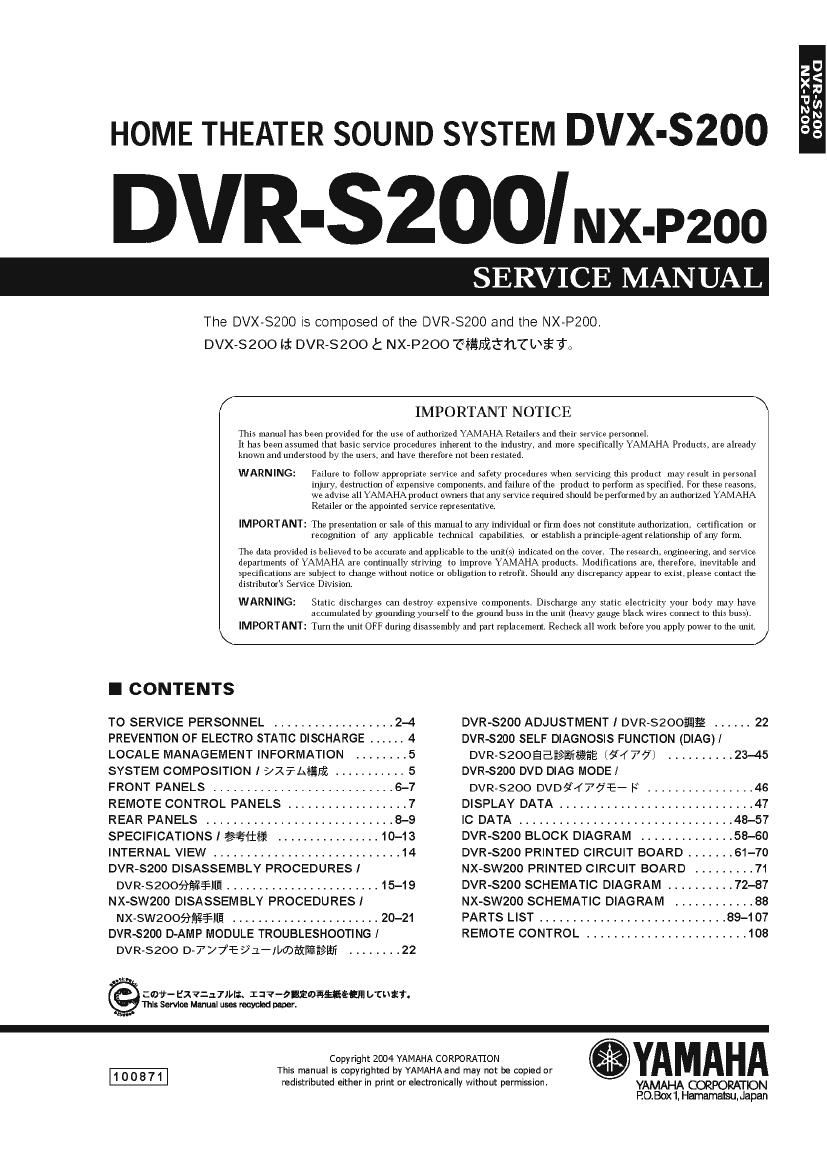

HOME THEATER SOUND SYSTEM DVX-SZOO

DVR-SZOOqu.pzoo

SER E MANU

The DVX-SZOO is composed of the DVR-SZOO and the NX-PZOO.
DVX-SZOO l3: DVR-SZOO t NX-PZOO Tififilfi'éh'CLij's

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basrc service procedures inherent to the industry, and more specifically YAMAHA Produds are already
known and undei stood by the users, and have flierefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destmction of expensive components. and failure ofthe product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized YAVIAHA
Retailer or the appointed service representative.

IMPORT ANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establisha principlesagent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and
specifications rue subject to dtaiige without notice or obligation to ietiolit. Should any discrepancy appear to exist, please contact the

distributor's Service Division.

WARNING: Static discharges can destroy expensive components Discharge any static electricity your body may have
accumulated by goutidiiig youl self to the giouiid buss in the unit {heavy gauge black wires coiuiect to this buss}.

IMPORT ANT: Turn the unit OFF during disassembly and pan replacement. Recheck all work before you apply power to the unit.

I CONTENTS
TO SERVICE PERSONNEL .................. 2-4
PREVENTION OF ELECTRO STA11C DISCHARGE ...... 4
LOCALE MANAGEMENT INFORMATION ........ 5
SYSTEM COMPOSITION I 9X7in§lafi ........... 5
FRONT PANELS ........................... 6-7
REMOTE CONTROL PANELS .................. 7
REAR PANELS ............................ 8-9
SPECIFICATIONS! fifiiflfi ................ 10-13
INTERNAL VIEW ............................ 14
DVR-Szoo DISASSEMBLY PROCEDURESI
DVR-SZOOfifiE¥l|lE ........................ 15-1 9
NX-SW200 DISASSEMBLY PROCEDURESI
NX-swzoofififillfi ....................... 20-21
DVR-SZOO D-AMP MODULE TROUBLESHOOTING /
DVR-SZOO D-T'yjf-Dl-II/mfikiéiéllfi ........ 22

g E@#- EZ7ZJ7IH1t IJV-QEEQIHEIE LTHET.
This Service Manual uses recycled paper.

Copyright 2004 YAMAHA CORPORATION
This manual Is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.

_

DVR-SZOO ADJUSTMENT I DVR-SZOOEEE ...... 22
DVR-SZOO SELF DIAGNOSIS FUNCTION (DIAG)/
DVR-Szooaaiélllimfi (74 7'7) .......... 23-45
DVR-szoo DVD DIAG MODE/
DVR-szoo DVD§476E- I~ ................ 46
DISPLAY DATA ............................. 47
IC DATA .................. .48-57

DVR-SZOO BLOCK DIAGRAM
DVR-SZOO PRINTED CIRCUIT BOARD . ..

. .58-60
.61-70

NX-SW200 PRINTED CIRCUIT BOARD .. . . .71
DVR-SZOO SCHEMATIC DIAGRAM . . . . .72-87
NX-SW200 SCHEMATIC DIAGRAM . . . .88
PARTS LIST ....................... 89-107
REMOTE CONTROL ........................ 108
