Yamaha dvr c310

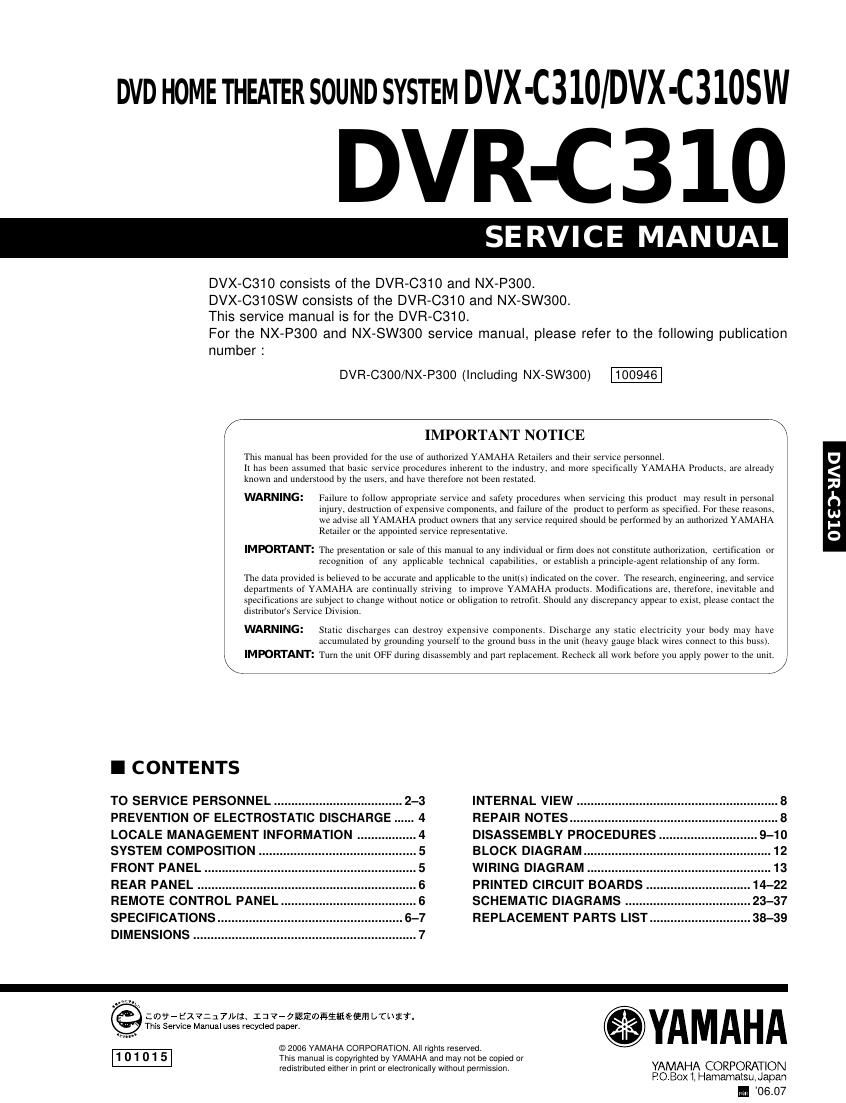

Page 1

DVD HOME THEATER SOUND SYSTEM DVX-C310/DVX-C31OSW

DVR-C310

SERVICE MAN

DVX»CB1O consists of the DVFi-CS10 and NX-PBOO.

DVX-CS1OSW consists of the DVR»0310 and NX-SW300.

This service manual is for the DVR-CS10.

For the NX-P300 and NX-SW300 service manual, please refer to the following publication
number :

DVRsCBOO/NX-P3OO (Including NX-SWBOO) 100946

l IMPORTANT NOTICE

This mairual has been provided for the use of authorized YAMAHA Retailers and their service personnel
it has been assurried that basic service procedures inherent to the industry and more specifically YAMAHA Products. are already
known and understand by the users, and have therefore not been restated,

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury. destruction of expensive components. and failure of the product to perform as specified. For tlrese reasons.
we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA
Retailer or the appointed semce representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization certification or
recognition of any applicable technical capabilities. or establish a principlesagent relationship of any form.

The data provided rs believed to be accurate and applicable to the um[(5) indicated on the cover. The research. engineering. and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore. inevitable and
specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to extst. please contact the
distributors Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accurriulated by grounding yourself to the ground buss in the urrrt (heavy gauge black wires connect to this buss).

r IMPORTANT: Turn the unit OFF during disassembly and part replacement. Reclteck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL ............................... .2-3 INTERNAL VIEW .

PREVENTION OF ELECTROSTATIC DISCHARGE . REPAIR NOTES... 8
LOCALE MANAGEMENT INFORMATION ................. 4 DISASSEMBLY PROCEDURES ............................ 9-10
SYSTEM COMPOSITION BLOCK DIAGRAM.. 12
FRONT PANEL ............. .. WIRING DIAGRAM. 13
REAR PANEL ............................................................... 6 PRINTED CIRCUIT BOARDS .............................. 14-22
REMOTE CONTROL PANEL SCHEMATIC DIAGRAMS ....... 23-37
SPECIFICATIONS .................. REPLACEMENT PARTS LIST 38-39
DIMENSIONS ................................................................ 7

This Service Manual uses recycled paper.

@ :09- EX?:17)H;. lav-aazmezmefife mixes.

© 2006 YAMAHA CORPORATION. All rights reserved

This manual is copyrighted by YAMAHA and may not be copied or

redistributed either in print or electronically Without permission. YAMAHA CORPORATION
PO. Box 1. Hamamatsu. Japan

m '06.07

DIED-HAG

Page 2

DVR-C310

DVR-C 310

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked A WALL EQUIPMENT TESTER OR
and must be replaced with parts having specifications equal OUTLET UNDER TEST EQUIVALENT
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only) ® C
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated :
from supply circuits. INSTLi'fiI-éNG

0 Meter impedance should be equivalent to 1500 ohms
shunted by 0.15pF.

o Leakage current must not exceed 0.5mA.

0 Be sure to test for leakage with the AC plug in both

polarities.
THE DVD AUDIO/VIDEO PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or
plastic (where applicable) components may also contain traces of chemicals found by the California Health and
Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR
ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes
or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands
before handling food.

WARNING: Laser Safety

This product contains a laser beam component. This component may emit invisible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must
be used during servicing of the unit.

1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.

2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.

3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.

Laser Emitting conditions:

1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the "ON" position, the laser component will
emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through
the lens of the laser pick-up unit. Do not attempt any servicing during this period!

If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser
emissions.

2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual. Adjustment of this control can increase the laser emission level from the device.
