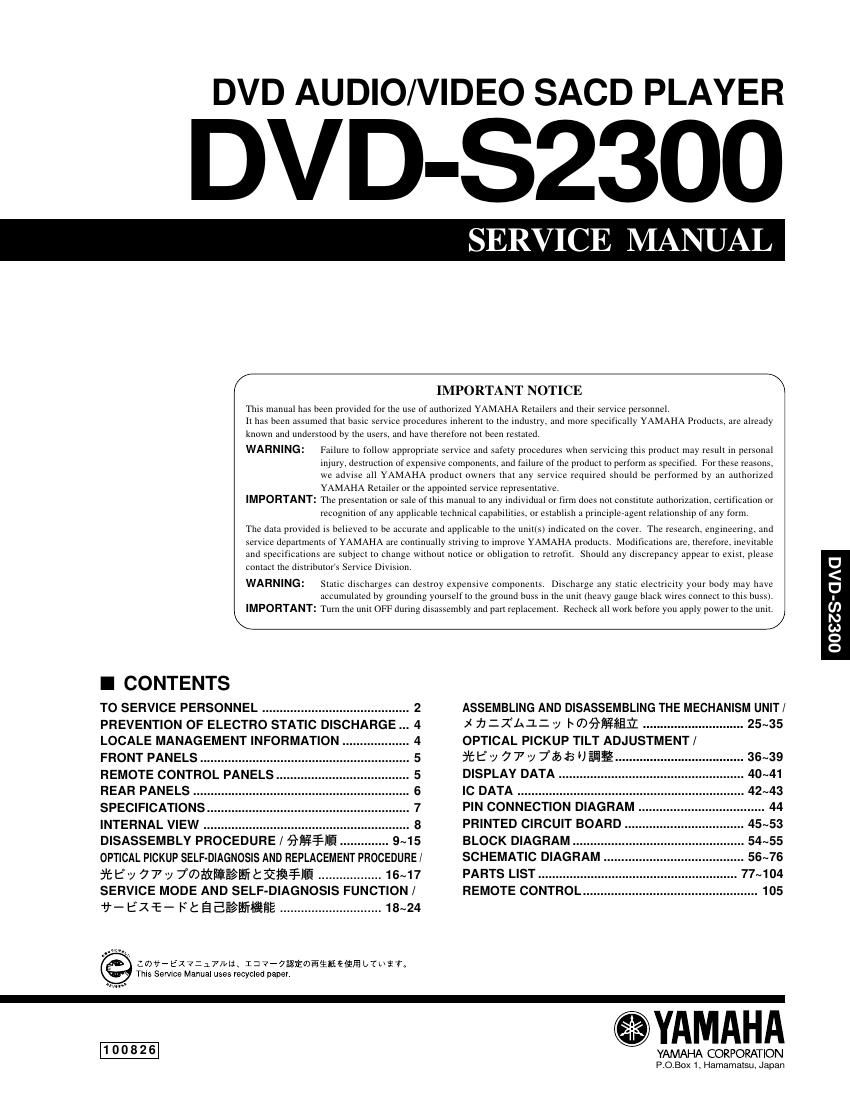

Page 1

DVD AUDIO/VIDEO SACD PLAYER

DVD-S2300

SER E MANU

IMPORTANT NOTICE

This manual has been provided tor the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry. and more specifically YAMAHA Products. are already

known and understood by the users. and have therefore not been restated,

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure ottlie prodttct to perform as Specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale at this manual to any individual or firm does not constitute athonZalloxL certification or
recognition of any applicable technical capabilities. or establish a principleagent relationship of any form,

The data provided is believed to be accurate and applicable to the unittst indicated on the cover, The research. engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Moditicarions are. lherefme. inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist. please
contact the distributors Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourselt to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disasseuibly and part replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL .......................................... 2
PREVENTION OF ELECTRO STATIC DISCHARGE 4
LOCALE MANAGEMENT INFORMATION ................... 4
FRONT PANELS ...................... 5
REMOTE CONTROL PANELS 5
REAR PANELS ..... 6
SPECIFICATIONS. .. 7
INTERNAL VIEW .................................... B
DISASSEMBLY PROCEDURE / fifieiimfi . 9~15

OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE/
j'téliy 77v imaiiééélifitfimillfi .................. 16~17
SERVICE MODE AND SELF-DIAGNOSIS FUNCTION /
#SEX¥~ FtEEEJ/afimaag ............................. 18~24

' lwfiibXVZJTIbllc 137773§E®§$fififl§fi§D1w§Ts
This Service Manual uses recycled paper.

100826

ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT/
x 77:2A1:~y hmfifigtfifi ............................. 25~35
OPTICAL PICKUP TILT ADJUSTMENT /

fifilfy 77v TMEIEEJE
DISPLAY DATA ................
IC DATA ...................................
PIN CONNECTION DIAGRAM
PRINTED CIRCUIT BOARD.
BLOCK DIAGRAM ............ ..
SCHEMATIC DIAGRAM .. 56~76
PARTS LIST ................... 77~104
REMOTE CONTROL .................................................. 105

YAMAHA

YAMAHA CORPORATION

P.O.Box1, Hamamaisu, Japan

OOSZS'GACI

Page 2

DV D-32300

DVD-$2300

I TO SERVICE PERSONNEL

Critical Components Information

Components having special characteristics are marked A. AC LEAKAGE
and must be replaced with parts having specifications equal WALL EQUIPMENT TESTER OR
to those originally installed. OUTLET UNDER TEST EQUIVALENT
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify ® :D-
that all exposed conductive surfaces are properly insulated
from supply circuits. =
0 Meter impedance should be equivalent to 1500 ohm shunted INS1IJALBAJEING

by 0.1 SpF.
o Leakage current must not exceed 0.5mA.
0 Be sure to test for leakage with the AC plug in both polarities.

THE DVD PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

WARNING: Laser Safety

This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may
cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during
servicing of the unit.

1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.

2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.

3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.

Laser Emitting conditions:

1) When the Top Cover is removed, and the "POWER" SW is turned to the "ON" position, the laser component will emit a
beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens
of the laser pick-up unit. Do not attempt any servicing during this period!

If no disc is detected, the laser will stop emitting the beam. When a disc is set, you will not be exposed to any laser
emissions.

2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual.

Adjustment of this control can increase the laser emission level from the device.
