Yamaha dvd c950

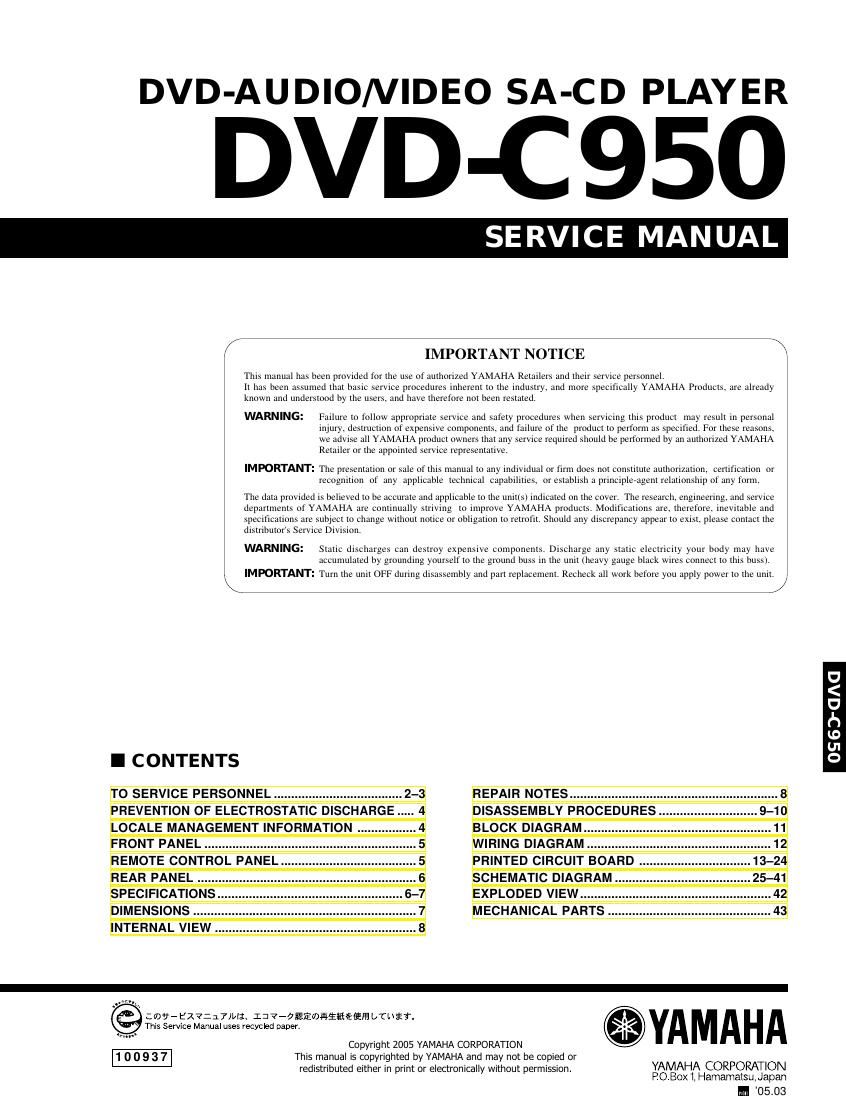

Page 1

DVD-AUDIONIDEO SA-CD PLAYER

DVD-C950

SERVICE MAN UAL

" IMPORTANT NOTICE \

Thrs manual has been proyrderl for rhe use of aurhorlzed YAMAHA Rerarlers and Iileir serylce personnel,
if has been assumed rhar basre servrce procedures lnherenr ro rhe Industry and more specifically YAMAHA Products. are already
known and undersroorl by the users. and have therefore nor been reslarerl,

WARNING: Farlure re follow approprlare serylce and safely procedures when serylcrng rhls producr may resulr m personal
injury desuucllon of expensrye components and farlure of rhe producr ro perform as specified. For rhese reasons.
we arlyrse all YAMAHA produer owners rhar any service required should be performed by an aurhorrzed YAMAHA
Rerarler or rhe appolnred service represenranye.

IMPORTANT: The presemannll or sale of rhls manual ro any lnduldual or firm does not consnrure anrhorrzanon. cerrlfrcarlon or
recognition of any applreable rechnlcal capabililiess or establishaprlllclpleragelll relarlonshlp ofany form.

The dara provided ls belreyed lo be accurare and applicable lo the unlrisl mdrcaled on rhe cover. The research, engineering, and servrce
departments of YAMAHA are eonrlnually srrlylng ro improve YAMAHA products. Modrflcauons are therefore mevimble and
specrfrearlons are subyecr ro change without norlce or obligalion lo rerrofu. Should any drserepancy appear ro exlsr. please conracr rhe
dlslnbulorh Seryree Division.

WARNING: Srarlc drscharges can desuoy expenslye componenrs. Discharge any slarre elecu-lcuy your body may have
accumulared by gmulldlng yourself ro rhe ground buss m the unlr (heavy gauge black wires connecr :0 this buss).

r IMPORTANT: Turn the unu OFF durlnp dis sembly and parr replacemenr. Recheck all work before you apply power ro rhe un .

I CONTENTS

TO SERVICE PERSONNEL

. 2-3 REPAIR NOTES

PREVENTION OF ELECTROSTATIC DISCHARGE . 4 DISASSEMBLY PROCEDURES . 9-10
LOCALE MANAGEMENT INFORMATION 4 BLOCK DIAGRAM. 11
FRONT PANEL 5 WIRING DIAGRAM 12
REMOTE CONTROL PANEL 5 PRINTED CIRCUIT BOARD .13-24
REAR PANEL 6 SCHEMATIC DIAGRAM 25-41
SPECIFICATIONS.....................................................6-7 EXPLODED VIEW42
DIMENSIONS 7 MECHANICAL PARTS 43

NTERNAL VIEW 8

:wfi- EX?:17M:. I: 7-Oaimiiflféfifi bfii'y.
This Service Manual uses recycled paper.

Copyright 2005 YAMAHA CORPORATION
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronicaily without permission. YAMAHA CORPORATION
POBox i Hamamalsu Japan

M 05.03

OSGD'CIACI

Page 2

DVD-C950

DVD-C950

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked A WALL EQUIPMENT TESTER OR
and must be replaced with parts having specifications equal OUTLET UNDER TEST EQUIVALENT
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only) ® I:

When service has been completed, it is imperative to verify f
that all exposed conductive surfaces are properly insulated :
from supply circuits. INSTLAIEIENG

0 Meter impedance should be equivalent to 1500 ohms
shunted by 0.15pF.

o Leakage current must not exceed 0.5mA.

0 Be sure to test for leakage with the AC plug in both

polarities.
THE DVD AUDIO/VIDEO PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or
plastic (where applicable) components may also contain traces of chemicals found by the California Health and
Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR
ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes
or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands
before handling food.

WARNING: Laser Safety

This product contains a laser beam component. This component may emit invisible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must
be used during servicing of the unit.

1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.

2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.

3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.

Laser Emitting conditions:

1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the "ON" position, the laser component will
emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through
the lens of the laser pick-up unit. Do not attempt any servicing during this period!

If no disc is detected. the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser
emissions.

2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual. Adjustment of this control can increase the laser emission level from the device.
