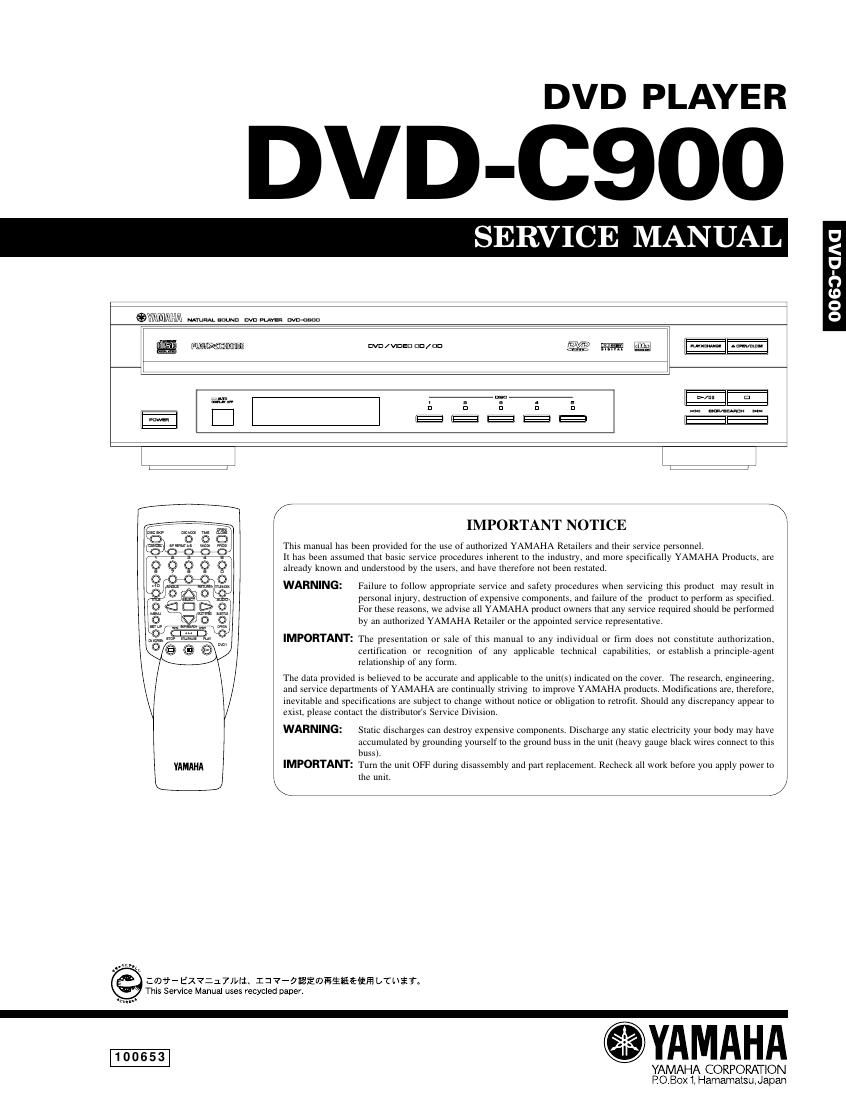

Yamaha dvd c900
This is the 89 pages manual for yamaha dvd c900.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha dvd c900 (Ocr-read)
Page 1
DVD-C900 DVD-C900 1. Critical Components Information. Components having special characteristics are marked and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only). When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. EQUIPMENT UNDER TEST WALL OUTLET INSULATING TABLE AC LEAKAGE TESTER OR EQUIVALENT < CAUTION:USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING TO SERVICE PERSONNEL 1 This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing . 1. Pickup Wave length : 655 nm Laser power : CLASS II2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. CONTENTS TO SERVICE PERSONNEL ......................................... 1 PREVENTION OF ELECTRO STATIC DISCHRGE (ESD) TO ELECTRO STATICALLY SENSITIVE (ES) DEVICES ....................... 2 SPECIFICATIONS ......................................................... 3 REAR PANELS ............................................................. 4 PRECAUTION LASER DIODE ..................................... 5 HANDLING PRECAUTIONS FOR TRAVERS DECK .. 5 INTERNAL VIEW .......................................................... 6 DISASSEMBLY PROCEDURES .............................. 7~8 REPLACING THE MAIN PARTS OF THE TRAVERSE UNIT .. 9~10 GREASE APPLICATION DIAGRAM .......................... 10 MAIN P.C.B. OPERATION CHECK ........................... 11 ADJUSTMENT ....................................................... 12~13TEST MODE .......................................................... 15~26 TROUBLESHOOTIG ............................................. 27~30 IC DATA ................................................................ 31~46 IC BLOCKS ........................................................... 47~52 PIN CONNECTION DIAGRAM ................................... 52 DISPLAY DATA .......................................................... 53 BLOCK DIAGRAM ................................................ 54~55 PRINTED CIRCUIT BOARD ................................. 56~65 SCHEMATIC DIAGRAM ....................................... 66~68 PARTS LIST .......................................................... 69~84 SWITCHING POWER SUPPLY ............................ 85~87 REMOTE CONTROL TRANSMITTER ........................ 88 OPERATING INSTRUCTION ................................ 89~96
Page 2
DVD-C900 DVD-C900 WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. 2 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD) TO ELECTRO STATICALLY SENSITIVE (ES) DEVICES
