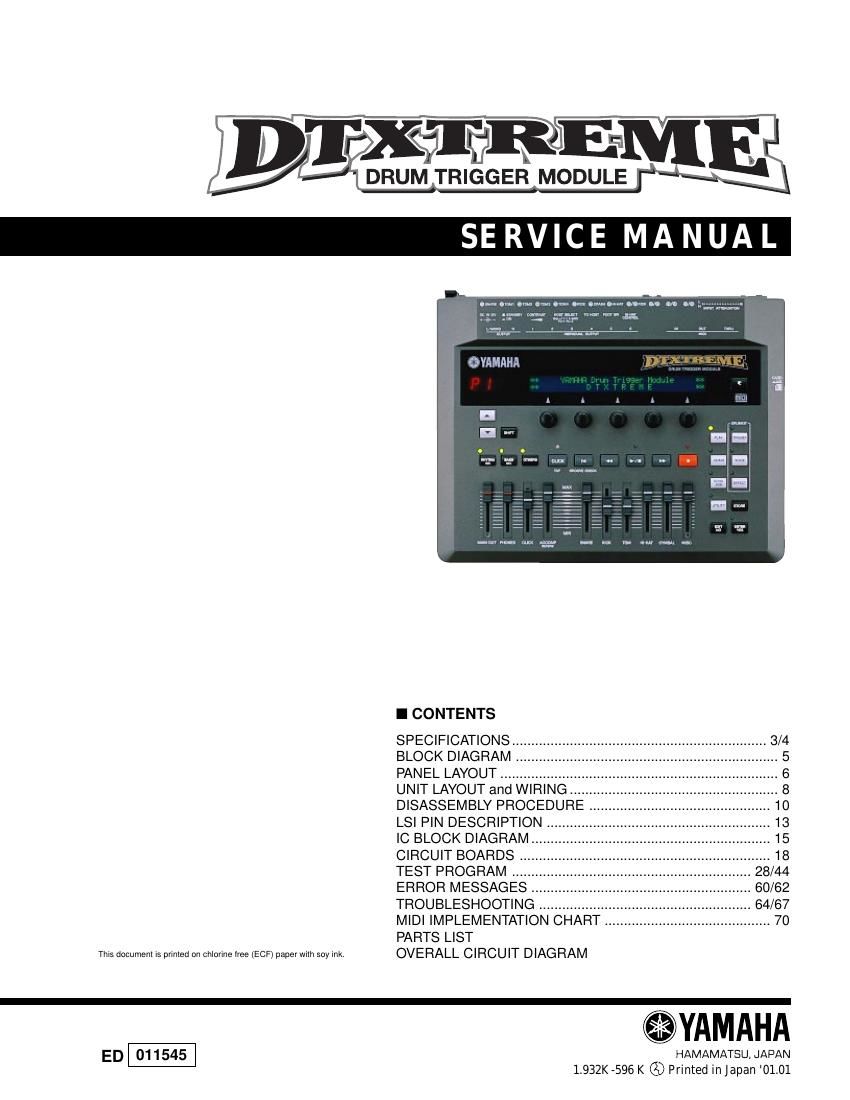

Yamaha dtxtreme drum trigger module service manual
This is the 85 pages manual for yamaha dtxtreme drum trigger module service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha dtxtreme drum trigger module service manual (Ocr-read)
Page 1
DTXTREME 2 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity you body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. LITHIUM BATTERY HANDLING This product uses a lithium battery for memory back-up. WARNING: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. l Leave lithium battery replacement to qualified service personnel. l Always replace with batteries of the same type. l When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. l Never solder directly to the cells. Perform the soldering as quickly as possible. l Never reverse the battery polarities when installing. l Do not short the batteries. l Do not attempt to recharge these batteries. l Do not disassemble the batteries. l Never heat batteries or throw them into fire. ADVARSEL!Lithiumbatteri-Eksplosionsfare ved fejlagtig hŒndtering. Udskiftning mŒ kun ske med batteri af samme fabrikat og type. LevŽr det brugte batteri tilbage til leverand¿ren. VARNINGExplosionsfara vid felaktigt batteribyte. AnvŠnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvŠnt batteri enligt fabrikantens instruktion. VAROITUSParisto voi rŠjŠhtŠŠ, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. HŠvitŠ kŠytetty paristo valmistajan ohjeiden mukaisesti. The following information complies with Dutch Official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES. ¥ Please refer to the diassembly procedure for the removal of Back-up Battery. ¥ Leest u voor het verwijderen van de backup batterij deze beschrijving.
Page 2
DTXTREME 3 n SPECIFICATIONS Tone Generator 16-bit AWM2(PCM) Wave Memory DRAM16 Mbit ´ 2 (max47sec@44.1 kHz) Poylphony Maximum of 64 notes Parts 16 parts Voices 1757 Drum and Percussion Voices, 128 Keyboard Voice (GM Level 1) System Effects 2 Blocks (Reverb, Chorus) Effect for Drum Kit 2 Insertion Effects Sequencer 2 Tracks MIDI sequencer MODES 8 modes Drum Kit Play mode Drum Kit Trigger Edit mode Drum Kit Voice Edit mode Drum Kit Effect Edit mode Chain Play mode Song Job mode Utility mode Store mode Controls 23 Push switches Page s, Page t, RHYTHM, BASS, OTHERS, CLICK, TOP, REW, PLAY/STOP, FF, REC, PLAY, CHAIN, SONG JOB, UTILITY, EXIT/NO, SHIFT, TRIGGER, VOICE, EFFECT, STORE, ENTER/YES, 10 Slide Volumes MASTER VOLUME, PHONES, ACCOMP/REVERB, CLICK, SNARE, KICK, TOM, HI-HAT, CYMBAL, MISC 5 Rotary encoders Display l 40 ´ 2 characters Backlit LCD l 3 digits 7 segments LED l 14 operation LEDs Memory Card SmartMedia™, 3.3 V card used only Input and Output Rear Panel lMIDI IN/OUT/THRU lTO HOST, Host select SW lFOOT SW (mono phone) - FC4, FC5, HH60 lHI-HAT CONTROL (stereo phone) - HH80, HH80A, HH60 lOUTPUT L/MONO (mono phone) lOUTPUT R (mono phone) lINDIVIDUAL OUTPUT 1 ~ 6 (mono phone) lTrigger input 1 ~ 8 (stereo phone - L: trigger, R: sw) ´ 8 lTrigger input 9/10, 11/12, 13/14, 15/16 (stereo phone - L, R: trigger ) ´ 4 lINPUT ATTENUATION switch 1 ~ 16 (DIP SW) Side Panel lSmartMedia™ connecter Front Panel lPHONES (stereo phone) lAUX IN (stereo mini) lAUX IN VOL Power Requirements DC 12 V Dimensions(W x H x D) 300 mm ´ 71 mm ´ 229 mm Weight 2.2 kg Included Accessories AC power adaptor (PA-5B or PA-D12) Consume electric power 6 W OUTPUT LEVEL Please see TEST PROGRAM (Page 40) in this service manual. SPEAKER
