Extracted text from yamaha dtxt3 drum trigger module service manual (Ocr-read)

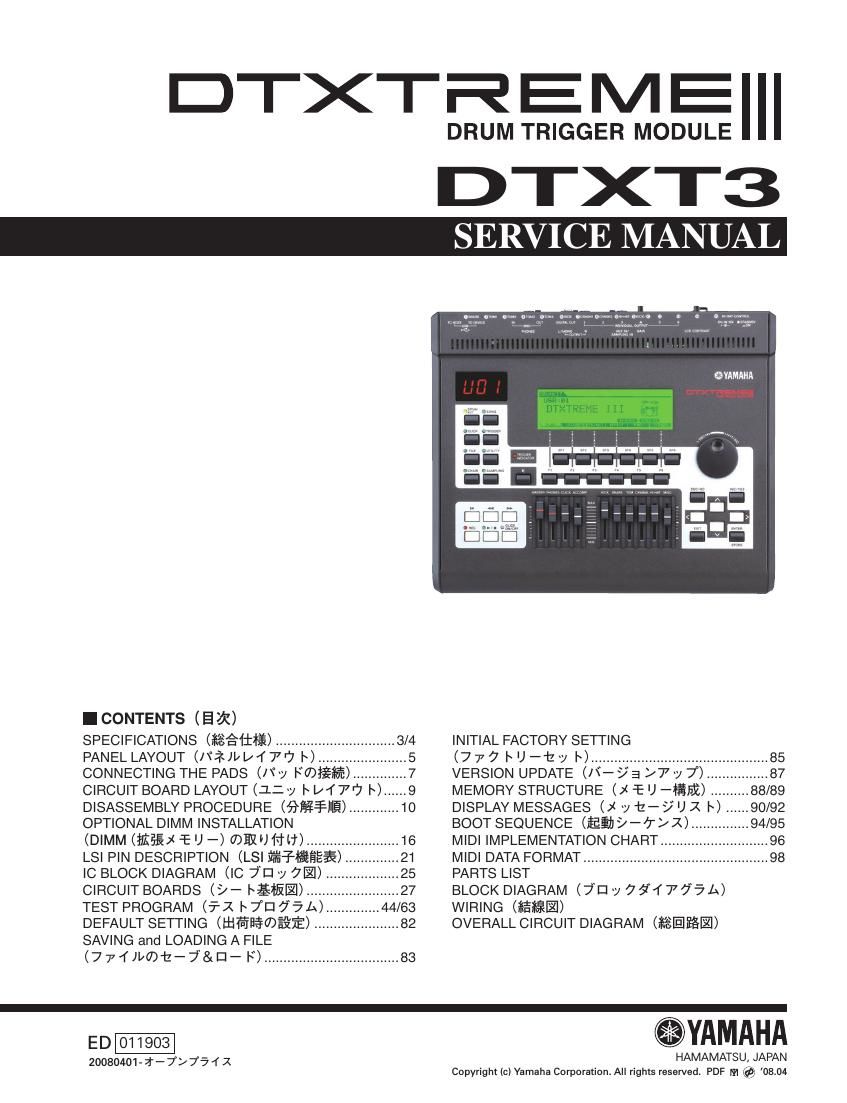

Page 1
DTXTREME ™ 2 WARNING Components having special characteristics are marked and must be replaced with parts having specifi cation equal to those originally installed. SAVING DATA¢Ã»w- £ Saving and backing up your data - DRAM data is lost when you turn off the power to the instrument. Save the data to external USB storage device. - Never attempt to turn off the power while data is being written to Flash ROM (while a Please keep power on message is shown). Turning the power off in this status results in loss of all user data and may cause the system to freeze (due to corruption of data in the Flash ROM). This means that this instrument may not be able to start up properly, even when turning the power on next time. Saving factory preset data - When you save your original data to flash ROM, the factory preset data in some area of the fl ash ROM will be lost. Before saving your original data, be sure to save the factory preset data to external USB storage device. Backing up the external USB storage device - To protect against data loss through media damage, we recommend that you save your important data onto two USB storage devices. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/ flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Be sure to perform it Be sure to perform it Be sure to perform it ¹w æ ¼xz† ¶›¡ËbhŠt OAs æ ¼pb{¦õb Ôùxz† ¶whŠt žc¦ w æ ¼›]–;€65à4Ð'° ^ R`h
Page 2
3 DTXTREME ™ SPECIFICATIONS Tone GeneratorTone Generator AWM2 Polyphony 64 notes Wave 205MB (when converted to 16-bit linear format) Voice Preset: 1,115 drum voices, 211 melody voices (GM) Drum Kit Preset: 50 kits User: 50 kits (in the Flash ROM) External: 1584 kits (or 99 x 16, in the external USB storage device) Effects Reverb 9 types Chorus 18 types Variation 51 types Insertion 51 types Master Effect 9 types Master EQ 5 bands TriggerTrigger Setup Preset: 7 User: 5 Pad songs play, chace, cutoff 4 songs (max.) can be played simultaneously. SequencerNote Capacity Approx. 152,000 notes Note Resolution 480 ppq (parts per quarter note) Song Recording type Real time Song tracks 2 tracks Songs Demo: 3 songs Practice: 44 songs Pad song: 40 songs User: 50 songs Sequence Formay DTXTREME III Original Format, SMF format 0 ClickTempo 30 – 300 , Tap tempo Beat 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16 Timing Accent, Quarter note, Eighth note, Sixteenth note, Triplet Click Voices Preset: 8 User: 1 Training Functions Measure break, Groove check, Rhythm gate SamplingSamples 1,016 (for the User Voices) Sampling Sources Audio input signals via AUX IN/SAMPLING IN, Audio output signals via OUTPUT (Resample) Sample Data Bits 16bit Sampling Frequency 44.1kHz, 22.05 kHz, 11.025 kHz, 5.5125 kHz (stereo/mono) Sampling Memory Optionally installed, expandable to 512 MB (256 MB DIMM x 2 slots) * DIMMs are not installed to the instrument when shipped from the factory. Sample Length Mono: 32MB Stereo: 64MB Sampling Time 44.1kHz: 6 min. 20 sec. 22.05kHz: 12 min. 40 sec. 11.025kHz: 25 min. 20 sec. 5.5125kHz: 55 min. 40 sec. *Mono/Stereo Sample Format DTXTREME III Original format, WAV, AIFF OthersControllers Sliders MASTER, PHONES, CLICK, ACCOMP., KICK, SNARE, TOM, CYMBAL, HI-HAT, MISC. Data dial Displays 240 x 64 dot graphic backlit LCD, 7-segment LED (3-digit) Connectors - MIDI IN/OUT - USB TO DEVICE/TO HOST - OUTPUT L/MONO, R (Standard phone jack) - DIGITAL OUT (EIAJ CP1201, IEC60958, S/P DIF) - INDIVIDUAL OUTPUT 1 – 6 (Standard phone jack) - Trigger Input jacks 1 – 9, 12 – 15 (Standard stereo phone jack, L: Trigger Signal, R: Rim Switch) - Trigger Input jacks 10 and 11 (Standard stereo phone jack, L: Trigger Signal, R: Trigger Signal) - AUX IN/SAMPLING IN (Standard stereo phone jack) - PHONES (Standard stereo phone jack) - HI-HAT CONTROL (Standard stereo phone jack) - DC IN 16V Power Consumption 18W Dimensions, Weight 334(W) x 285(D) x 96(H) mm, 3.6kg Accessories AC Power Adaptor (Yamaha PA-300B, or an equivalent), Module stand, Module stand fastening screws (4; included) Owners Manual, Data List
