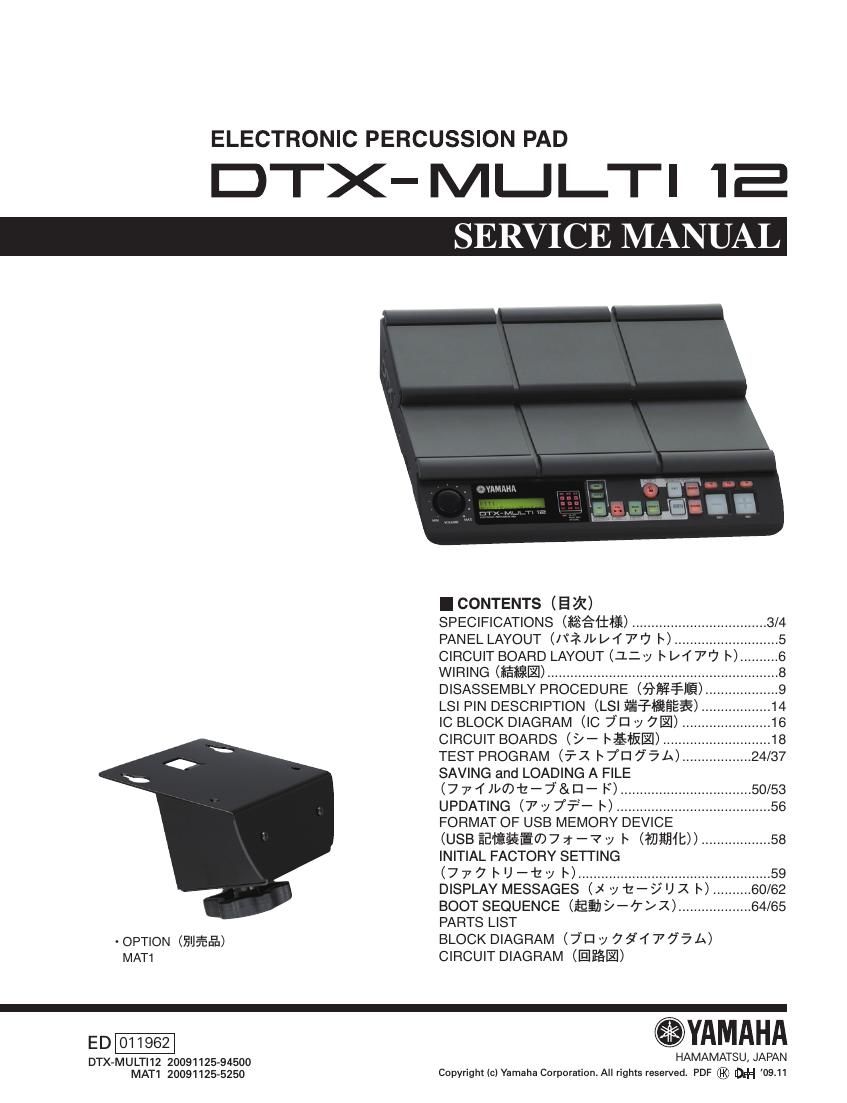

Yamaha dtx multi 12 percussion pad service manual
This is the 93 pages manual for yamaha dtx multi 12 percussion pad service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha dtx multi 12 percussion pad service manual (Ocr-read)
Page 1
DTX-MULTI 12 2 WARNING Components having special characteristics are marked and must be replaced with parts having specifi cation equal to those originally installed. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. IMPORTANT NOTICE FOR THE UNITED KINGDOM Connecting the Plug and Cord IMPORTANT. The wires in this mains lead are coloured in accordance with the following code: BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug. - This applies only to products distributed by Yamaha Music U.K. Ltd. (2 wires) WARNING: This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/ flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Be sure to perform it SAVING DATA¢Ã»w- £ Saving and backing up your data Saved data may be lost due to malfunction or incorrect operation. Save important data to external USB storage device. Backing up the USB storage device To protect against data loss through media damage, we recommend that you save your important data onto two USB storage devices. ¹w æ ¼xz† ¶›¡ËbhŠt OAs æ ¼pb{¦õb Ôùxz† ¶whŠt žc¦ w æ ¼›]–;€65à4Ð'° žcîæ ^ R`hûw- qÌ¿«ž¿Ó - `hûx‚ Ë¡ â^srwhŠtæ˜-
Page 2
3 DTX-MULTI 12 SPECIFICATIONS Pad sectionBuilt-in pads 12 External inputs 5 (three-zone x 1; monaural x 4) Tone generatorMaximum polyphony 64 notes Wave memory Voices100 MB (16-bit linear conversion) Drum and percussion: 1,061 Keyboard: 216 Drum kitsPreset: 50 User-defined: 200 Effects Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer Trigger section Pad functionsIncrement or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages WavesReadable quantity 500 Bit depth 16 bit Wave memory 64 MB Maximum sizeMono sample: 2 MB Stereo sample: 4 MB Sample formats Proprietary, WAV, and AIFF SequencerSequence capacity 152,000 notes Note resolution Quarter note / 480 Recording method Real-time overdubbing PatternsPreset patterns: 128 phrases (including 3 demo patterns) User-defined patterns: 50 phrases Sequence formatsProprietary SMF Format 0 (for loading only) Click-trackTempo 30 to 300 BPM. Tap tempo functionality Beats 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16 Note timing Accent notes, quarter notes, eight notes, sixteenth notes, triplets OtherDisplay Backlit LCD with 2 rows of 16 characters ConnectorsPA D M jack (standard stereo-phone plug; left = trigger, right = rim switch) PA DN/O and PAD P/Q jacks (standard stereo-phone plug; left = trigger, right = trigger) HI-HAT CONTROL jack (standard stereo-phone plug) FOOT SW jack (standard stereo-phone plug) OUTPUT L/MONO and R jacks (standard phone plugs) PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN. Power Consumption9W (DTXM12 and PA-5D adaptor) 6W (DTXM12 and PA-150 adaptor) Size and weight 345 (w) x 319 (d) x 96 (h) mm; 3.3 kg Package ContentsPower adaptor (PA-5D/PA-150 or an equivalent recommended by Yamaha), Owners Manual (this booklet), Data List booklet, DVD-ROM
