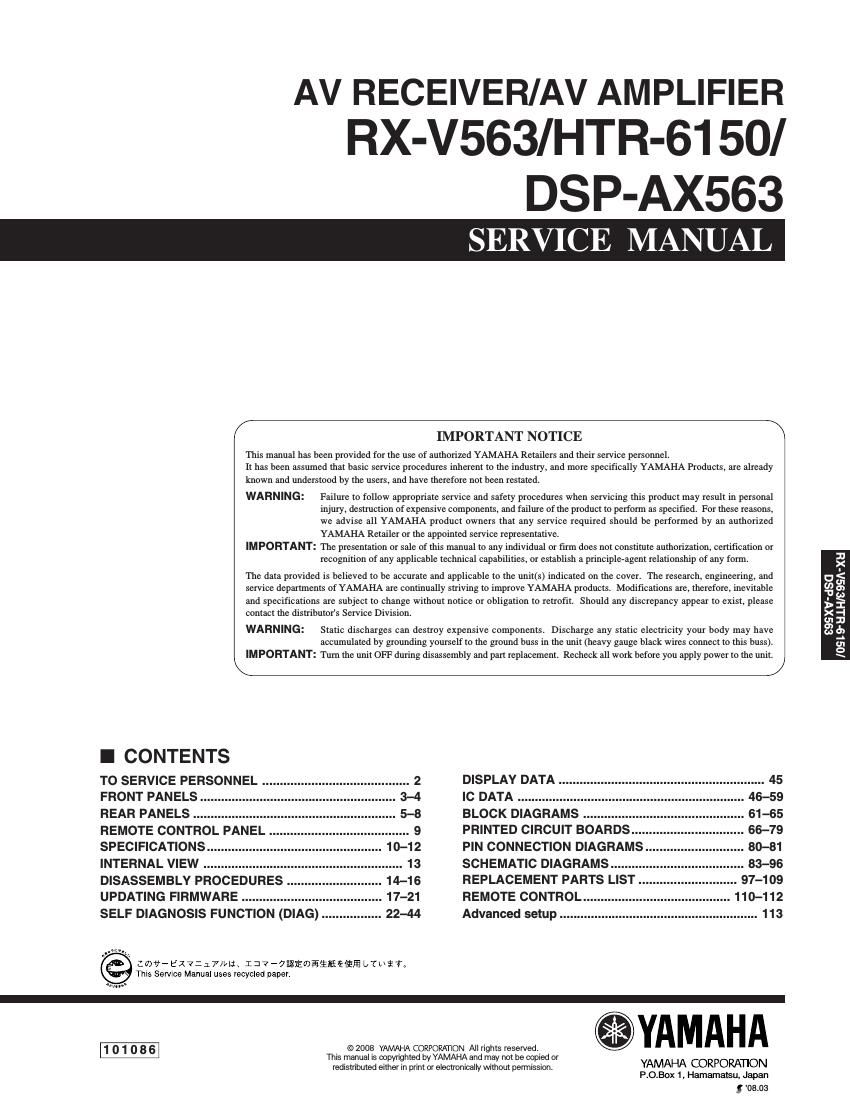

Page 1

AV RECEIVER/AV AMPLIFIER
X-V563/HTR-61 50/

DSP-AX563

SERVICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service represenmtive.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. certification or
recognition of any applicable technical capabilities. or establish a principleragent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the Cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore. inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributors Service Division.

3
5
<
80!
5')
'PS
>1
:3
8e
01
O
\

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and pan replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL 2
FRONT PANELS 3-4
REAR PANELS 5-8
REMOTE CONTROL PANEL 9
SPECIFICATIONS.................................................. 10-12
INTERNAL VIEW 13
DISASSEMBLY PROCEDURES 14-16
UPDATING FIRMWARE 17-21
SELF DIAGNOSIS FUNCTION (DIAG) 22-44

LoviEx7:a771lal;c I j 777aiw§ilfififiéifi LTLiTa
This Servlce Manual uses recycled paper.

@2008 YAMAHA CORPORATION All rights reserved.
Thls manual is copyrighted by VAMAHA and may not be copied or
redistributed ellher in print or electronically Without permission.

DISPLAY DATA 45
IC DATA 46-59
BLOCK DIAGRAMS 61-65
PRINTED CIRCUIT BOARDS 66-79
PIN CONNECTION DIAGRAMS............................ 80-81
SCHEMATIC DIAGRAMS 83-96
REPLACEMENT PARTS LIST 97-109
REMOTE CONTROL 110-112
Advanced setup 113

fiYAMAHA

YAMAHA CORPORATION
P.O.Box 1, Hamamalsu, Japan
g '03.03

Page 2

DSP-AX563

3
Ln
9
n:
._
:1:
\
n
0
L0
>.
><
n:

RX-V563/HTR-6150/DSP-AX563

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked at and WALL EQUIPMENT TESTER 0R
OUTLET UNDER TEST EQUIVALENT

must be replaced with pans having specifications equal to those

originally installed. ® :ID-

2. Leakage Current Measurement (For 120V Models Only) J_-
When service has been completed, it is imperative to verify INSULATING '
that all exposed conductive surfaces are properly insulated TABLE
from supply circuits.
0 Meter impedance should be equivalent to 1500 ohms shunted o Leakage current must not exceed 0.5mA.
by 0'1 SILF' 0 Be sure to test for leakage with the AC plug in both polarities.
For U model
Ea CAUTION

iAi" F3401, F3402: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME
TYPE 6A, 125V FUSE."

For C model
CAUTION
F3401, F3402: REPLACE WITH SAME TYPE 6A, 125V FUSE.

A'I'I'ENTION ,
F3401. F3402: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A,125V.

WARNING: CHEMICAL CONTENT NOTICE!
This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY
REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder
All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair
work.

- Sn + Ag + Cu (tin + silver + copper)
- Sn + Cu (tin + copper)
- Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure
to use a soldering iron suitable to each solder.
