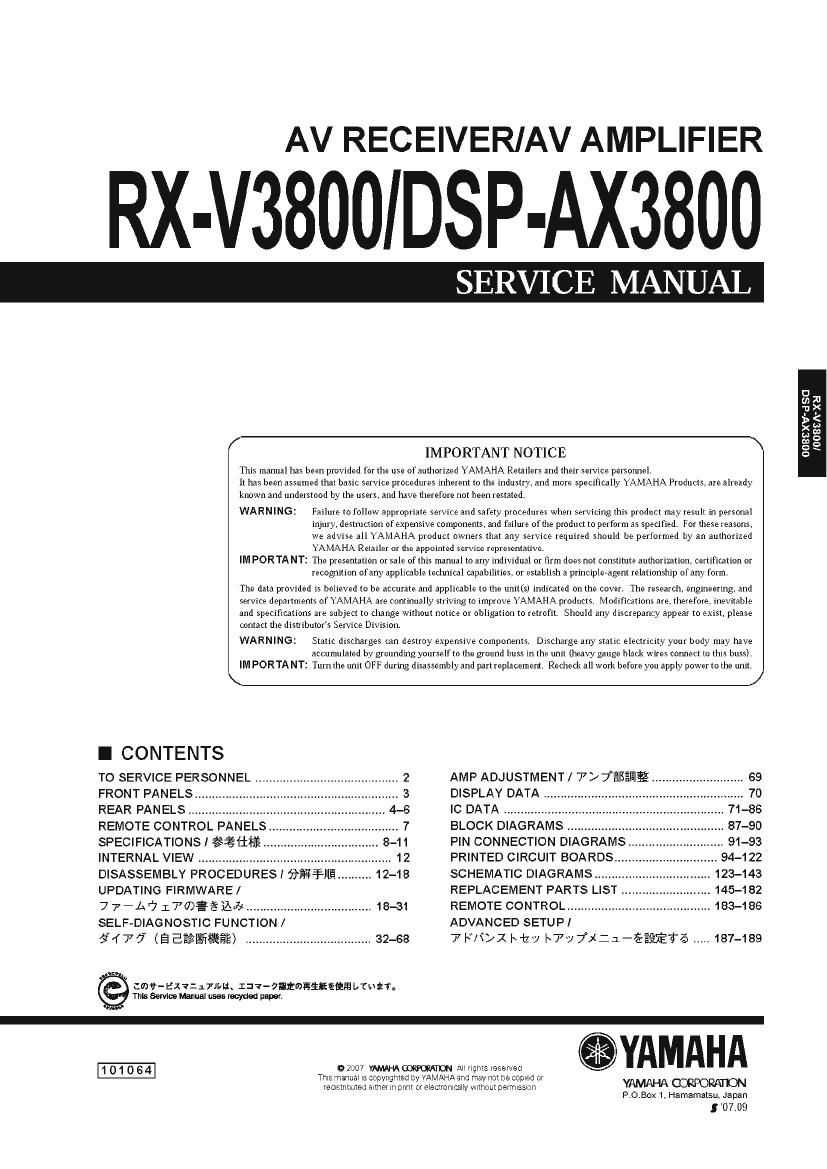

AV RECEIVER/AV AMPLIFIER

RX-V3800 DSP-AX3800

SERVICE MANUAL

/

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their serVice personnel.
It has been assumed thar basic service procedures inherent to the industry, and more specifimlly YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and injury, destniction of expensive components, and failure ofthe product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IM PORTANT: The presentation or sale of this manual to any individual or him doesnot constitute authorization, certification or
recognition ofany applimble technical mpabilities, or establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applimble to the unitts) indimted on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products Modification: are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

contact the distributor's Servtce Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IM PORTANT: Turn the unit OFF during disassembly and partreplacement. Recheck all work before you apply power to the unit.
