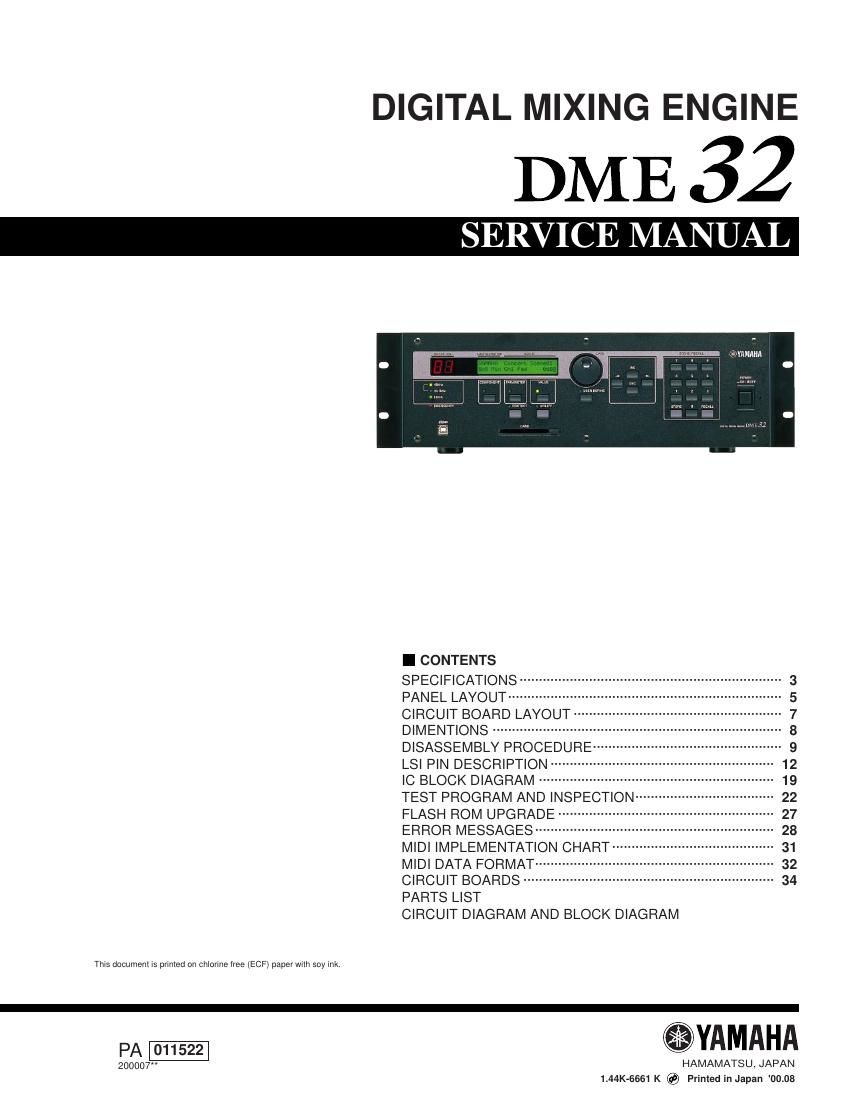

Yamaha dme32 digital mixing engine service manual
This is the 79 pages manual for yamaha dme32 digital mixing engine service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha dme32 digital mixing engine service manual (Ocr-read)
Page 1
DME32 2WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. LITHIUM BATTERY HANDLING This product uses a lithium battery for memory back-up. WARNING: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. Leave lithium battery replacement to qualified service personnel. Always replace with batteries of the same type. When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. Never solder directly to the cells. Perform the soldering as quickly as possible. Never reverse the battery polarities when installing. Do not short the batteries. Do not attempt to recharge these batteries. Do not disassemble the batteries. Never heat batteries or throw them into fire. ADVARSEL!Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. VARNINGExplosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. VAROITUSParisto voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. The following information complies with Dutch Official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES. - Please refer to the diassembly procedure for the removal of Back-up Battery. - Leest u voor het verwijderen van de backup batterij deze beschrijving.
Page 2
SPECIFICATIONS DME32 3 Internal Sampling frequency External Signal delay Configuration Memories Scene Display Scene No. Wordclock IndicatorsEmergency mode Others PC Card slot Power requirements Power consumption Dimensions (W x H x D) Weight Free-air operating temperature Storage temperature Power cord length Supplied accessories Options48 kHz 39.69–50.88 kHz 0.21 ms (direct cable from input 1 to output 1, fs = 48 kHz) 2 (A, B) 99 per configuration 24-character x 2 line LCD, with backlight 7-segment LED x 2 48 kHz, 44.1 kHz, LOCK EMERGENCY COMPONENT,PARAMETER,VALUE, PROTECT,UTILITY, USER DEFINE PCMCIA Type II memory cards U.S.A. & Canada 120 V AC, 60 Hz Europe 230 V AC, 50 Hz 40 W 480 x 141.5 x 375.2 mm (18.9 x 5.6 x 14.8 inches), 3U 9.5 kg (21 lbs) 10 ˚C to 35 ˚C (50 ˚F to 95 ˚F) -20 ˚C to 60 ˚C (-4 ˚F to 140 ˚F) 2.5 m Power cord, CD-ROM (DME Manager program), 9-pin D-sub crossed cable, 16-pin Euro-block plug, Owners Manual MY8, MY4 mini YGDAI I/O cards IMPORTANT NOTICE FOR THE UNITED KINGDOM Connecting the Plug and Cord IMPORTANT. The wires in this main lead are coloured in accordance with the following code: BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the main lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The BLUE wire must be connected to the terminal that is marked with the letter N (or coloured BLACK). The BROWN wire must be connected to the terminal that is marked with the letter L (or coloured RED). Be certain that neither core is connected to the earth terminal of the three pin plug. Control I/O Connection WORD CLOCK INPUT WORD CLOCK OUTPUT MIDI IN MIDI OUT CASCADE IN CASCADE OUT USB PC CONTROL COM GPI IN (x16) GPI OUT (x16) GPI +V (x16) SLOT (x4) Format - - MIDI MIDI - - USB - - - - - mini YGDAILevel TTL 75 W(ON/OFF) TTL - - - - - RS232C/RS422 RS422 0–5 V 0–5 V 6 mA max -Connector BNC BNC 5-pin DIN 5-pin DIN Half pitch 50-pin Half pitch 50-pin USB Type B male 9-pin D-sub 9-pin D-sub Euro block Euro block Euro block -
