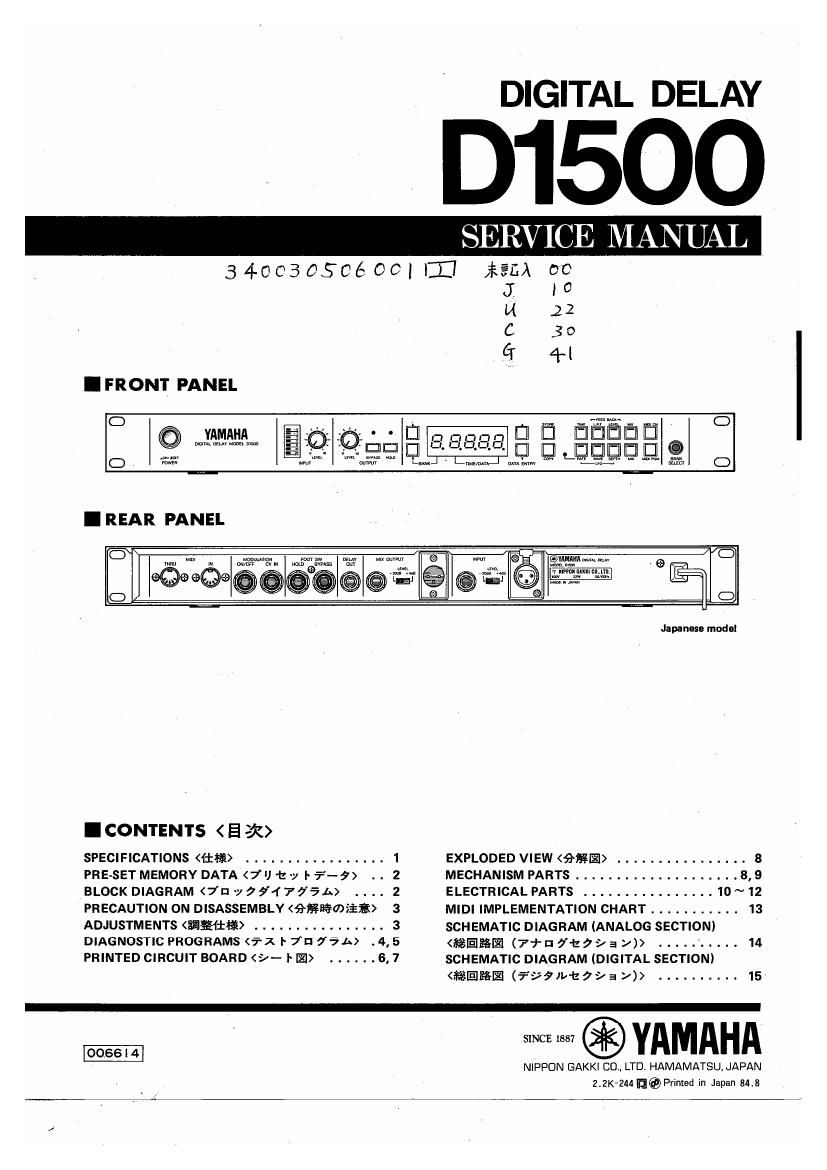

Yamaha d 1500

Page 2

l SPECIFICATIONS (11%)

Delay Time

0~1023 msec/1 msec step

Frequency Response

Direct 20 HZ~ZO KHz+ 1, -2 dB
Delay 20 Hz~18 KHz+3, -3dB

THD Direct 0.008%
Delay 008%
Dynamic RanJL 90 dB
Input '
Level Nominal + 4 dB/-20 dB
Impedance 20 Kohms , '
Form. Transless balanced input (XLR type and
Phone)
Number 1 XLR type and 1 Phone Jack
Mix. Output
level Nominal + 4 dBl-ZO dB
Impedance 100 ohms
Form. Transless balanced output (XLFI type
' and Phone)
Number 1,XLFI type and 1 Phone Jack
Delay Output
Level Nominal + 4 dB
Impedance 100 ohms
Forn-I. Unbalanced output (Phone)
Number One
LFO Modulation
Depth 0~100%
Rate 0.1 ~15 HZ
Wave Sine and Square

MIDI Function

Bank Number

Buttery Backup Data

Change bank number, Receive MIDI
channel and program number

Total 17 programs (0 to 9 and A, b, C,
d, E, F, P)

6 presets programs by Factory (A to F)
All bank data

Bank number and Working data

MIDI channel number

MIDI program and bank data

Indicatols
Bank Number 7 segment LED X 1
Data 7 segment LED X 4
Headroom 7 point LEDs array (-20, -10, A6,
-3, 0, 3, 6)
Bypass LED
Hold LED
LFO Rate LED
Function Kay LED
Controls and Swltchs

(Front Panel)

(Rear Panel)
Terminals and Jacks

(From Panel)
(Rear Panel)

Power Requirements

Input Volume, Output Volume, Bypass.
Switch, Hold Switch, Bank in-
crement/decrement Key, Data in,
crement/decrement Key, Store Kev,
Copy Key, Time Key, Feedback LPF
Key, Feedback Level Key. Phase Invert Key,
LFO Rate Key, LFO Wave Key, LFO
Depth Kay, Mix Key, MIDI Channel Key,
MIDI Program Key

Input Level Switch

Output Level Switch

Bank Select Foot Switch
MIDI Input (5 pin DIN connector)
MIDI Thru. (same)
Modulation on/off Foot Switch
CV IN (0 ~ 10 volts)
Hold Foot Switch
Bypass Foot Switch
Japanese Model : AC 100 Volts 50/60 Hz
U.S. and Canadian Models : AC 120 Volts 60 Hz
General Model 1 AC 110~120.
' 220~240 Volts 50/60 Hz

Power Consumption

Japanese Model : 22 Watts
Other Models : 26 Watts

Dimension Standard 19" rack mount type
480 (W)X368.5 (D)X45.2 (H) mm
(18-29/32X 14-1/2"X 1-25/32")
Weight 52 Kg (11 lbs 7 oz)

e 0 dBm 129 referenced to 0.775 volts RMS.
0 Specifications subject to change without notice.

OOdB=0,775Vr.mrs

eritisnfilflm Efilfimtbfififi ( EETé : tiff) 21',

DIMENSIONS (Tl'ifi )

437(1771/4") :3 39.6»1/2)
m.\
0:
3 r a
9 Q
3 '.° 9*
i2 E 2
- .n .
v, u; 3
O (D (\I
v if)
m
=3 e
m N, _
:63 a F
L_Ill 9
q:
2% 45.2
; (I-25/32")
c) C

52.5 i

375(I4 - 3/4")

iZ-I/E")

480(18- 7/8")
