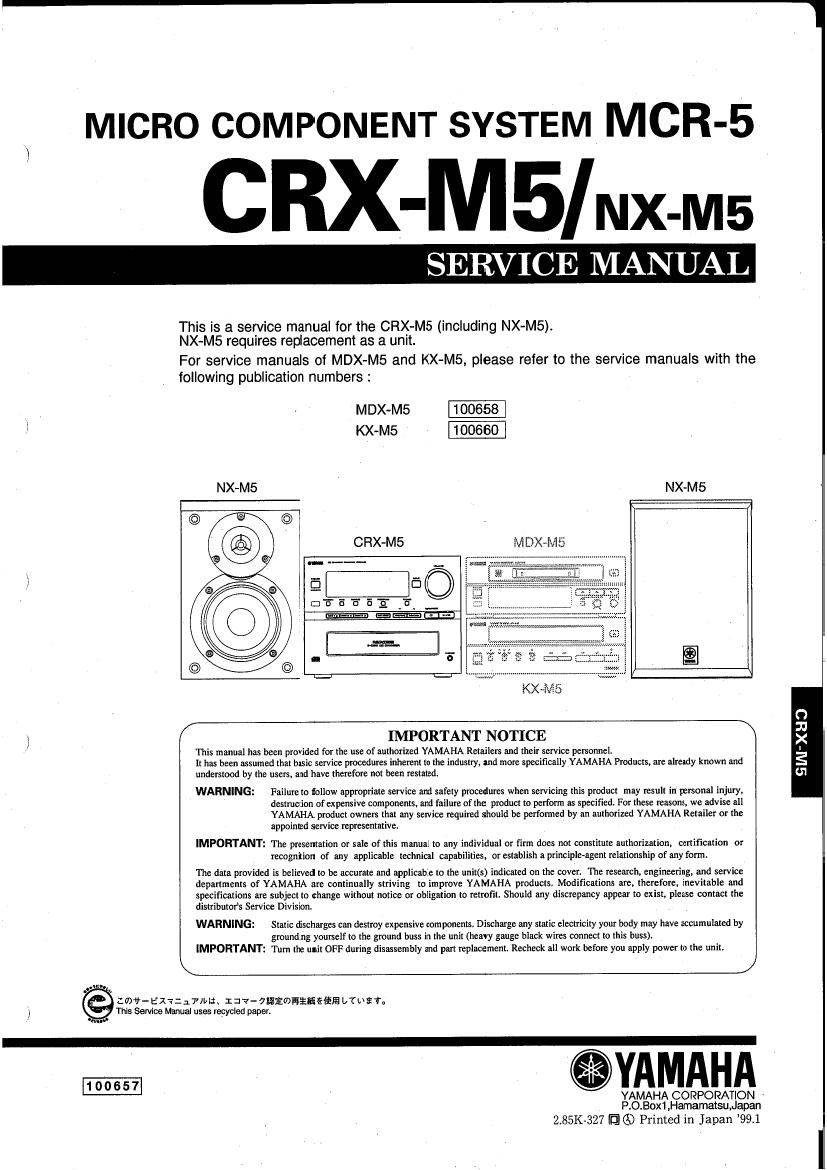

Page 1

MICRO COMPONENT SYSTEM MGR-5

RX-M5Inxnt5

SERVICE MANUAL

This is a service manual for the CRX~M5 (including NX-M5).
NX-M5 requires replacement as a unit.

For service manuals of MDX-M5 and KX-M5, please refer to the service manuals with the
following publication numbers :

, MDX-M5 100658
' KX-M5 100660

NX-M5

CRX-M5 3v? DX-Mé}

_ """" ow memes

KX r-iJs :3
Q
i IMPORTANT NOTICE x
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. '
It hm been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and E
understood by the users, and have therefore not been restated. O1

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specified. For these reasons. we advise all
YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the
appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities. or establish a principle-agent relationship of any form.

The data provided is believed to be accurate md applicable to the unitts) indicated on the cover. The research, engineering, and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore. inevitable and
specifications are subject to change without notice or obligation to retrofiL Should any discrepancy appear to exist, please contact the
distributors Service Division.

WARNING: Static discharges can destroy expensive components Discharge my static electricity your body may have accumulated by
grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

k

. t
@zme-Exv:swm. :zv-afiiwfiifiwflibwin

This Service Manual uses recycled paperr

' fiYAMAHA

YAMAHA CORPORATION '
P.O.Box1 .Hamamatsu,Japan

2.85K-327 {EGO Printed in Japan 99]

Page 2

-+

CRX-M5

CRX-M5

I CONTENTS

T0 SERVICE PERSONNEL .................. 1~2
FRONT PANEL/REAR PANEL ....... . .3
SPECIFICATIONS ................. . . . . 4
DISASSEMBLY PROCEDURES ...... . . . .5~6
CD TROUBLESHOOTING ................... 7~13
TUNER ADJUSTMENTS ...................... 14
IC DATA ......................... . . 15~19
BLOCK DIAGRAM ........................ 20~21

I TO SERVICE PERSONNEL

1. Critical Components information.
Components having special characteristics are marked and
must be replaced with parts having specifications equal to
those originally installed.

2. Leakage Current Measurement (For 120V Models Only).
When service has been completed, it is imperative to verily
that all exposed conductive surfaces are properly insulated
from supply circuits.

0 Meter impedance should be equivalent to 1500 ohm shunted
by 0.15uF.

PRINTED CIRCUIT BOARD ................ 22~29

DISPLAY DATA ............................. 30

PIN CONNECTION DIAGRAM ................. 31

SCHEMATIC DIAGRAM ................... 32~34
PARTS LIST ............................. 35~51

REMOVAL PROCEDURE OF CD MECHANISM UNIT ..... 52~55

GREASE APPLICATION DIAGRAM .......... 56~61
AC LEAKAGE

WALL EQUIPMENT TESTER OR

OUTLET UNDER TEST EQUIVALENT

OED-

J;

INSULATING
TABLE

. Leakage current must not exceed 0.5mAt

0 Be sure to test for leakage with the AC plug in both
polarities.

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY

QUALIFIED SERVICE PERSONNEL.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs a lasert Therefore, be sure to carefully follow the instructions below when servicing .

1. Laser Diode Properties
0 Material : GaAs
o Wavelength : 760 nm - 800 nm
0 Emission Duration : Continuous
0 Laser Output : max. 40 uW

* This output is the value measured at a distance of about 200 mm from the objective lens surface on the

Optical Pick~up Block.

2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic
and/or plastic (where applicable) components may also contain traces of chemicals found by the
California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects

or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH

FOR ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale

solder fumes or expose eyes to solder/flux vapor!

if you come in contact with solder or components located inside the enclosure of this product, wash

your hands before handling food.
