Yamaha crx m170

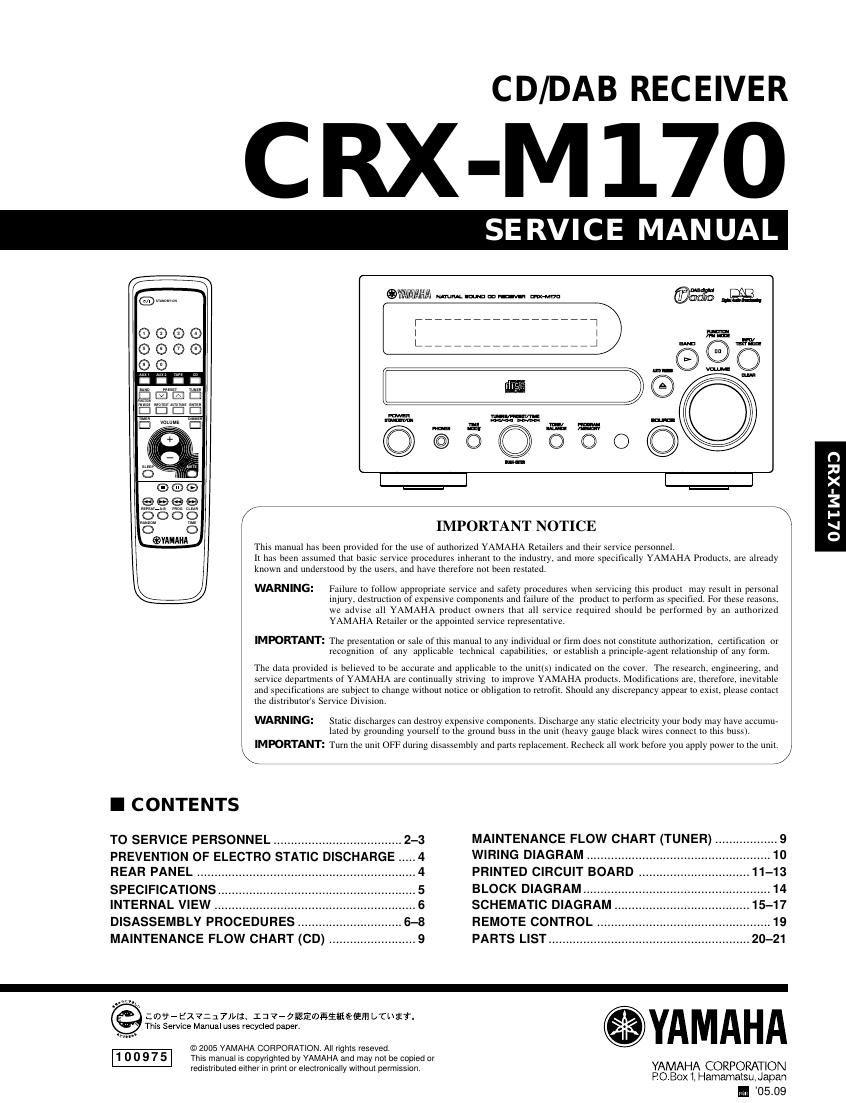

This is the 21 pages manual for yamaha crx m170.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha crx m170 (Ocr-read)
Page 1
CRX-M170 2 CRX-M170 TO SERVICE PERSONNEL WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. About Lead Free Solder The P.C.B.s installed in this unit are soldered using the following solder. 4 * % & " 4 * % & # . " * / 1 $ # - F B E ' S F F 4 P M E F S - F B E ' S F F 4 P M E F S 1 0 8 & 3 1 $ #
Page 2
CRX-M170 CRX-M170 3 Laser Emitting conditions: 1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the "ON" position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick-up unit. Do not attempt any servicing during this period! If no disc is detected, the laser will stop emitting the beam. When a disc is set, you will not be exposed to any laser emissions. 2) The laser power level can be adjusted with the VR on the pick-up PWB. However, this level has been set by the factory prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual. Adjustment of this control can increase the laser emission level from the device. Laser Diode Properties Material : GaAlAs Wavelength : 789 nm Emission Duration : Continuous Laser Output : max. 44.6 µW* * This output is the value measured at a distance of about 200 mm from the objective lens surface on the Optical Pick-up Block. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER-SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING! : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. Optical Pick-up ADVARSEL - USYNLIG LASERSTR≈LING VED ≈BNING, N≈R SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDG≈ UDS∆TTELSE FOR STR≈KING. VAROITUS! - SUOJAKOTEL OA EI SAA AVATA. LAITE SISƒLTƒƒ LASERDIODIN, JOKA LƒHETTƒƒ (NƒKYMƒT÷NTƒ) SILMILLE VAARALLISTA LASERSƒTEILYƒ. ADVARSEL - USYNLING LASERBESTR≈LING N≈R DENNE DELEN ER ≈PEN OG SIKKERHETSSPERREN ER UTK OBLET. UNNG≈ UTSETTELSE FOR STR≈LING. CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. VORSICHT! UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEL GE÷FFNET UND WENN SICHERHEITSVER- RIEGELUNG ‹BERBR‹CKT IST . NICHT DEM STRAHL AUSSETZEN!. VARNING - OSYNLING LASERSTR≈LNING NƒR DENNA DEL ƒR ÷PPNAD OCH SPƒRR ƒR URK OPPLAD. STR≈LEN ƒR FARLIG. MODEL NO. RDX-E700 CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT PRODUIT LASER DE CLASSE 1
