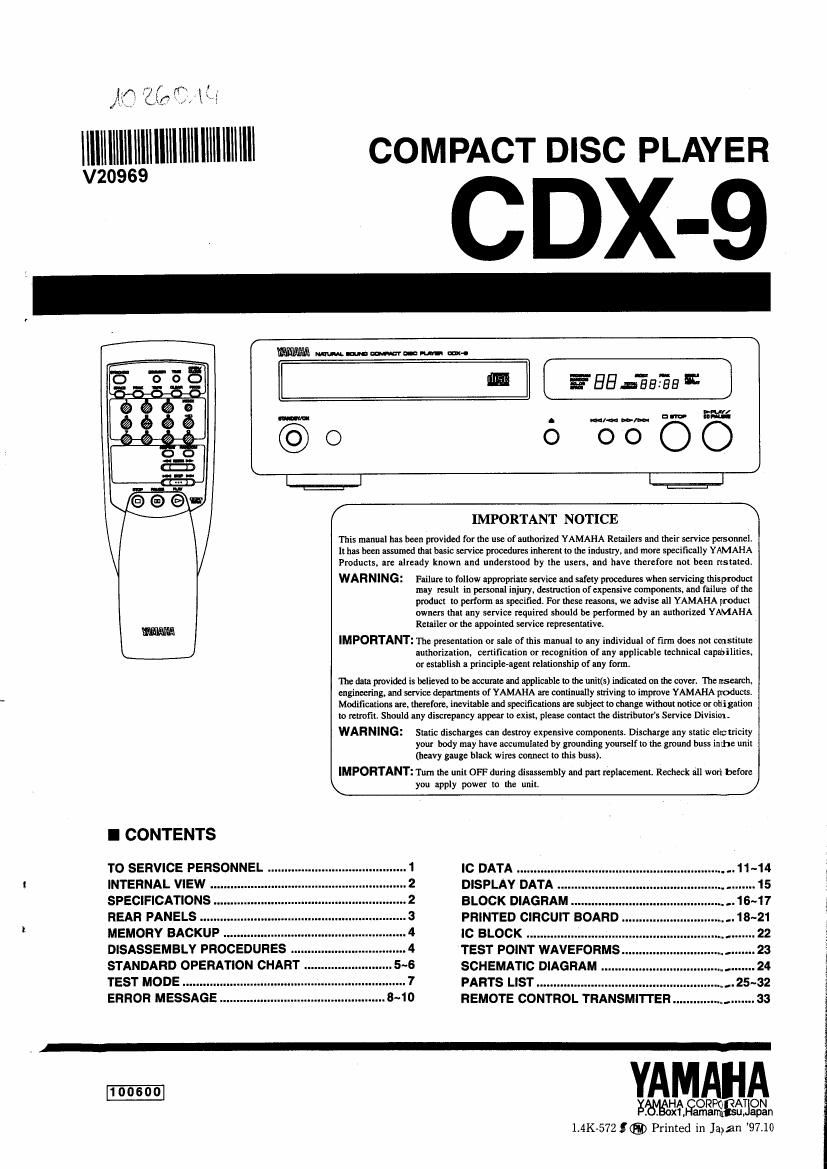

llIIllIlIIIIIIIIlIIIIlllllllllllllllllll COMPACT DISC PLAYER

. CDX-9

"@"o (3 3300
L.=_I Leg-I

/ IMPORTANT NOTICE ,

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA
Products. are already known and understood by the users. and have therefore not been stated.

WARNING: Failure to follow appropriate service and safety procedures when servicing tbisproduct
may result in personal injury, destruction of expensive components. and failure of the
product to perform as specified For these reasons. we advise all YAMAHA product
owners that any service required should be performed by an authorized YAMAHA
Reniler or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual of firm does not constitute
authorization, certification or recognition of any applicable technical capabilities,
or establish a principle-agent relationship of any form.

The data provided is believed to be acetate and applicable to the unit(s) indicated on the cover. Theirsetuch,
engineering, and service departments uf YAMAHA are continually striving to improve YAMAHA poducts.
Modifications are. therefore inevitable and specifications are subject to change without notice or attigution
to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Divisim.

WARNING: Static discharges can destmy expensive components. Discharge any static electricity
your body m-y have accumulated by grounding yourself to the ground buss inthe unit
(heavy gauge black wires connect to this buss)

IMPORTANT: Turn the unit on: during disassembly and pan replacement Recheck all wort before

\ you apply power to the unit. /

I CONTENTS

TO SERVICE PERSONNEL .1 IC DATA .......... ;
INTERNAL VIEW . 2 DISPLAY DATA .. ;
SPECIFICATIONS .. - 2 BLOCK DIAGRAM .

REAR PANELS .. - 3 PRINTED CIRCUIT BOARD

MEMORY BACKUP .. .4 IC BLOCK ............................

DISASSEMBLY PROCEDURES .4 TEST POINT WAVEFOFIMS

STANDARD OPERATION CHART .. 5~6 SCHEMATIC DIAGRAM

TEST MODE . . 7 PARTS LIST .

ERROR MESSAGE ..8~10 REMOTE CONTROL TRANSMITTER ..

imitating/339s

1.419572 s® Printed in Japflll 97.10

Page 2

CDX-9

I TO SERVICE PERSONNEL

. AC LEAKAGE
1. Critical Components Information. WALL EQUIPMENT TESTER OFl
Components having special characteristics are marked and OUTLEI' UNDER TEST EQUIVALENT
must be replaced with pans havlng specifications equal to
those originally installed. ® :3..-
2. Leakage Current Measurement (For 120V Models Only).
When service has been completed, it is imperative to verity E =
that all exposed conductive surtaces are properly insulated IEASBLLHEATWG
from supply circuits.
0 Meter impedance should be equivalent to 1500 ohm shumed 0 Leakage current must not exceed 0.5mA.
by 0.15uF.

0 Be sure to test for leakage with the AC plug in both
polarities.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs a laser. Therefore, be sure to carefully
follow the instructions below when servicing .

1. Laser Diode Properties 2. When checking the laser diode emission, keep your
0 Material - : GaAlAs eyes more than 30 cm away from the objective lens.
0 Wavelength 2780 nm
0 Emission Duration: Continuous
0 Laser Output : max. 44.6 uW"

This output is the value measured at a distance
ol about 200 mm from the objective lens surface
on the Optical Pick-up Block.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. in addition, other electrical/electronic
and/or plastic (where applicable) components may also contain traces of chemicals found by the
California Health and Weltare Agency (and possibly other entities) to cause cancer and/or birth defects
or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR
MOUTH FOR ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale
solder fumes or expose eyes to solder/flux vapor!

it you come in contact with solder or components located inside the enclosure of this product, wash
your hands before handling food.
