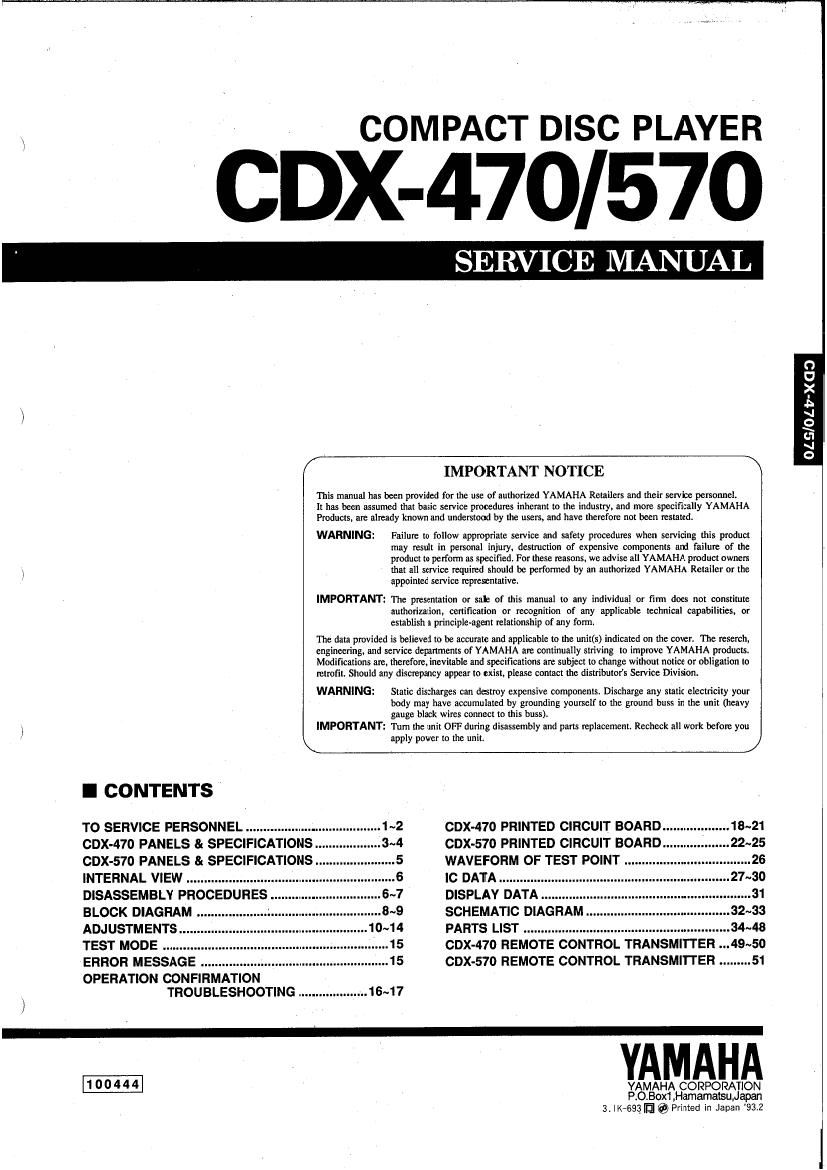

Page 1
COMPACT DISC PLAYER
CDX-470/ 570
\
/
/ IMPORTANT NOTICE \
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inhcmnt to the industry, and more specifically YAMAHA
Products, are already known and understood by the users. and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury, destruction of expensive components and failure of the
product to perform as specified, For these reasons, we advise all YAMAHA product owners
that all service required should be performed by an authorized YAMAHA Retailer or the
appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute
authorization, certification or recognition of any applicable technical capabilities. or
establish a principleagent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The reserch,
engineering. and service depanments of YAMAHA are continually striving Io improve YAMAHA products.
Modifications are. therefore. inevitable and specifications are subject to change without notice or obligation to
retrofiL Should any discrepancy appear to exist. please contact the distributor's Service Division.
WAmING: Static discharges can destroy expensive components. Discharge any static electricity your
body may have accumulated by grounding yourself to the ground buss in the unit (heavy
gauge black wires connect to this buss).
) IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Rccheck all work before you
/ \ apply power to the unit. /
TO SERVICE PERSONNEL ................... CDX-470 PRINTED CIRCUIT BOARD.
CDXv470 PANELS 8r SPECIFICATIONS.. COX-570 PRINTED CIRCUIT BOARD.
CDX-570 PANELS & SPECIFICATIONS.. WAVEFORM OF TEST POINT
INTERNAL VIEW IC DATA. ..................................
DISASSEMBLY PROCEDURES .. DISPLAY DATA .............
BLOCK DIAGRAM . .................. SCHEMATIC DIAGRAM
ADJUSTMENTS. PARTS LIST ....... ................................................ 3448
TEST MODE CDX-470 REMOTE CONTROL TRANSMITTER ...49~50
ERROR MESSAGE ...................................................... 15 COX-570 REMOTE CONTROL TRANSMITTER . .51
OPERATION CONFIRMATION
> TROUBLESHOOTING ........ ....... 16-47
YAMAHA
1 0 0 4 4 4 YAMAHA CORPORATION
P. O Boxi, Hamamatqu open
3. lK ssslfi © Printed in Japan 93 2
OLE/OLVXGO
Page 2
A cox-470/57o
CDX-47W570
CDX 470
CDX-570
I TO SERVICE PERSONNEL
1. Critical Components Information. . AC LEAKAGE
Components havingspeciai characteristics are marked and WALL EQUIPMENT TESTER on
must be replaced with parts having specifications equal to OUTLET UNDER TEST EQUIVALENT
those originally installed.
2. Leakage Current Measurement (For 1.20V Models Only). ® :ID
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated =
from supply circuits. lNSfilflNG
0 Meter impedance should be equivalent to 1500 ohm shunted
by 0.15uF. ,
c Leakage current must not exceed 0.5mA.
0 Be sure to test for leakage with the AC plug in both
polarities.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs a laser. Therefore, he sure to carefulty
follow the instructions below when servicing .
1. Laser Diode Properties 2. When checking the laser diode emission, keep your
0 Material : GaAlAs eyes more than 30 cm away from the objective lens.
0 Wavelength : 780 nm
0 Emission Duration : Continuous
0 Laser Output : max. 44.6 uW"
" This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the Optical Pick-up Block.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic
and/or plastic (where applicable) components may also contain traces of chemicals found by the
California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects
or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH
FOR ANY REASON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your 'skinl When soldering, do not inhale
solder fumes or expose eyes to solder/flux vapor!
If you come in contact With solder or components located inside the enclosure of this product, wash your
hands before handling food.
