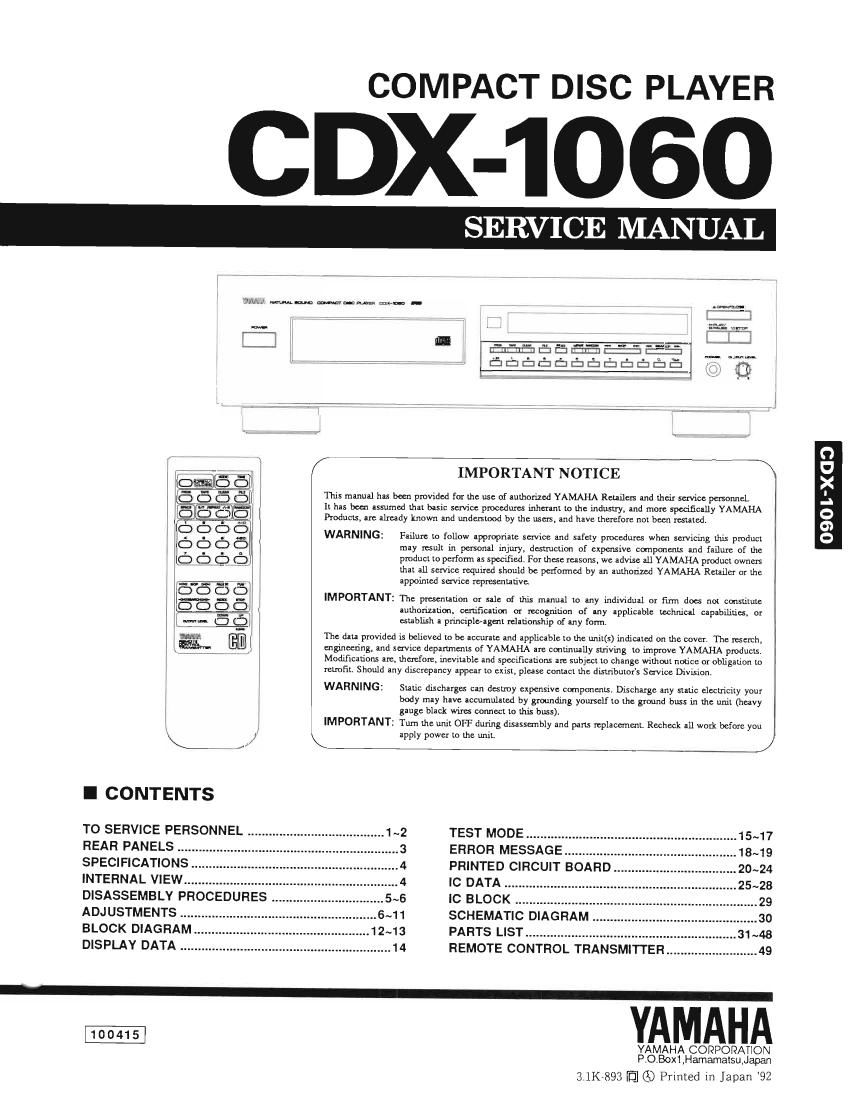

Page 1

COMPACT DISC PLAYER

CDX-1060

SERVICE MANUAL

_-
i III
I7 , l
7 : 7 l / IMPORTANT NOTICE N
I - E) 5 fl This minim has been pmn'ded for me use of authorized YAMAHA Retailers and ilieir scrviee pummel.
fwfiar] It has boar ussumed um besic service procedures Inhcum lo the indum'y. and more specifically YAMAHA
[Q 0 gig Products. are already known and undersnxxl by me users, and have therefore noi been mined.
9 O C.) E? WARNING: Failure Io follow .pprnpriaie service and safety procedures when servicing this pmduci I
O C) C) C may result in pexsoml inJul-y, destrucuon of expensive components ind failure of Lhe
(i) (5 ('3 (3 pmducl lo perform as specified. For iliese reasons, we advise all YAMAHA pmducl owners
, uni all service required should bc pctfoxmad by In authorizad YAMAHA Reuiler or Lhc
,_ appoinred servicc mpmcnudve.
. .. .. .. ..
l... 9 91 I IMPORTANT: The prcscnuljon or sale of mix mmual m any individual or firm does no( consilzuie
lQ 0;) Oh lulhonzaLim. cem'l'ieenen m magnilion 01' my ipplicable technical capabilities. or
I .5, 70 l I esnblisli . principIe-lgml relau'onship or any form l
Mr [BIB The ma provided is believed to be mum and applicable to me mm) indicated on die cover. The much, I
. m". , engineering, and service depamnmu or YAMAHA am continually suivirig To improve YAMAHA producu, l
Modifications are, inerefme, Ineviiable and spedficxfiom are subject To change wimoui notice or obIl'galjon in l
rumfil. Should any discrepancy appear in exisl. please coma in: disu-ibuiors Sui/ice Division.
WARNING: Slau'c discha a can destroy ex sive com ems, Dischar e my SIIUC eleeiricny your
rs pm 9% a
body may hlvc .ccnrnulml by grounding yourself in me ground buss in ine uni: (heavy
gauge black wires connect m this buss)
I IMPORTANT: Tum lhc uni! OFF during disassernbly and pans mpIaceme-nl. Rechecl all work befon: you
i

71/ \ apply powex w the will , 77 WiJ

I CONTENTS

TO SERVICE PERSONNEL TEST MODE ..........

REAR PANELS .................. ERROR MESSAGE 18~19
SPECIFICATIONS .. PRINTED CIRCUIT BOARD . 20~24
INTERNAL VIEW.... IC DATA ............. 25~28
DISASSEMBLY PROCEDURES . IC BLOCK .......... ..29
ADJUSTMENTS ........................... SCHEMATIC DIAGRAM . ...30
BLOCK DIAGRAM. PARTS LIST ................ 31~48
DISPLAY DATA ..... REMOTE CONTROL TRANSMITTE .49

1 O 0 41 5 l A
YAMAHA CORPORATION
PYOBoxLHamamatquapan

371K893 {le Q0 Printed in Japan 92

090 l'XGO

Page 2

CDX-1 060

I TO SERVICE PERSONNEL

1. Critical Components Information.
Components having special characteristics are marked and
must be replaced with parts having specifications equal to
those originally installed.

2. Leakage Current Measurement (For 120V Models Only).
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.

0 Meter impedance should be equivalent to 1500 ohm shunted
by 0.15pF.

o Leakage current must not exceed 0,5mA.

0 Be sure to test for leakage with the AC plug in both
polarities.

AC LEAKAGE
WALL EQUIPMENT TESTER on
OUTLET UNDER TEST EQUIVALENT
INSULATING :
TABLE

0 POLARIZATION (U, C models)
This CD player product is equipped with a polarized alternat-
ing-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way.
This is a safety feature.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs a laser. Therefore, be sure to carefully
follow the instructions below when servicing.

1. Laser Diode Properties
0 Material : GaAIAs
o Wavelength : 780 nm
0 Emission Duration : Continuous
0 Laser Output : max. 44.6 LLW'

" This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the Optical Pick-up Block.

2. When checking the laser diode emission, keep your
eyes more than 30 cm away from the objective lens.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic
and/or plastic (where applicable) components may also contain traces of chemicals found by the
California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects
or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH
FOR ANY REASON WHATSOEVER!

Avoid prolonged. unprotected contact between solder and your skin! When soldering, do not inhale
solder fumes or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your
hands before handling lood.
