Yamaha cdrd651

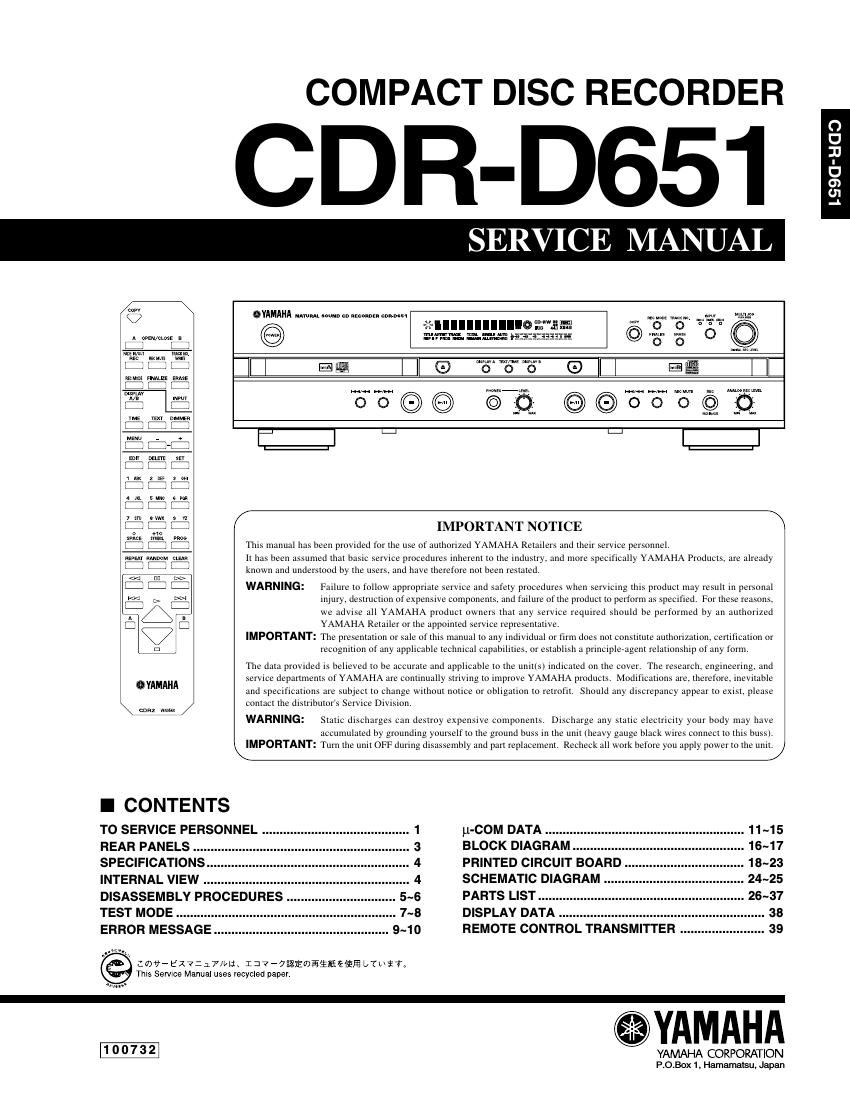

This is the 36 pages manual for yamaha cdrd651.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha cdrd651 (Ocr-read)
Page 1
CDR-D651 1 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not state the laser beam at any time. 2) Do not attempt readjustment, disassemble or repair of the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Emitting conditions: 1) When the Top Cover is removed, and POWER SW is turned to the "ON" position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5 - 10 sec.) the laser may radiate through the lens of the laser pick-up unit. Do not attempt any servicing during this period! If no disc is detected, the laser will stop emitting the beam. When a disc is set, you will not be exposed to any laser emissions. 2) The laser power level can be adjust with VR on pick-up PWB, however, this level has been set by the factory prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual. Adjustment of this control can increase the laser emission level from the device.
Page 2
CDR-D651 ANALOG DIGITAL LINE IN INLINE OUT OUT 43 L R L R REC PLAYOPTICAL B, G, R modelsA, B, G, R models 2 PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing . 1. Laser Diode Properties CD (Drive A) Material : GaAlAs Wavelength : 790 nm Emission Duration : Continuous Laser Output : max. 180 µW* ANSI Class : Class 1 CDR (Drive B) Material : GaAlAs Wavelength : 790 nm Emission Duration : Pulse Laser Output : Write mode: max. 10 mW* (Duty 50%) ANSI Class : Class 2 * This output is the value measured at a distance of about 200 mm from the objective lens surface on the Optical Pick-up Block.2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER-SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING! : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
