Yamaha cdc 775

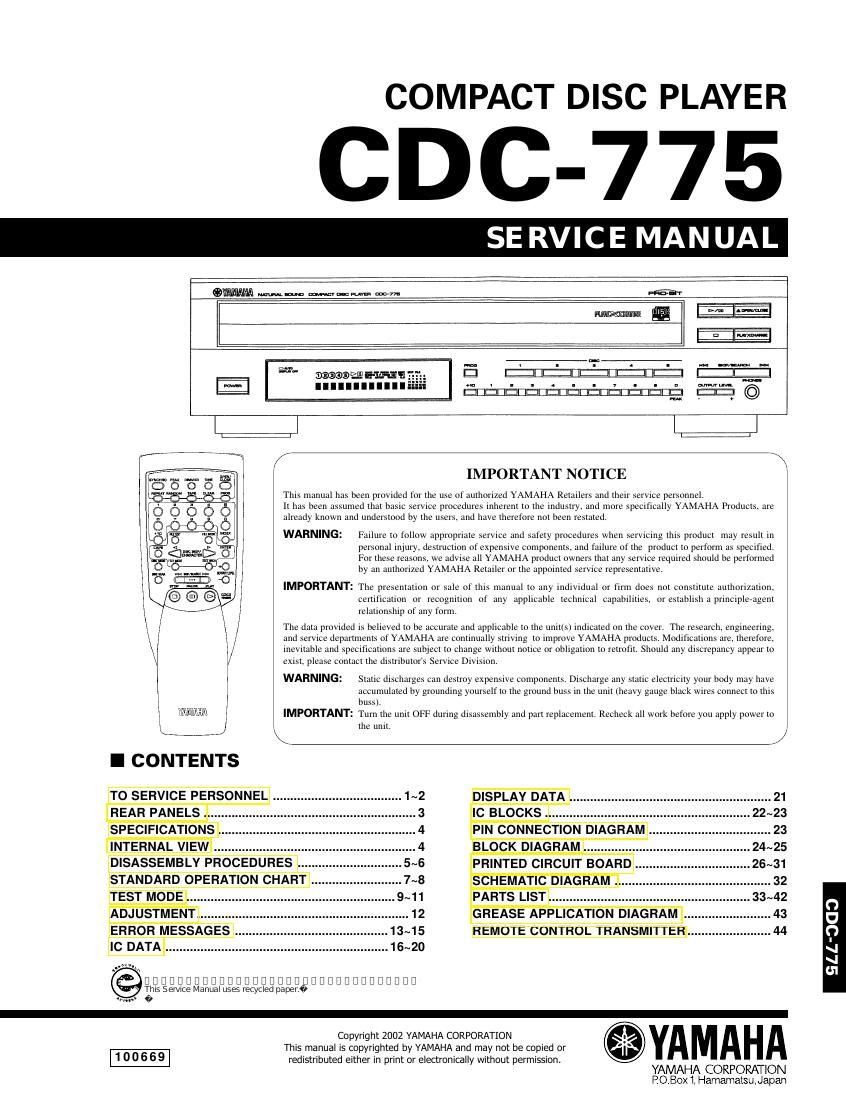

This is the 41 pages manual for yamaha cdc 775.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha cdc 775 (Ocr-read)
Page 1
CDC-775 CDC-775 1. Critical Components Information. Components having special characteristics are marked and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only). When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. l Meter impedance should be equivalent to 1500 ohm shunted by 0.15mF. l Leakage current must not exceed 0.5mA. l Be sure to test for leakage with the AC plug in both polarities. EQUIPMENT UNDER TEST WALL OUTLET INSULATING TABLE AC LEAKAGE TESTER OR EQUIVALENT < CAUTION:USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing . 1. Laser Diode Properties l Material : GaAlAs l Wavelength : 780 nm l Emission Duration : Continuous l Laser Output : max. 44.6 mW* * This output is the value measured at a distance of about 200 mm from the objective lens surface on the Optical Pick-up Block.2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. n TO SERVICE PERSONNEL 1
Page 2
CDC-775 CDC-775 2 w R, G models English À THIS PRINTING (SEE POSITION SHOWN IN THE ILLUSTRATION) INFORMS THE USER THAT THE APPARATUS CONTAINS A LASER COMPONENT. Á THIS LABEL (SEE POSITION SHOWN IN THE ILLUSTRATION) WARNS THAT ANY FURTHER PROCEDURE WILL BRING THE USER INTO EXPOSURE WITH THE LASER BEAM. CAUTION : USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Swedish À DENNA M€RKNING (SE FIGUR) UPPLYSER OM ATT DET I APPARATEN INGR EN LASERKOMPONENT AV TYP KLASS 1. Á VARNINGSM€RKNING (SE FIGUR) F…R STRLNING. INGREPP I APPARATEN B…R ENDAST F…RETAGAS AV FACKMAN MED KNNEDOM OM LASER. APPARATEN INNEHLLER EN LASERKOMPONENT SOM AVGER STRLNING …VERSTIGANDE GR€NSEN F…R LASERKLASS 1. VARNING : OSYNLIG LASERSTRLNING N€R DENNA DEL €R …PPNAD : BETRAKTA EJ STRLEN. Danish À DETTE M®RKAT ER ANBRAGT SOM VIST I ILLUSTRATIONEN FOR AT ADVARE BRUGEREN OM AT AP- PARATET INDEHOLDER EN LASERKOMPONENT. Á DETTE M®RKAT OM LASEREN ER ANBRAGT P APPARATET SOM EN OPLYSNING OM AT APPARATET INDEHOLDER ET LASERKOMPONENT. ADVARSEL :INDGREB BOR KUN FORETAGES AF EN FAGMAND DA DER ER RISIKO FOR RADIOAKTIV STRLING. ADVARSEL : USYNLIG LASERSTRLING VED BNING. UNDG UDSAETTELSE FOR STRLING. Finnish VARO! : AVATTAESSA OLET ALTTIINA N€KYM€TT…M€LLE LASERS€TEILYLLE. €L€ KATSO S€TEESEEN. q R, G models CLASS 1 LASER PRODUCT
