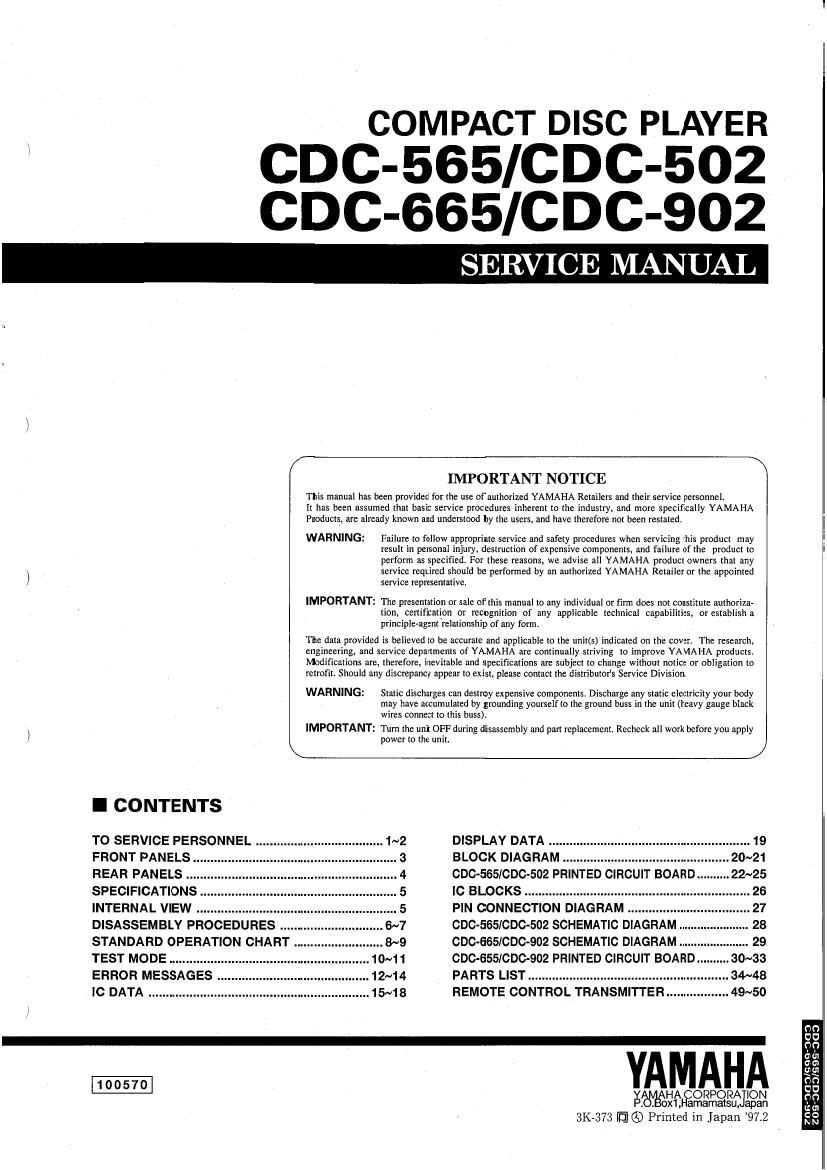

COMPACT DISC PLAYER

CDC- 565/CDC- 502
CDC-665ICDC-902

SERV CE MANU

/
IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry. and more specifically YAMAHA
Products, are already known and understood by the users, and have therefore not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may
result in personal injury, destruction of expensive components, and failure of the product to
perform as specified. For these reasons. we advise all YAMAHA product owners that any

3 service required should be performer! by an authorized YAMAHA Retailer or the appointed

service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authoriza-
tion, certification or recognition of any applicable technical capabilities, or establish a
principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research,
engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products.
Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to
retrofit, Should any discrepancy appear to exist, please contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components Discharge any static electricity your body
may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black
wires connect to this buss;

IMPORTANT: Turn the unit OFF during disassembly and part replacement, Recheck all work before you apply

) power to the unit.

\ /

I CONTENTS

TO SERVICE PERSONNEL
FRONT PANELS .
REAR PANELS
SPECIFICATIONS
INTERNAL VIEW .
DISASSEMBLY PROCEDURES .,

STANDARD OPERATION CHART .

DISPLAY DATA
BLOCK DIAGRAM
CDC-565/CDG-502 PRINTED CIRCUIT BOARD
IC BLOCKS .
PIN CONNECTION DIAGRAM
CDC-565ICDC-502 SCHEMATIC DIAGRAM .
CDC-655lCDC-902 SCHEMATIC DIAGRAM .

. 20~21
. 22~25
. 26
. 27
28
29

TEST MODE .. CDC-655lCDG-902 PRINTED CIRCUIT BOARD . 30~33
ERROR MESSAGES . .. PARTS LIST ................................................ . 34~48
lC DATA ................................................................ 15~18 REMOTE CONTROL TRANSMITTER .................. 49~50

1 0 0570 Y
PMxi A|$ORP3RA lON
su apan
3K-373 [f1] 6) Printed in Japan 97.2

G
U
9
at
at
E
O
U
9
to
c
N

ZOE-OGD/EOS-DGO

Page 2

CDC-565ICDC-502/CDC-665ICDC-902
l
I

I TO SERVICE PERSONNEL

1. Critical Components lnlormation. WALL EQUIPMENT ¢Es$€i§A8§
Components havmg specual characteristics are marked and UNDER TEST EQUIVALENT

must be replaced with parts having specifications equal to OUTLET

those originally installed. ® I:

2. Leakage Current Measurement (For 120V Models Only). I-
When service has been completed. it is imperative to verify
that all exposed conductive surfaces are properly insulated INSULATING _
from supply circuits. TABLE

0 Meter impedance should be equivalent to 1500 ohm shunted
by 0.15uF.

o Leakage current must not exceed 0.5mA.
0 Be sure to test for leakage with the AC plug in both
polarities.

I
I CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.

l PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

I This set employs a laser. Therefore. be sure to carefully
follow the instructions below when servicing .

1, Laser Diode properties 2. When checking the laser diode emission, keep your
. Material ; GaAIAs eyes more than 30 cm away from the objective lens.
0 Wavelength : 780 nm
0 Emission Duration : Continuous
0 Laser Output : max. 44.6 pW

* This output is the value measured at a distance
of about 200 mm from the objective lens
surface on the Optical Pick-up Block.

WARNING: CHEMICAL CONTENT NOTICE!

l

l

l

I The solder used in the production of this product contains LEAD. In addition, other electrical/electronic

l and/or plastic (where applicable) components may also contain traces of chemicals found by the
California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects
or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH
FOR ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering. do not inhale
solder fumes or expose eyes to solder/flux vapor!

I it you come in contact with solder or components located inside the enclosure of this product, wash
your hands before handling food.

NN
