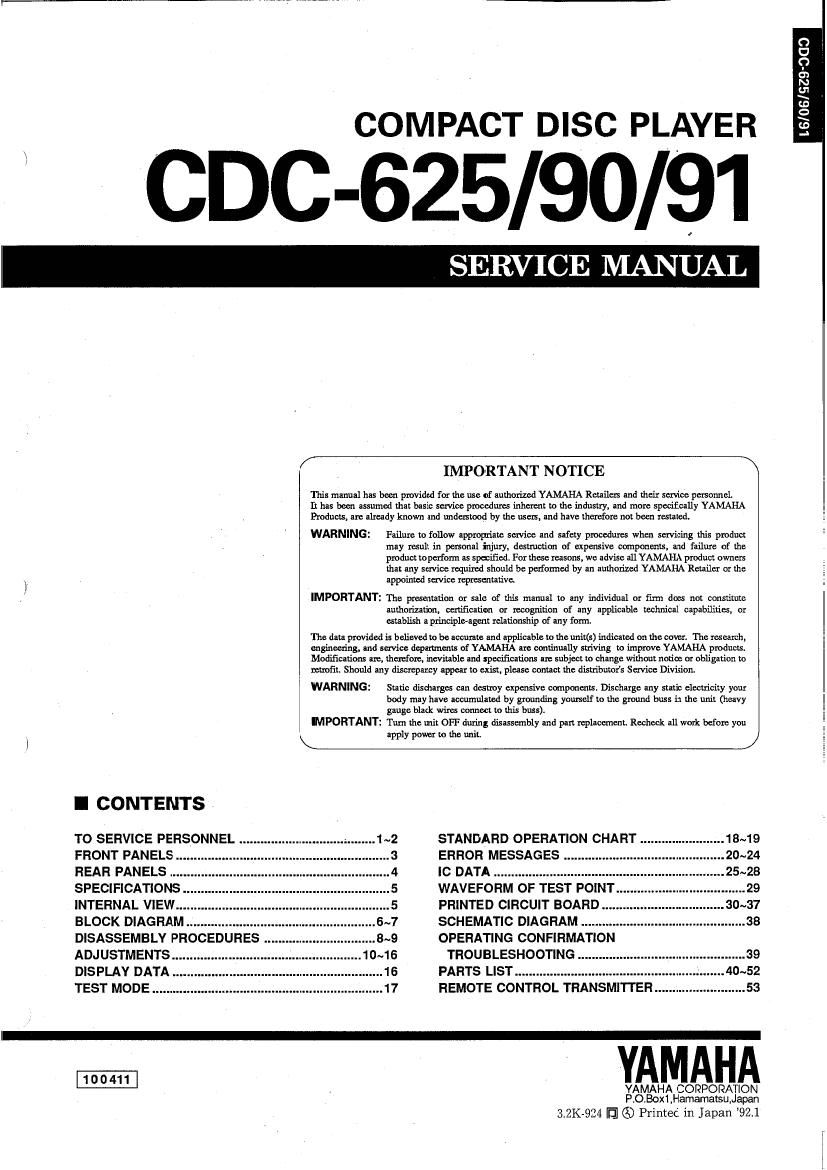

COMPACT DISC PLAYER

CDC-625/90/91

SER E MANUAL

/ IMPORTANT NOTICE \

This manual has been provided for the use of authorized YAMAHA Retailers and their serviw personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA
Products, are already known and undemtood by the users. and have therefore not been restated.

WARNING:

Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury, destrucu'on of expensive components. and failure of the
product to perform as specified. For these reasons, we advise all YAMAHA product owners
that any service required should be perfumed by an authorized YAMAHA Retailer or the
appointed service representative

IMPORTANT: The premution or sale of this manual to any individual or firm does not constitute
authorization, certification or recognition of any applicable technical capabilities, or
establish a principle-agent relatiunship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated an the cover. The research,

engineering, and service departmmts of YAMAHA Ire continually striving to improve YAMAHA products.

Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to

WARNING:

I CONTENTS

TO SERVICE PERSONNEL
FRONT PANELS .
REAR PANELS
SPECIFICATIONS

INTERNAL VIEW .....

BLOCK DIAGRAM.. .
DISASSEMBLY PROCEDURES .8~9
ADJUSTMENTS .. 10~16
DISPLAY DATA .. ....... 16
TEST MODE .................................................................. 17

retrofit. Should any discrepancy appear to exist, please contact the distributoz's Service Division

Static discharges can desmy expensive cunpmentsr Discharge any static electricity your
body may have accumulated by grounding yourself to the ground bus: in the unit (heavy
gauge black wires connect to this buss).

IMPORTANT: Tum the unit OFF during disassembly and part replacemenL Roch/wk all work before you

\ apply power to the unit. j

STANDARD OPERATION CHART
ERROR MESSAGES
IC DATA ....................
WAVEFORM OF TEST POINT
PRINTED CIRCUIT BOARD
SCHEMATIC DIAGRAM .....
OPERATING CONFIRMATION

TROUBLESHOOTING
PARTS LIST ..................
REMOTE CONTROL TRANSMITTER ....................... 53

Y MAHA

YAMAHA CORPORATION
P.O.Box1,Hamamatsu,Japan

3.2K-924 [fl 6) Printed in Japan 92.1
