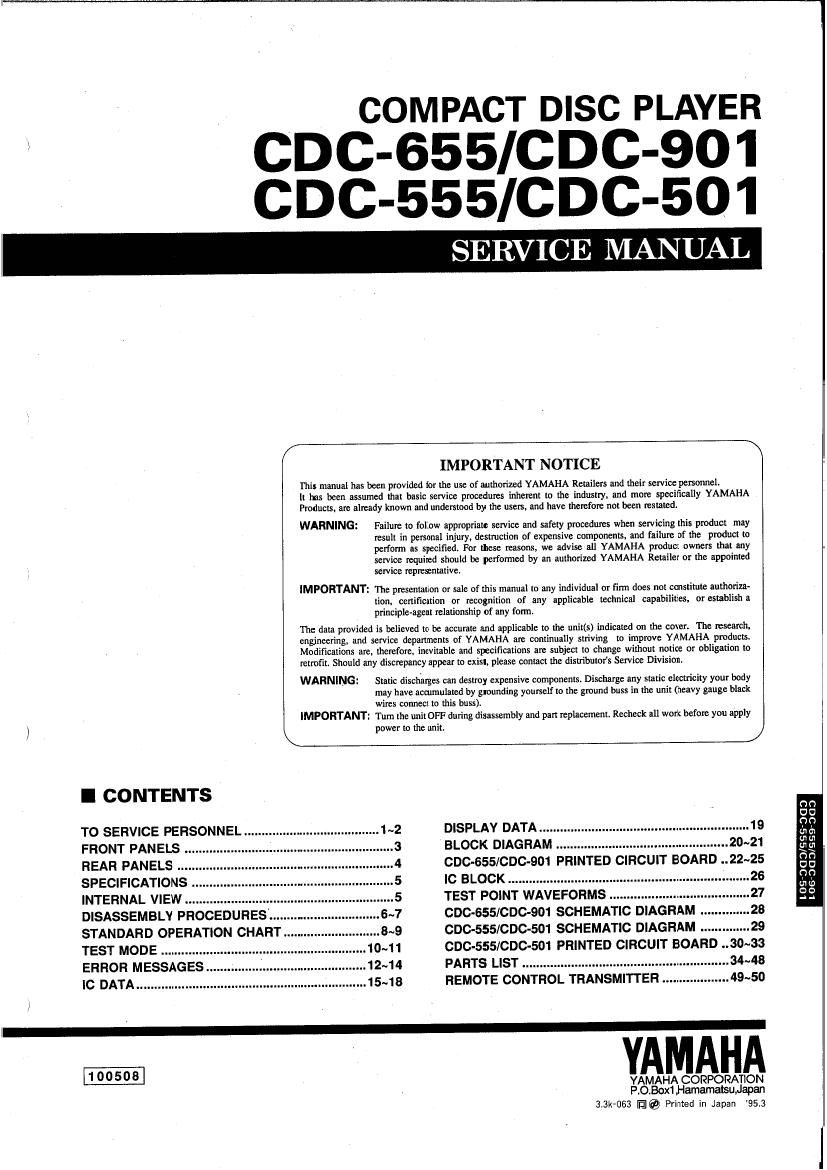

. COMPACT DISC PLAYER
CDC-655ICDC-901
CDC-555ICDC-501

SERVICE MANUAL

/ \

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA
Products, are already known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may
result in personal injury, destruction of expensive components. and failure of the product to
perform as specified. For these reasons, we advise all YAMAHA product owners that any
service required should be performed by an authorized YAMAHA Retailer or the appointed
service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authoriza-
tion. certification or recognition of any applicable technical capabilities, or establish a
principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research,
engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products,
Modifications are. therefore. inevitable and specifications are subject to change without notice or obligation to
retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body
may have accumuhated by grounding yourself to the ground buts in the unit (heavy gauge black
wires connect to this brass).

IMPORTANT: Turn the unit OFF during disassembly and pan replacement. Recheck all work before you apply

] power to the unit.

\ /
I CONTENTS
TO SERVICE PERSONNEL .1~2 DISPLAY DATA .....................
FRONT PANELS .. ...3 BLOCK DIAGRAM ................ 20~21
REAR PANELS . ...4 CDC-655/CDC-901 PRINTED CIRCUIT BOARD ..22~25
SPECIFICATIONS ...5 IC BLOCK .. ............................. 26
INTERNAL VIEW ..... 5 TEST POINT WAVEFORMS . ...... . ..........

DISASSEMBLY PROCEDURES ..
STANDARD OPERATION CHART.
TEST MODE ..
ERROR MESSAGES
lC DATA ...................

CDC-655lCDC-901 SCHEMATIC DIAGRAM ..
CDC-555/CDC-501 SCHEMATIC DIAGRAM .. ..
CDC-555/CDC-501 PRINTED CIRCUIT BOARD ..30~33
PARTS LIST .. ............. 34~48
REMOTE CONTROL TRANSMITTER ................... 49~50

;
