Yamaha cds2000

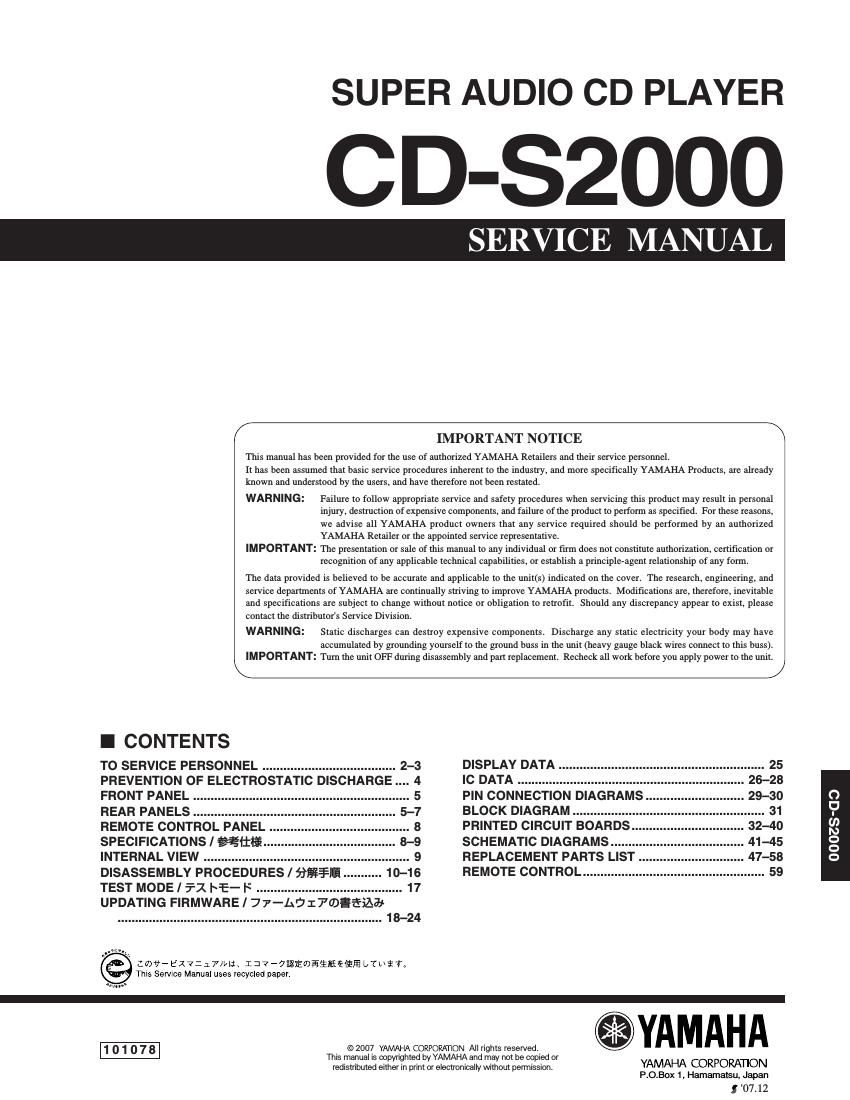

This is the 59 pages manual for yamaha cds2000.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha cds2000 (Ocr-read)
Page 1
2 CD-S2000 CD-S2000 WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF. Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities. Š;t eL^-oMb‚ow, XS|Ëï¼ ÇZt €ù æxÁËï¼pËï¼ ÇZ^-oM‡b{ ÁËï¼txMXmTw ¨UK‡bUz .gÌtx<Gw OsÁËï¼w–;› * `‡b{ ~ 4 O " H $ V
Page 2
3 CD-S2000 CD-S2000 - Material: SA-CD Semiconductor laser (AlGaInP) CD Semiconductor laser (AlGaAs) - Wavelength: SA-CD 650 nm CD 780 nm Warning for power supply The primary side of the power supply carries live mains voltage when the player is connected to the mains even when the player is switched off ! This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player. Service personnel have to take precautions to prevent touching this area or components in this area. Note: The screws on the DVD mechanism may never be touched, removed or re-adjusted. Handle the DVD mechanism with care when the unit has to be exchanged! The DVD mechanism is very sensitive for dropping or giving shocks. Laser Diode Properties - Laser Output: SA-CD 5 mW (max.) CD 7 mW (max.) B, G models
