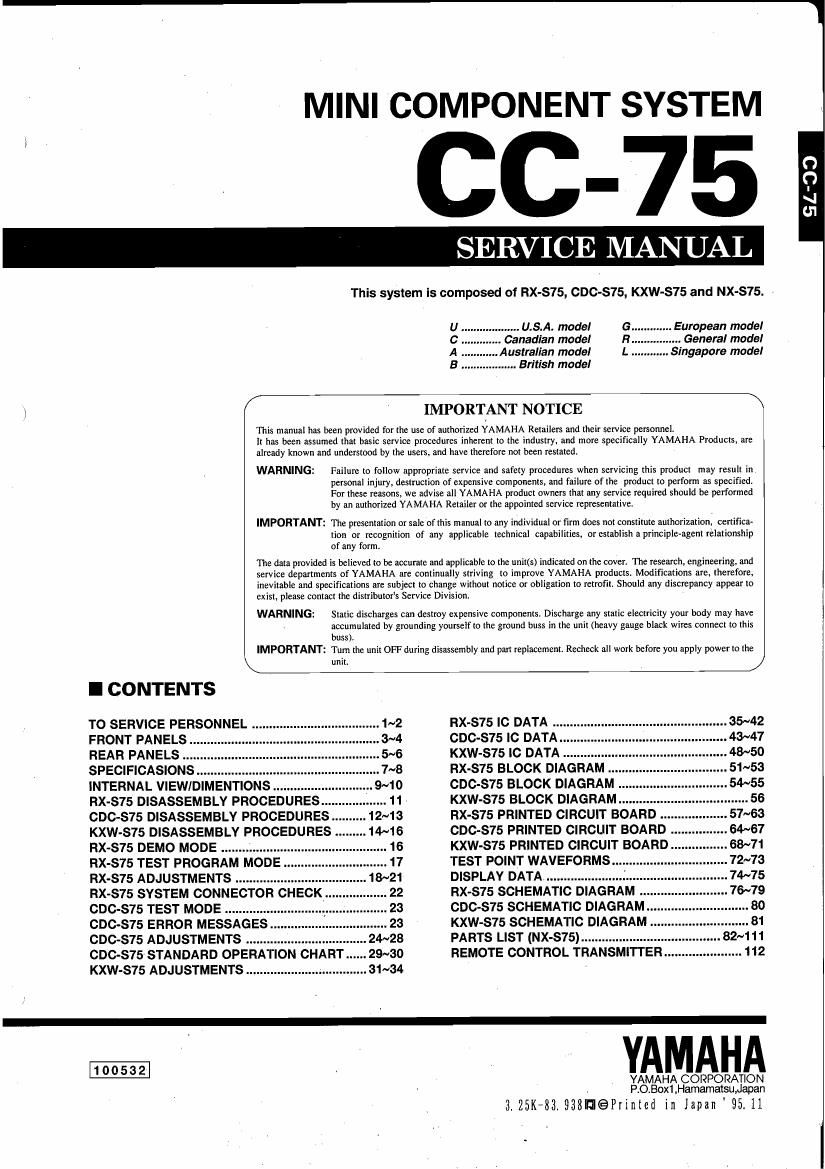

Page 1

MINI COMPONENT SYSTEM

CC- 7 5
SERVICE MANUAL

This system is composed of Fix-s75, CDC-s75, KXW-S75 and NX-S75.

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are
already known and understood by the users. and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in
personal injury, destruction of expensive components, and failure of the product to perform as specified.
For these reasons, we advise all YAMAHA product owners that any service required should be performed
by an authorized YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual it) any individual or firm does not constitute authorization. certifica-
tion or recognition of any applicable technical capabilities, or establish a principle-agent relationship

of any form,

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering. and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are therefore,
inevitable and specifications are subject to change without notice or obligation to retrofit Should any discrepancy appear to
exist please contact the distributor's Service Division

WARNING: Static discharges can destroy expensive components, Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this

IMPORTANT: Turn the unit OFF during disussembly and part replacement. Recheck all work before you apply power to the

U .. U.S.A. model 6.. European model
0 Canadian model R.. General model
A "Australian model L .. ngapore model
B .. ........ British model

IMPORTANT NOTICE \

buss).

unit.
I CONTENTS
TO SERVICE PERSONNEL ..
FRONT PANELS . .. 3~4

REAR PANELS
SPECIFICASIONS ..
INTERNAL VIEW/DIMENTIONS .
RX-S75 DISASSEMBLY PROCEDURES.
CDC-S75 DISASSEMBLY PROCEDURES.
KXW-S75 DISASSEMBLY PROCEDURES
RX-S75 DEMO MODE ................
RX-S75 TEST PROGRAM MODE .
RX-S75 ADJUSTMENTS .
RX-S75 SYSTEM CONNECTOR C
CDC-S75 TEST MODE ...........
CDC-S75 ERROR MESSAGES
CDC-S75 ADJUSTMENTS ....................... .
CDC-S75 STANDARD OPERATION CHART. ..

KXW-S75 ADJUSTMENTS ................................... 31 ~34

RX-S75 IC DATA
CDC-S75 IC DATA.
KXW-S75 IC DATA
RX-S75 BLOCK DIAGRAM .
CDC-S75 BLOCK DIAGRAM .. .
KXW-S75 BLOCK DIAGRAM .. ..... 56
RX-S75 PRINTED CIRCUIT BOARD .
CDC-S75 PRINTED CIRCIJIT BOARD .
KXW-S75 PRINTED CIRCUIT BOARD .
TEST POINT WAVEFORMS
DISPLAY DATA ...................
RX-S75 SCHEMATIC DIAGRAM
CDC- S75 SCHEMATIC DIAGRAM.
KXW- S75 SCHEMA' I'IC DIAGRAM
PARTS LIST (NX-S75).
REMOTE CONTROL TR

YAMAHA

YAMAHA CORPORATION
P.O.Box1,Hamamatsu.Japan

3. 25K-33. 938fl©Prinled in Japan ' 95,11

Page 2

cc-75

ITO SERVICE PERSONNEL

1. Critical Components Information. AC LEAKAGE I
Components having special characteristics are marked and WALL EQUIPMENT TESTER on
must be replaced with parts having specifications equal to OUTLET UNDER TEST EQUIVALENT
those originally installed.
2. Leakage Current Measurement (For 120V Models Only). ® 3
When service has been completed, it is imperative to verily
that all exposed conductive surfaces are properly insulated =
from supply circuits. INSULATING
TABLE

0 Meter impedance should be equivalent to 1500 ohm shunted
by 0.15m:~

o Leakage current must not exceed 0.5mA.

0 Be sure to test for leakage with the AC plug in both
polarities.

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs a laser. Therefore, he sure to carefully
follow the instructions below when servicing .

1. Laser Diode Properties 2. When checking the laser diode emission, keep your
0 Material : GaAIAs eyes more than 30 cm away from the objective lens.
0 Wavelength : 780 nm
0 Emission Duration : Continuous
0 Laser Output : max. 44.6 pW

* This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the Optical Pick-up Block.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic
and/or plastic (where applicable) components may also contain traces of chemicals found by the
California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects
or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH
FOR ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale
solder fumes or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash
your hands before handling food.
