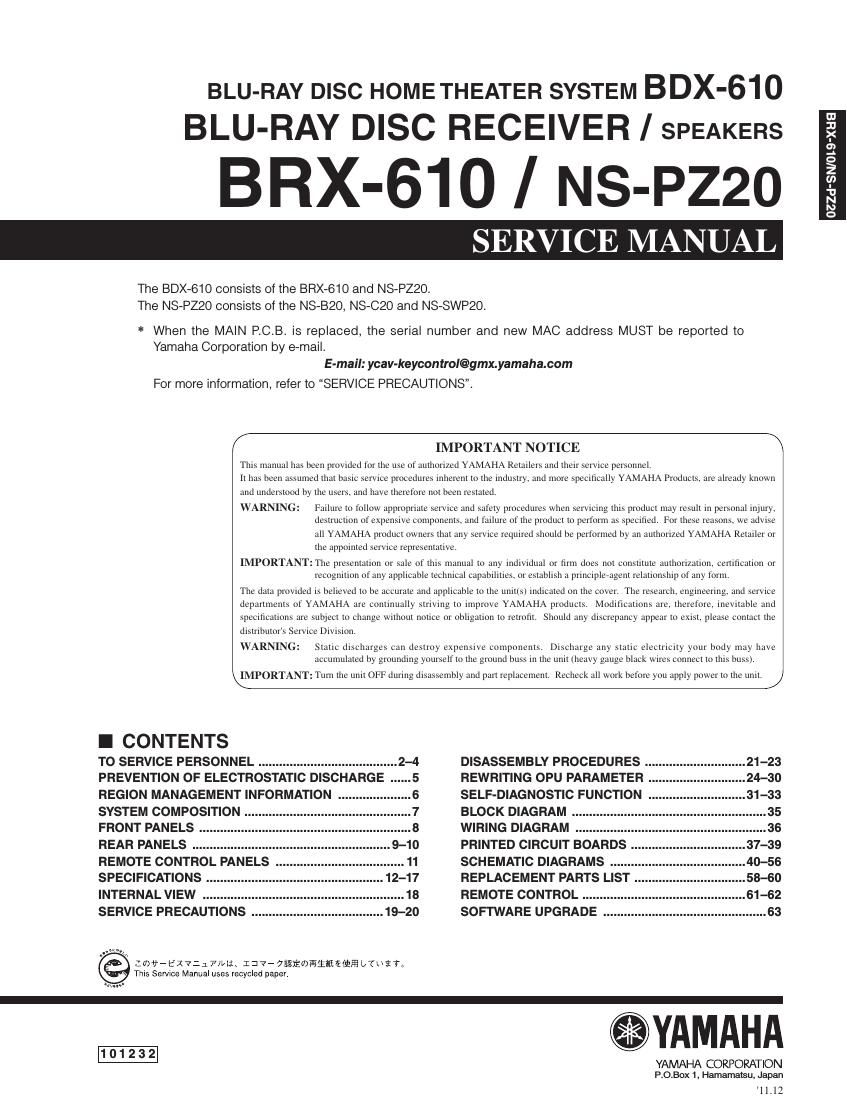

BLU-RAY DISC HOME THEATER SYSTEM BDX-610

BLU-RAY DISC RECEIVER / SPEAKERS

BRX-610 / NS-P220

SER E MANU

W
:0
5
a)
.a
2
Z
9
'U
N
M
o

The BDX761O consists of the BRXs610 and NSePZZO.
The NSePZZO consists of the NSeBZO, NSeCZO and NSsSWPZO.

* When the MAIN PCB. is replaced, the serial number and new MAC address MUST be reported to
Yamaha Corporation by email.
E-mail: ycav-keycontrol@gmx.yamaha.com

For more information, refer to SERVICE PRECAUTlONS".

IMPORTANT NOTICE

This manual has been provided for rhe use of authorized YAMAHA Retailers and their service personnel,
it has been assumed that basic service procedures inherent to the industry. and more specifically YAMAHA Products. are already known
and understood by the users. and have rheretore not been restared,

WARNING: Failure to follow appropriate service and safety procedures when servicing this producr may result in personal injury.
destruction of expensive coniportents. and failure of the product to perform as specified. For these reasons. we advise
all YAMAHA product owners that an) servtce required should be performed by an authorized YAMAHA Retailer or
the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. certification or
recognition of any applicable technical capabilities. or establish a pi'inciplesagent relationship of any form

The data provided is believed to be accurate and applicable to the unitts) indicated on the cover, The research, engineering and service

departments at YAMAHA are continually srriving to improve YAMAHA products, Modifications are. therefore. inevitable and

specifications are Subject to change without notice or obligation to retrofit. Should arty discrepancy appear to exist. please contact rhe
distributor's Service Division.

WARNING: Static discharges can destroy expensive components Discharge any static electricity yolii' body may have
accumulated by grounding yourseltto the ground buss in the unit (heavy gauge blact wires connect to this buss).

IMPORTANT: Tum the unit OFF during disassembly and part replacement. Reclleck all work before you apply power to the unit.
