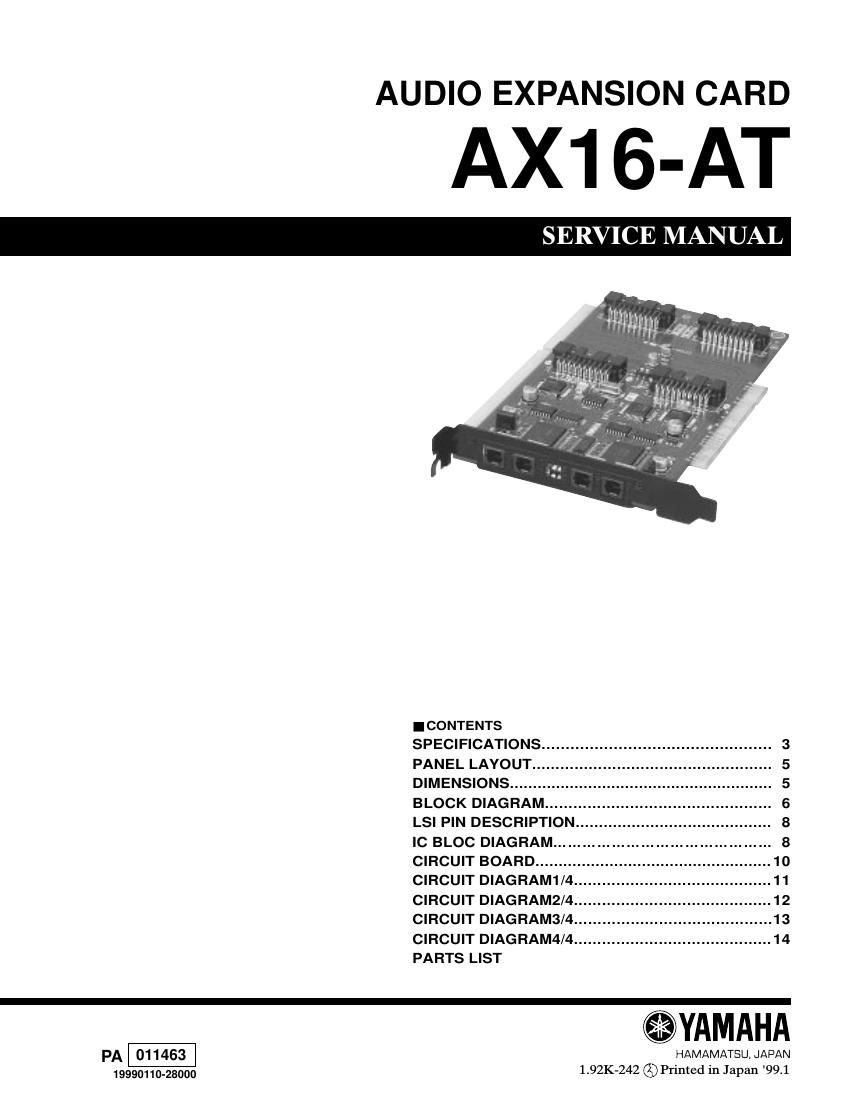

Yamaha ax16 at expansion card service manual
This is the 18 pages manual for yamaha ax16 at expansion card service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha ax16 at expansion card service manual (Ocr-read)
Page 1
2 AX16-AT IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity you body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss). IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT- SOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
Page 2
3 AX16-AT 1.GENERAL SPECIFICATIONS -PCI Raw Variable Height Short Card. -2 lines ADAT Interface (Independent switch-selectable for THRU Interface). 2.DIGITAL AUDIO SIGNAL INPUT/OUTPUT CHARACTERISTICS PCI Interface Installable in any PCI-equipped computer. (for power supplement only) ISA Interface Installable in any ISA-equipped computer by replacing bracket. (for power supplement only) SPECIFICATIONS ADAT Interface ALESIS ADAT Proprietary Multi Channel Optical Digital Interface Format IO,THEU Interface YAMAHA DS2416 compatible format Switch (on Rear Panel) ADAT or THRU (A or B line is independent.) A IN B IN A OUT B OUT IO-A IO-B THRU-A THRU-B Terminals ALESIS ADAT Proprietary Multi Channel Optical Digital Interface Format ALESIS ADAT Proprietary Multi Channel Optical Digital Interface Format 4ch or 8ch Digital Audio Inputs (2ch or 4ch/line, MSB first 2) 4ch or 8ch Digital Audio Outputs (2ch or 4ch/line, MSB first 2) Max. 32 bits/ch I O I/O I/O Format - - 5V CMOS Format Connector EIAJ fiber optical jack EIAJ fiber optical jack 20P Connector MIL-Standard (MIL-C-83503)
