Extracted text from yamaha aw4416 audio workstation service manual (Ocr-read)

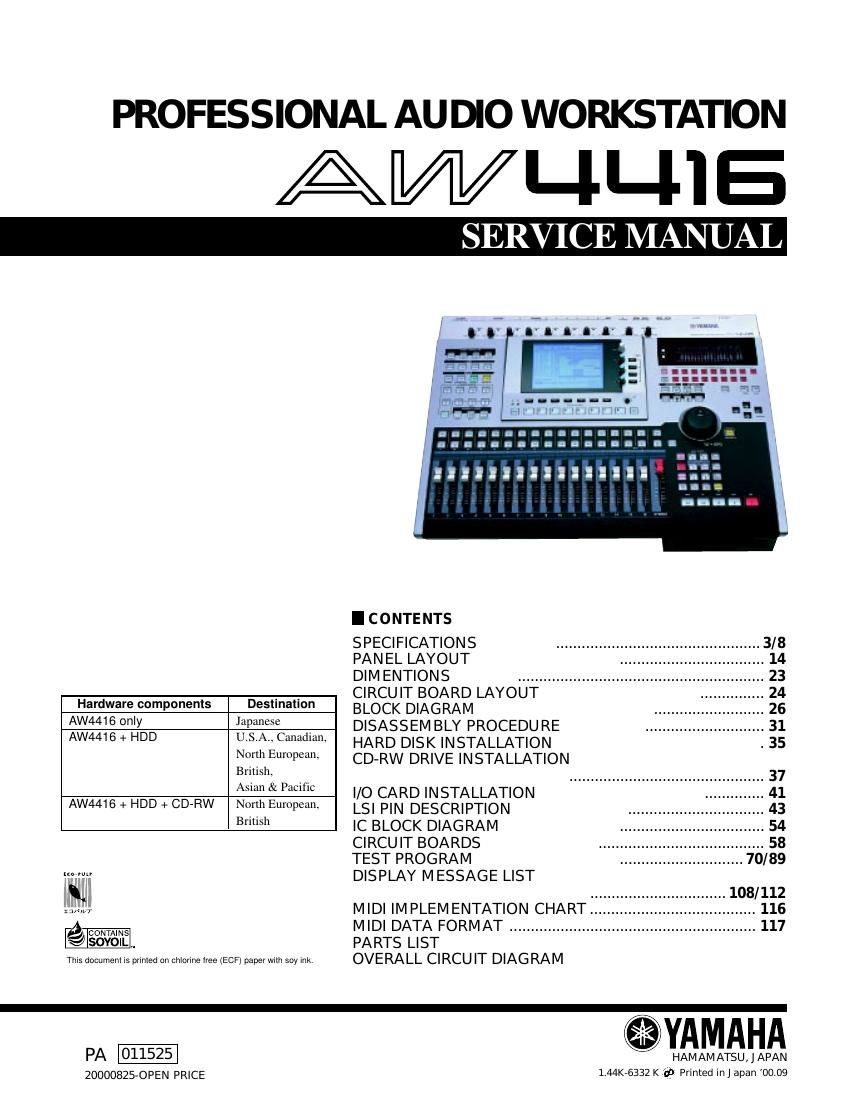

Page 1
AW4416 2 IMPOR TANT NOTICE FOR THE UNITED KINGDOM Connecting the Plug and Co Connecting the Plug and CoConnecting the Plug and Co Connecting the Plug and Co Connecting the Plug and Co r rr r r d dd d d IMPORTANT. The wires in this main lead are coloured in accordance with the following code: BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the main lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The BLUE wire must be connected to the terminal that is marked with the letter N (or coloured BLACK). The BROWN wire must be connected to the terminal that is marked with the letter L (or coloured RED). Be certain that neither core is connected to the earth terminal of the three pin plug. IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributorÕs Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed.
Page 2
AW4416 3 General Specifications AD converter 24-bit linear, 64-times oversampling DA converter 24-bit linear, 128-times oversampling Internal processing 32-bit Sampling frequency Internal 44.1 kHz/48kHz External 44.1 kHz (–6%) to 48 kHz (+6%) Audio input section max. 26 channels MIC/LINE 8 channels DIGITAL STEREO IN 2 channels (stereo ´ 1) mini YGDAI card (option) max. 16 channels Audio output section max. 28 channels STEREO OUT 2 channels (stereo ´ 1) OMNI OUT 4 channels MONITOR OUT 2 channels (stereo ´ 1) PHONES 2 channels (stereo ´ 1) DIGITAL STEREO OUT 2 channels (stereo ´ 1) mini YGDAI card (option) max. 16 channels Mixing layer section 44 channels Input channel 24 channels Internal effect return 4 channels (stereo ´ 2) Playback 16 channels (16 track direct out playback), or stereo 2 channels (stereo track playback) Internal effects section Multi-effects ´ 2 Bus section 20 channels Bus 8 channels Aux 8 channels Stereo 2 channels (stereo ´ 1) Solo 2 channels (stereo ´ 1) Sampler section Assign to mixer section Playback 8 voices Trigger pads 8 ´ 2 banks Sampling time max. 90 sec. (16-bit/44.1 kHz) Recorder section Recording medium 2.5" IDE hard disk drive Sound file format AW4416 original format Recording resolution 16-bit, 24-bit Tracks 130 tracks (16 tracks ´ 8 virtual tracks plus ste- reo track) Maximum recording time Approx. 140 min (44.1 kHz, 16-bit, 16 tracks, 12 GB hard disk) SPECIFICATIONS
