Yamaha aw16g digital recorder service manual
This is the 93 pages manual for yamaha aw16g digital recorder service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha aw16g digital recorder service manual (Ocr-read)

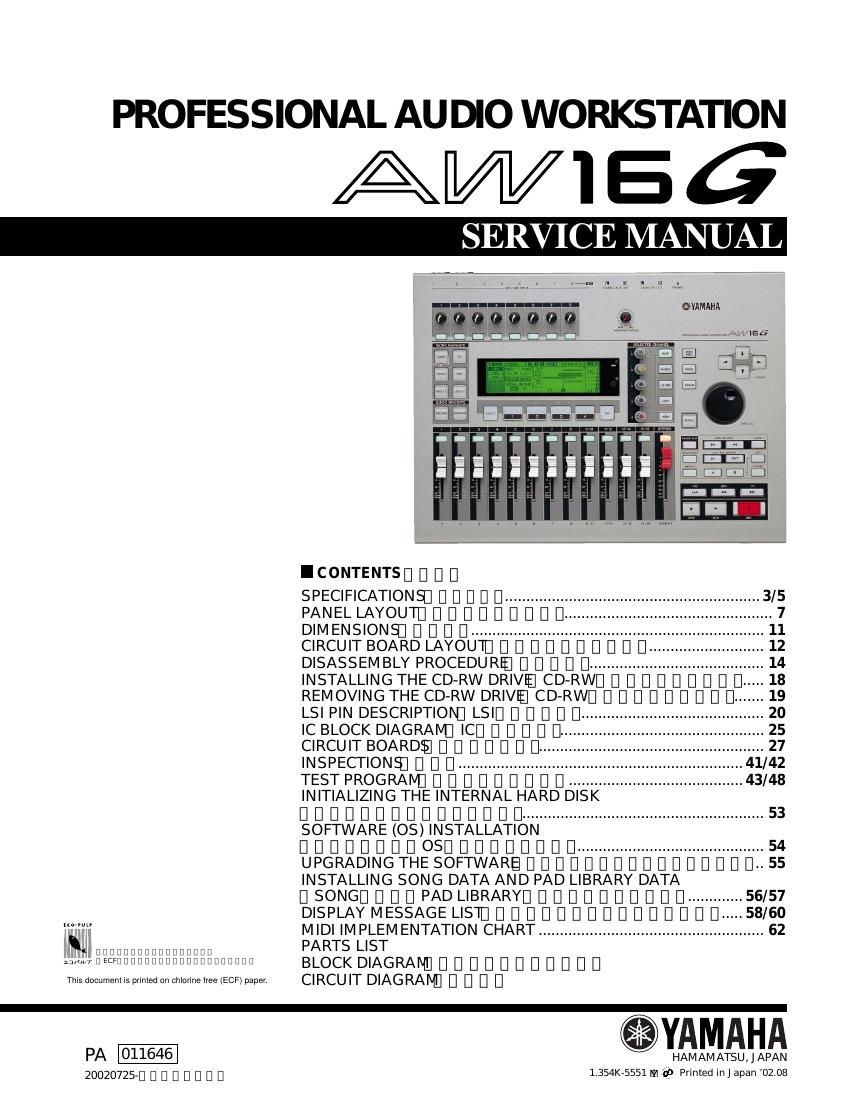

Page 1
AW16G 2 IMPOR TANT NOTICE FOR THE UNITED KINGDOM Connecting the Plug and Co Connecting the Plug and CoConnecting the Plug and Co Connecting the Plug and Co Connecting the Plug and Co r rr r r d dd d d IMPORTANT. The wires in this main lead are coloured in accordance with the following code: BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the main lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The BLUE wire must be connected to the terminal that is marked with the letter N (or coloured BLACK). The BROWN wire must be connected to the terminal that is marked with the letter L (or coloured RED). Be certain that neither core is connected to the earth terminal of the three pin plug. IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributorÕs Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. ¹w Ž ¼xz† ¶›¡ËbhŠt OAs æ ¼pb{¦õb Ôùxz† ¶whŠt žc¦ w æ ¼›]–;<à4Ð'°
Page 2
AW16G 3 SPECIFICATIONS General Specifications Frequency Response 0 +1/–3 dB, 20 Hz–20 kHz (MIC/LINE IN – STEREO OUT) Total harmonic distortion (Nominal input/Output level) 20 kHz LPF Less than 0.03% 1 kHz (LINE IN to STEREO OUT) Less than 0.2% 1 kHz (MIC IN to STEREO OUT) Dynamic range (Maximum level to Noise level) IHF-A 109 dB typ. DA converter (STEREO OUT) 103 dB min. DA converter (STEREO OUT) 103 dB typ. AD + DA (LINE IN to STEREO OUT) 97 dB min. AD + DA (LINE IN to STEREO OUT) AD converter 24-bit linear, 64-times oversam- DA converter 24-bit linear, 128-times oversam- pling pling Internal processing 32-bit Sampling frequency Internal 44.1 kHz (±6%) External 44.1 kHz (±6%) Audio input section MIC/LINE 8 channels DIGITAL IN 2 channels (optical stereo ´ 1) Audio output section MONITOR OUT 2 channels (stereo ´ 1) PHONES 2 channels (stereo ´ 1) STEREO/AUX OUT 2 channels (stereo ´ 1) DIGITAL OUT 2 channels (optical stereo ´ 1) Mixer section Total 36 channels MIC/LINE INPUT 8 channels Internal effect return 4 channels (stereo ´ 2) Recorder monitor 16 channels Quick loop sampler 8 channels (stereo ´ 4) Internal effects section Multi-effects ´ 2 Bus section Total 8 buses Bus 2 (L/R) AUX 2 (1/2) STEREO 2 (L/R) Effect 2 (1/2) Internal HDD 20 GB 2.5" IDE Maximum capacity per one song: 6.4 GB Maximum songs 1,000 songs Recorder resolution 16 bit linear (non-compressed) Maximum tracks of recording/playback simultaneously 8 tracks, Recording & 16 tracks, pla ybackNumber of tracks 144 tracks (16 tracks + stereo tracks) ´ 8 virtual Fader 13 ´ 45 mm MIDI MTC (Master/Slave), MIDI Clock (Master), MMC (Master/Slave), Pro- gram Change, Control Change, Bulk Dump Memory Scene memory, EQ library, dynam- ics library, effect library, channel library, sample library AC adaptor PA-300 Power requirements U.S.A. & Canada 110–120 V, 50/60 Hz Europe 220–240V, 50/60 Hz Dimensions (W ´ H ´ D) 425.0 ´ 98.8 ´ 321.5 mm (16.7 ´ 3.9 ´ 12.6 inches) Weight 4.4 kg (9.7 lbs) Operating temperature range 5¡ to 35¡ C Options Footswitch FC5, CD-RW Drive CDRW16G Mixer section Input/output MIC/LINE input channel 1, 2 (balanced, XLR-type) +48V ±3V DC phantom powering Input impedance 3 kW Nominal input level –46 dB to +4 dB Minimum input level –52 dB Maximum input level +18 dB MIC/LINE input channel 3–8 (balanced, TRS phone jack) Input impedance 3 kW Nominal input level –46 dB to +4 dB Minimum input level –52 dB Maximum input level +18 dB MIC/LINE input (Hi-Z) channel 8 (unbalanced, phone jack) Input impedance 500 kW Nominal input level –46 dB to +4 dB Minimum input level –52 dB Maximum input level +18 dB STEREO/AUX OUT L, R (unbalanced, phone jack) Output impedance 150W Nominal load impedance 10 kW Nominal output level –10 dBV Maximum output level +4 dBV MONITOR OUT L, R (unbalanced, phone jack) Output impedance 150W Nominal load impedance 10 kW Nominal output level –10 dBV Maximum output level +4 dBV
