Yamaha audiogram3 service manual
This is the 45 pages manual for yamaha audiogram3 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha audiogram3 service manual (Ocr-read)

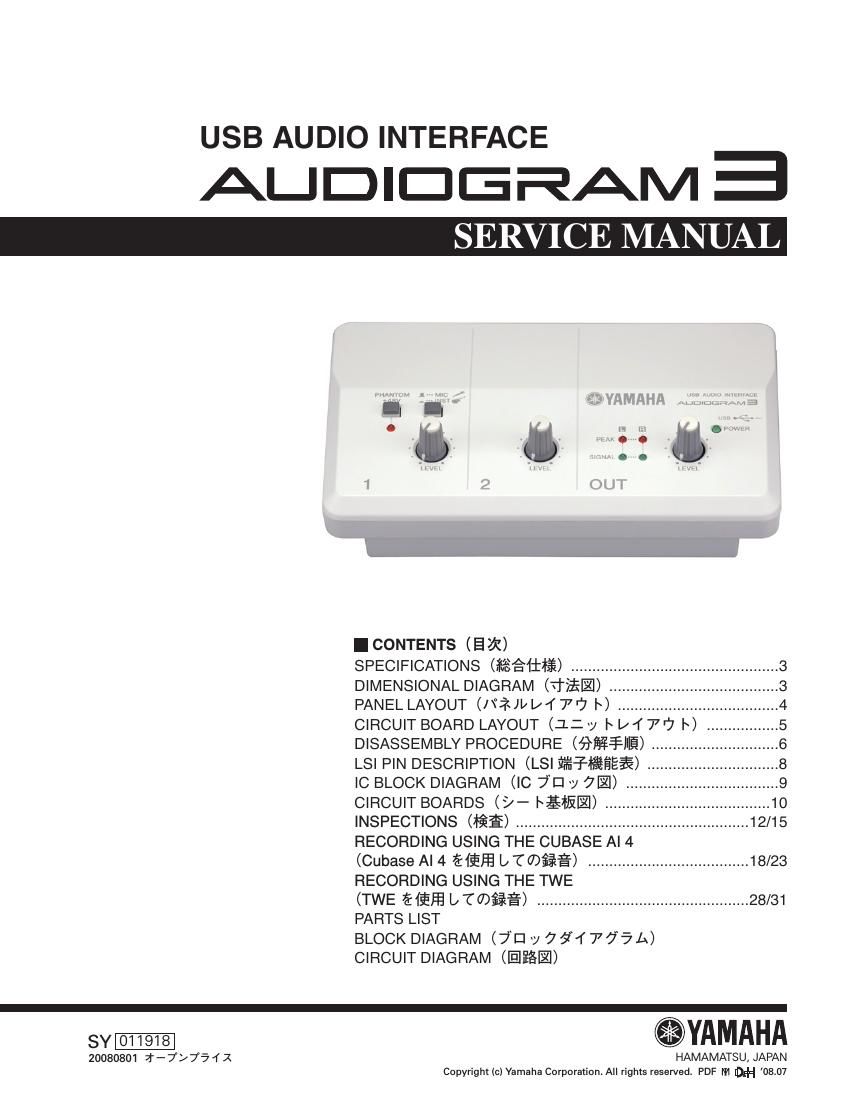

Page 1
AUDIOGRAM3 2 WARNING Components having special characteristics are marked and must be replaced with parts having specifi cation equal to those originally installed. IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/ flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. ¹w æ ¼xz† ¶›¡ËbhŠt OAs æ ¼pb{¦õb Ôùxz† ¶whŠt žc¦ w æ ¼›]–;€65à4Ð'° . * $ * / 4 5 z ¢ 9 - 3 » Ó£wÐï »xzŽ<wqSpb{ ¢ * & $ F¨t,nMoM‡b£ ¬å¢ïÅ¢ ( / %£z ׿Ģ´£z ¯çÅ¢µ££ 3 21 MIC/INST jacks (XLR-type) are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).
Page 2
3 AUDIOGRAM3 SPECIFICATIONS¢ ïù7£ JacksMIC/INST Input Jack x 1 Combo jack (Mic/HiZ) LINE Input Jacks (L, R)x 1 Phone jacks x 1 RCA pin jacks PHONES Jack x 1 Phone jack STEREO OUT Jacks (L, R)x 1 Phone jacks x 1 RCA pin jacks USB Connector x 1 USB 1.1 44.1/48 kHz, 16 bit Controls MIC/INST Switch x 1 MIC: for microphones INST (Hi-Z): for guitars, etc. LEVEL Control x 2 Adjust the level of CH 1, 2 PHANTOM +48V Switch x 1 48 V, only for CH1 OUT LEVEL Control x 1 Adjusts the overall signal IndicatorsPhantom Power x 1 Red Level Indicators x 1 2 points (green, red) Power x 1 Green Power Supply USB bus-powered Dimensions (W x H x D) 180 x 61 x 112 mm Net Weight 490 g Included Accessories Cubase AI 4 DVD-ROM USB cable Owners Manual General Specifi cations DIMENSIONAL DIAGRAM¢ GO $£ W: 180 D: 112 108 36 H: 61 52 2 Unit: mm
