Yamaha as 3000

Page 1

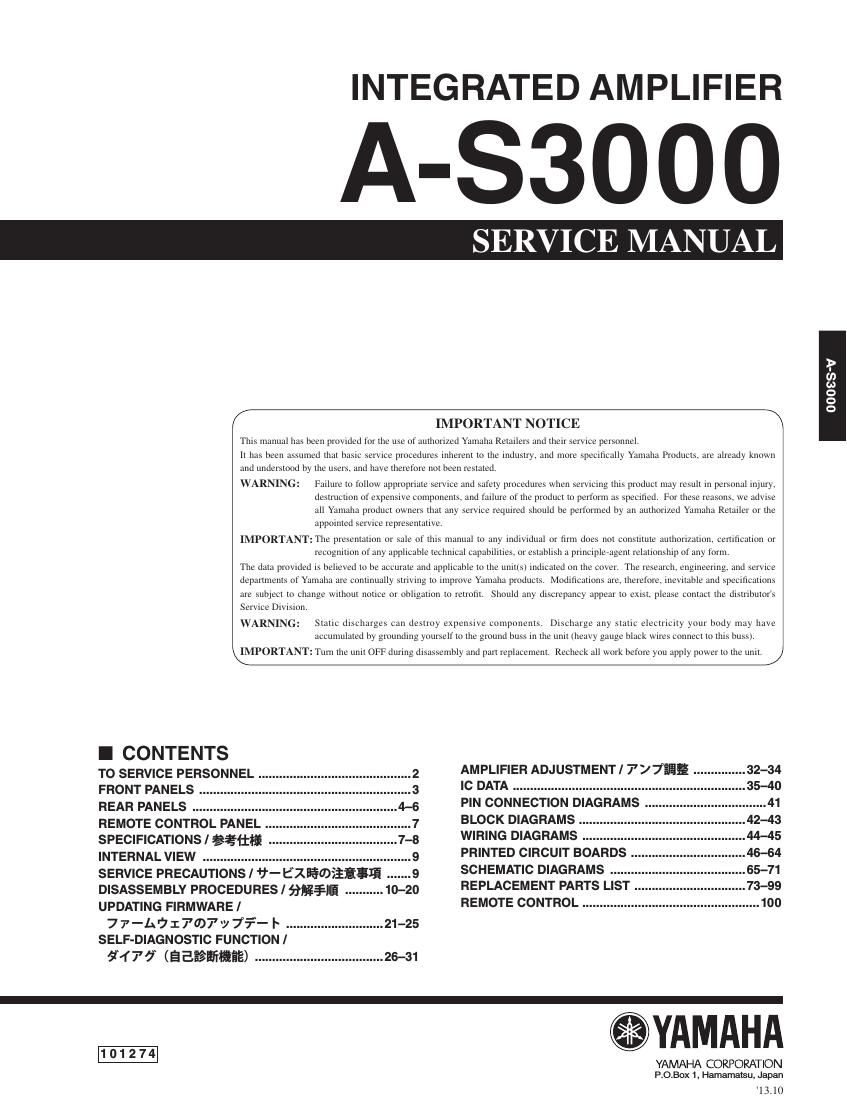

INTEGRATED AMPLIFIER

A-S3000

SERV CE MANUAL

IMPORTANT NOTICE

This manual has been provided for (he use of aIIThOl'iZed Yamaha Reiailers and IheIr service personnel.

I! has been assumed Thm ba

. SeKVICe procedures inherent to the industry. and more specifically Yamaha Products. are already known
and understood by the users. and have theretore not been restated,
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury
destruction Of expensive cotiiponents. and failure of the product to perform as specified. For these reasons. we advise
all Yamalia ptodiict owtiers that atiy service required should he performed by an authorized Yamaha Retailer or the
appointed service representative,
IMPORTANT: The presentation or sale ot this trianual to any individual or firm does not constitute authorization. ceitification or
recogtiition of atiy applicable technical capabilities. or establish a principleeagem relationship of any form
The data provided is believed to be accurate and applicable to the iimtts> indicated on the cover. The research. engineering and service
departments of Yamaha are cotitiiiually strivmg to improve Yamaha products. Modifications are. therefore, itievitable and specifications
are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist. please contact the disli'ibuiors
Service Division.
WARNING: static discharges can destroy expensive components Discharge any static electricity your body may have
accumulated by grounding yourselfto the ground buss iii the unit (heavy gauge black wires connect to this buss).

IMPORTANT: Turn the unit OFF during disassemhly and part replacement Recheck all work before you apply power to the unit.

I CONTENTS

To SERVICE PERSONNEL ............................................ 2 AMPLIFIER ADJUSTMENT/ 777mg ............... 32-34
FRONT PANELS ............................................................. 3 3 DATA ---------------------------------- 35-40
REAR PANELS ........................................................... 4-6 PIN CONNECTION DIAGRAMS - 41
REMOTE CONTROL PANEL .......................................... 7 BLOCK DIAGRAMS 42-43
SPECIFICATIONS I agflfi WIRING DIAGRAMS . 44-45
iNTERNAL VIEW _ PRINTED CIRCUIT BOARDS ................................. 46-64
SERVICE PRECAUTIONS / fi-Ezfiafiifégxfi 9 SCHEMATIC DIAGRAMS ....................................... 65-71
DISASSEMBLY PROCEDURES / 53%;; IIIIIIIIIII 10_20 REPLACEMENT PARTS LIST ................................ 73-99
UPDATING FIRMWARE] REMOTE CONTROL ................................................... 100

77-A0:7®7v7¥-I~ ............................ 21-25
SELF-DIAGNOSTIC FUNCTION I
GM 7' 7 (a Eliafifiwsfi) ..................................... 26-31

YAMAHA

YAMAHA CORPORATION

P.O.Box 1, Hamamatsu, Japan
13.10

OOOCS'V
