Yamaha an 200
This is the 58 pages manual for yamaha an 200.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from yamaha an 200 (Ocr-read)

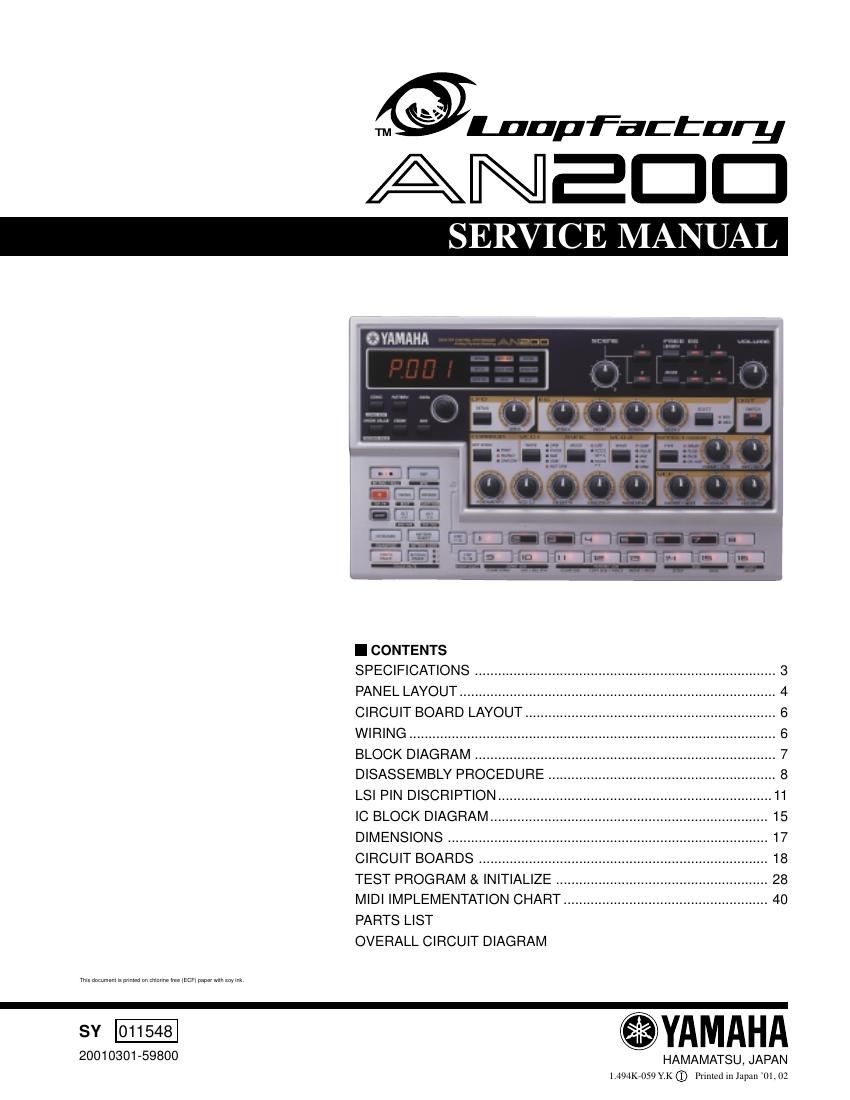

Page 1
2AN200 IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and have therefore not been restated. WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certifica- tion, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefor, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division. WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus). IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical / electronic and / or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and / or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL / ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder / flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. LUTHIUM BATTERY HANDLING This product uses a lithium battery for memory back-up. WARNING: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. Leave lithium battery replacement to qualified service personnel. Always replace with batteries of the same type. When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. Never solder directly to the cells. perform the soldering as quickly as possible. Never reverse the battery polarities when installing. Do not short the batteries. Do not attempt to recharge these batteries. Do not disassemble the batteries. Never heat batteries or throw them into fire. ADVARSEL!Lithiumbatteri -Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandoren. VARNINGExplosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enlight fabrikantens instruktion. VAROITUSParisto voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. The following information complies with Dutch Official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES. Please refer to the diassembly procedure for the removal of Back-up Battery. Leest u voor het verwijderen van de backup batterij deze beschrijving.
Page 2
3 AN200 SPECIFICATIONS 1.FUNCTIONS Tone Generator Analog Physical Modeling 2VCO (Osc. Sync, FM), Noise, Ring Mod., Filter (FEG), Amp (AEG), 2LFO, PEG + AWM2 Timber 1 (AN) + 3 (AWM2) Polyphony 5 (AN) + 32 (AWM2) Notes Effector Distortion, 3-Band EQ (only AN) + 1 Effector (Tempo Delay/Reverb, Flanger/ Chorus, Phaser, Amp. Simulator) Pattern Preset Pattern x 256, User Pattern x 128 Scene 2 Scene Step Sequencer MIDI Sync, MIDI Transmit Others Free EG (4 tracks) 2.CONTROLLERS Sound Control Knob x 16 (Cutoff/Filter Type, Resonance, FEG Depth, VCO1/2 Balance, FM Depth, Sync Pitch, Noise Level, EG Attack, EG Decay, EG Sustain, EG Release, Portamento Time, Effect Param/ Pan, Effect Wet/Vol, LFO Speed, Scene Control) Master Volume Knob x 1 Rotary Encorder x 1 3.PANEL SWITCHES Sound Control Sw. x 8 (LFO Detail, Key Assign, VCO1 Wave, Sync Mode, VCO2 Wave, Effect Type, EG Select, Dist Sw) Scene x 2, Sequencer. Sw x 2, Mode x 2, Pattern Select x 1, Keyboard Mode x 1, Step Select x 16, Step Group Select x 2, Track Select x 2, Play Effect x 2, Octave x 2, Tap Tempo x 1, Free EG Sw. x 4, Free EG Mode x 1, Free EG Length x 1, Store x 1, Show Value x 1, Shift x 1, Exit x 1 4.DISPLAY 7SEG LED x 4 5.CONNECTORS OUTPUT L (MONO)/R Phone x 2 MIDI IN/OUT Din x 2 DC IN PHONES Stereo phone 6.MAXIMUM OUTPUT LEVEL Phones +0.5 dBm (33 ohm) Stereo Output +9.0 dBm (10 kohm) 7.IMPEDANCE Phones 47Ω OUTPUT L/R 1kΩ 8.POWER CONSUMPTION 7.4W (DEMO PLAY) 340mA ±10% 9.DIMENSIONS, WEIGHT 338.0 (W) x 208.9 (D) x 51.7 (H) mm, 1600 g 10.ACCESSORIES CD ROM (for Windows and Macintosh) x 1 Owner's Manual x 1 AC Adaptor x 1 (Power supply recommendation may vary from country to country. Please check with your nearest Yamaha dealer for further details.)
