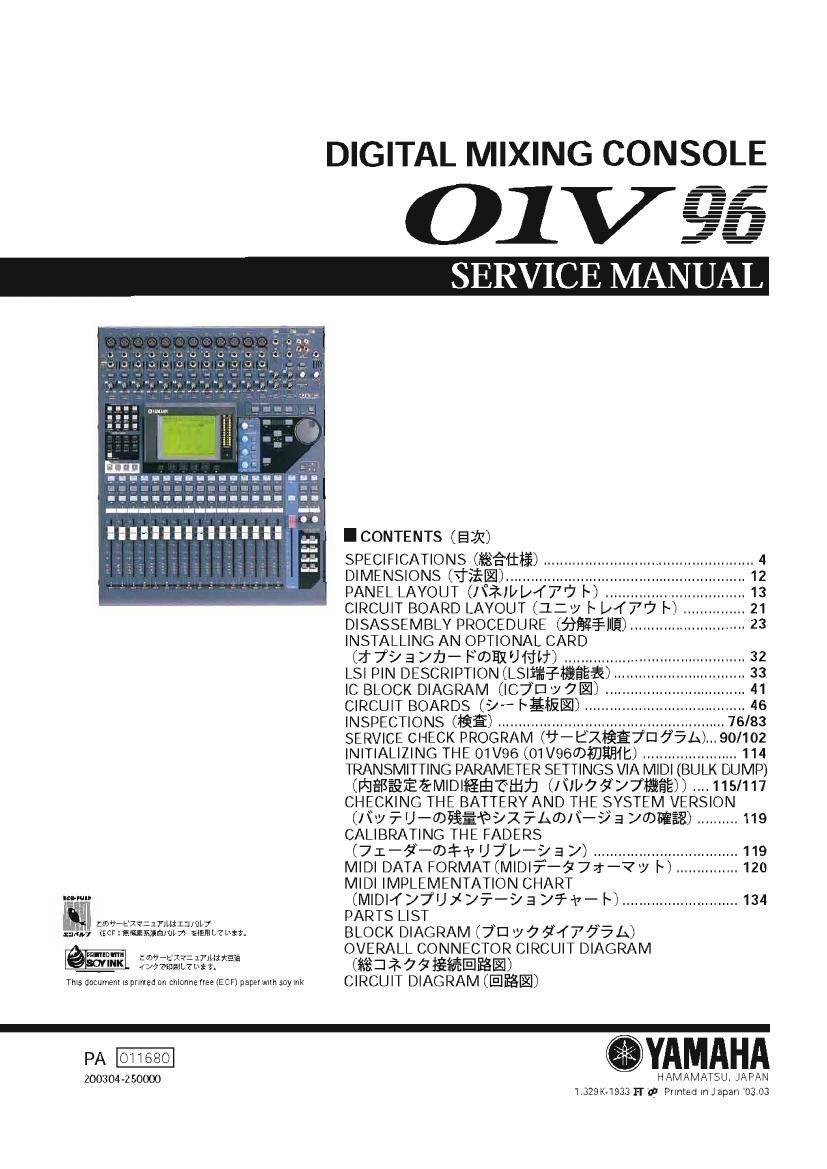

Yamaha 01v 96

Page 2

01 V96

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their serVIce personnel. It has been assumed
that ba5ic sen/ice procedures Inherent to the Industry, and more specifically Yamaha Products, are already known and under
stood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when serVIcing this product may result in per
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, We adVIse all Yamaha product owners that all serVIce required should be performed by an
authorized Yamaha Retailer or the appointed serVIce representative.

IMPORTANT: This presentation or sale ofthis manual to any indIVIdual or firm does not constitute authorization Cefllflr
cation, recognition of any applicable technical capabilities, or establish a principalragent relationship of
any form.

The data proVIded is belived to be accurate and applicable to the lJl'IlI(S) indicated on the cover. The research engineering, and
serVIce departments of Yamaha are continually strivmg to improve Yamaha products. Modifications are, therefore, ineVItable
and changes in specification are subject to change Without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributors Servrce DIVISION,

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black Wires connect to
this htis)

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck a_H work before you apply power
to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the Califoinia Health and Welfaie Agency (and possibly
other entities} to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAUELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact With solder or components located inside the enclosure of this product, wash your hands before handling
food.

WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:

GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN . LIVE

As the colours of the Wires in the mains lead of this apparatus may
not correspond With the coloured markings identifying the terminals in
your plug, proceed as follows:

The Wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked by the letter E
or by the safety earth symbol J:- or coloured GREEN and YELLOW.
The Wire which is coloured BLUE must be connected to the terminal
which is marked With the letter N or coloured BLACK.

The Wire which is coloured BROWN must be connected to the
terminal Which is marked With the letter L or coloured RED.

* This applies only to products distributed by YAMAHA KEMBLE
MUSIC (U.K.) LTD.

I WARNING

Components havmg special characteristics are marked A and must be replaced With parts havmg specification equal to those
originally installed.

QEDDEE'DQ §%Efi%?%fibl:§§7xfifi&vfi?o :iiifl?%b%érlit fifimfzbluéfififii

eater-era»
