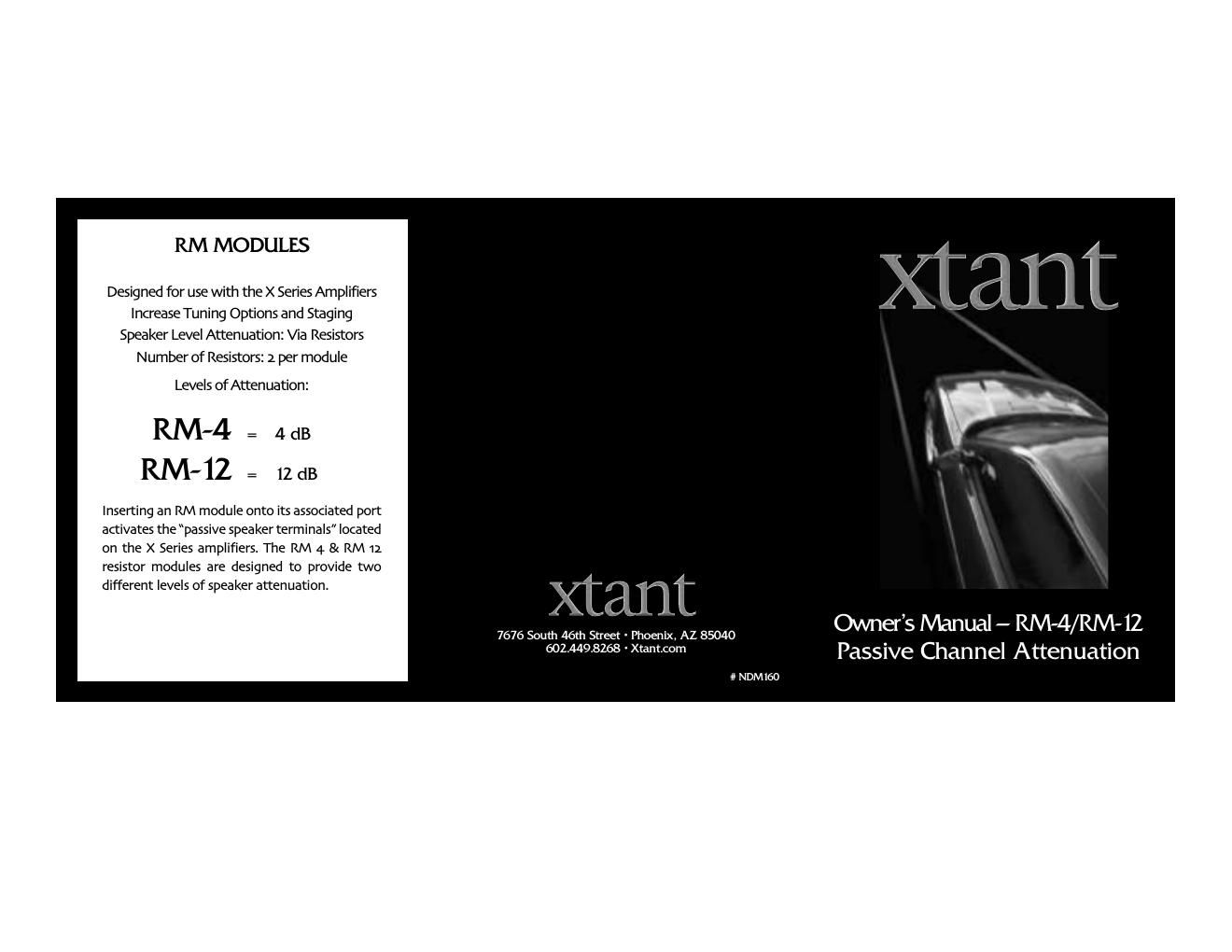

Xtant rm 4 12 owners manual

Page 1

INSTALLING AN RM MODULE STEP 1: Locating the Connectors INSTALLING AN RM MODULE STEP 2: Selecting an RM Module INSTALLING AN RM MODULE STEP 3: Plugging-in the RM MODULE A Turnoff amplifier Remove amplifier cover and locate the two RM Module receptacles B Align the RM Module and press it onto the port by applying downward pressure There is no polarity that needs to be observed Be sure that the connectors are fully seated C Turn amp on and audition the system If further adjustment is necessary! turn amp off and exchange the RM Module for a higher or lower value W Wa ar rn ni in ng g: : the RM Modules will become HOT during normal use To avoid burns! caution should be taken when exchanging an RM Module A Remove the RM Module from the packaging and inspect the circuit board B Locate the two connectors soldered on the bottom of the circuit board See illustration * C Simply align the two connectors with the two circuit board mounted receptacles located on the X Series amplifiers and plug the RM Module into place by applying downward pressure The RM Modules serve two purposes First they activate the passive speaker terminals on the Xtant amplifiers and! secondly! they add /! or *0 dB of attenuation to the speakers attached to the passive speaker terminals Normally! the rear fill speakers are attached to the passive speaker terminals but any speakers (ie tweeters / center channel) that you desire to attenuate (turn down) may be attached to these terminals The appropriate module is dependent upon speaker efficiency and the distance of the listener to the speakers In a mini or standard pickup truck! where the rear speakers are in relatively close proximity! the higher value RM *0 may be appropriate In a sedan or coupe! the RM / may be better suited The modules are easily interchanged and a little experimentation will help you determine the best value i il ll lu us st tr ra at ti io on n 55 RM MODULE BOARD CONNECTORS i il ll lu us st tr ra at ti io on n **
