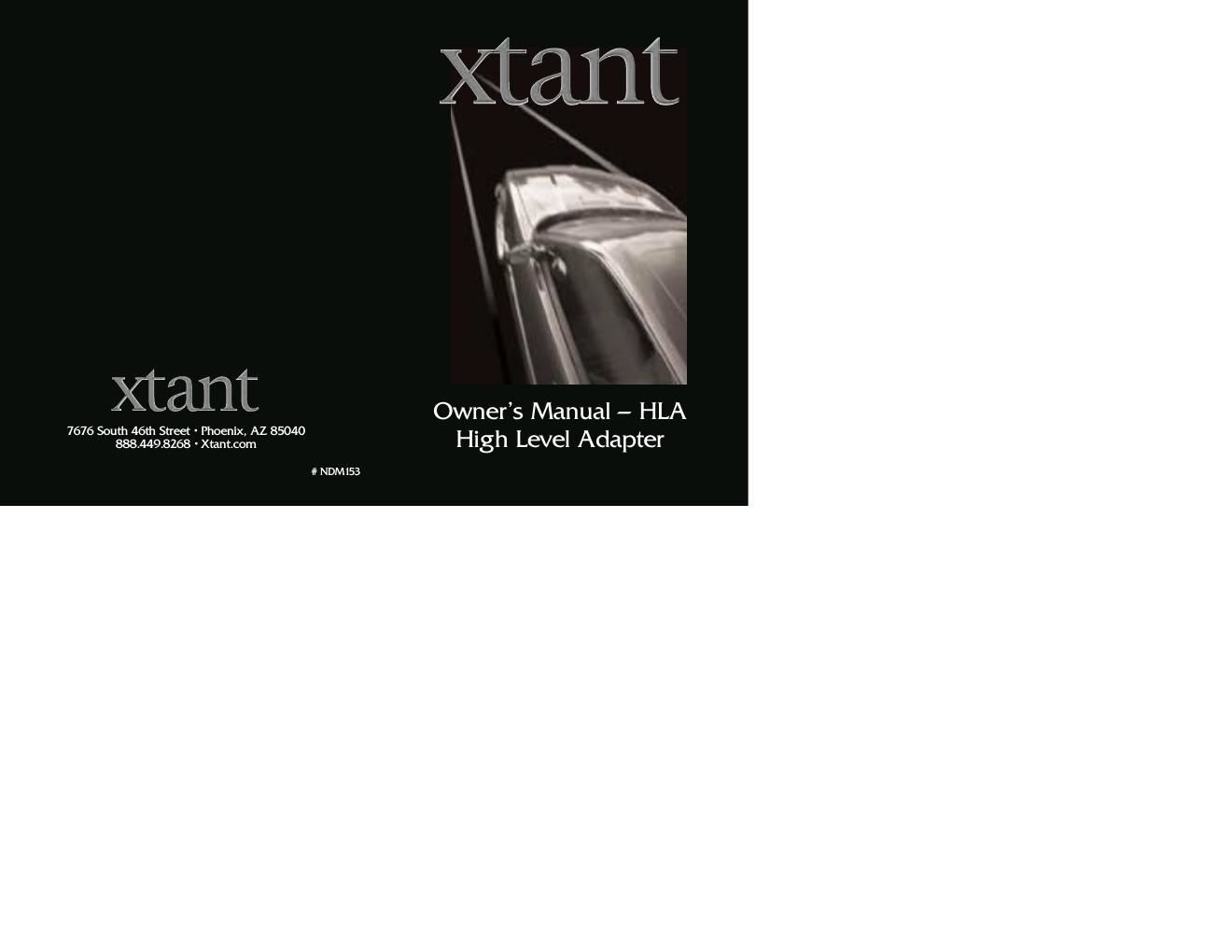

Xtant hla owners manual
This is the 2 pages manual for xtant hla owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from xtant hla owners manual (Ocr-read)
Page 1
INSTALLING THE HLA High Level Adapter This adapter allows you to connect a source unit with speaker level outputs to your Xtant amplifier Identify the output speaker leads from the source unit Connect the positive speaker lead to the red wire and the nega tive speaker lead to the black wire (We recommend securing the connection with solder) # Repeat step for all other speaker outputs being used INSTALLING THE HLA High Level Adapter % Plug the RCA end of the HLA into the amplifier being sure to connect the right speaker to the right input and the left speaker to the left input See diagram below + Set the B BA AL LA AN NC CE ED D LLI IN NE E switch to the O ON N position and turn the G GA AI IN N PPO OT T counterclockwise until it stops 2 Turn on the system With the volume control on the source unit at #/%4 adjust the gain pot to your desired listening level Left Red+ Red+Black _Black _ Right Inputs
