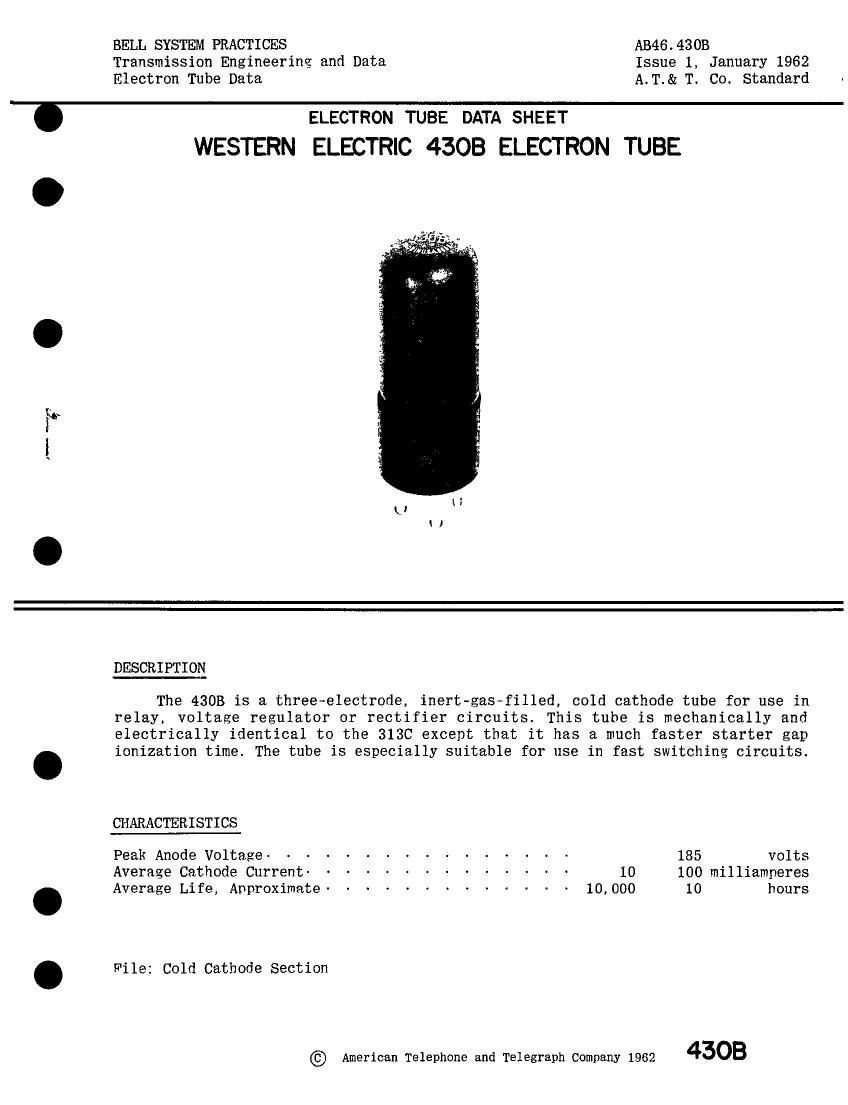

BELL SYSTEM PRACTICES AB46.4BOB
Transmission Engineering and Data Issue 1, January 1962
Electron Tube Data A.T.& T. Co. standard

ELECTRON TUBE DATA SHEET
WESTERN ELECTRIC 43GB ELECTRON TUBE

DESCRIPTION

The 4303 is a three-electrode, inert-gas-filled, cold cathode tube for use in
relay, voltage regulator or rectifier circuits. This tube is mechanically and
electrically identical to the 3130 except that it has a much faster starter gap
ionization time. The tube is especially suitable for use in fast switching circuits.

CHARACTERISTICS

Peak Anode Voltaze- - - - - - - - - - ~ - - ~ ~ - 185 volts
Average Cathode Current- ' ' - - - - - - - - - ~ . 10 100 milliamperes
Average Life, Approximate- ~ . ~ - - ~ - - - - - - 10,000 10 hours

File: Cold Cathode Section

© American Telephone and Telegraph Company 1962 4303

Page 2

4303 - PAGE 2

MAXIMUM RATINGS, Absolute System

Forward Peak Anode Voltage - - - ~ . - . - ~ - - - - - 185 volts
Forward Cathode Current Peak - - - - . - - - ~ - - ~ ~ ~ . - ~ 100 milliamperes
Average. . . . . . . . . . . . . . . . . . . . . . 35 milliamperes
Averaging Time . ~ ~ - - - - - - - - - ~ 2 seconds
Inverse Peak Anode Current(Note 2) - - - - - - ~ . - - - 5 milliamperes
Ambient Temperature Limits - - ~ - - - - - - - - . ~ - -55 to +85 centigrade

ELECTRICAL DATA, Throughout Life

Min. Bogey Max.

starter Breakdown Voltage (Note 3). . . - - . - - - 65 70 89 volts
Starter Voltage Drop at 20 Milliamperes - - - - - - 52 60 74 volts
Anode Voltage Drop at 20 Milliamperes - . . - - - 68 75 90 volts
Transfer Current- - - ~ ~ - - - - - . - See curve - Fig. 3

Ionization Time, Starter Gap(Note 4)- - .

Average (Note 5) - ~ - - . - - - - ' . - - - - 0.07 0.20 milliseconds
Maximum- - - - - . - - - - - - See curve - Fig. 5, Page 4
Deionization Time, Approximate

Starter Gap - - . ' - - - - - - - - - - - 3 - milliseconds
Main Gap - - - - 10 - milliseconds
Inverse Current at -120 Volts Anode Potential(Note 6) - - 3 milliamperes

MECHANICAL DATA

Mounting Position . . . . . . . . . . . . . . . . . . . . . . . . . Any
Net Weight, Approximate- - - - - - - -1 Ounce
Dimensions and pin connections shown in outline drawing on page 4.

HANDLING

This tube contains a small amount of krypton-85 gas which is a by-product
radioactive material. The amount of krypton-85 is less than five microcuries. which
is too small an amount to require any special care in use.

Atomic Energy Commission regulations require that the individual tube carton
for tubes containing by-product radioactive material be appropriately marked. The
marking includes the statement that tube disposal should be in approved manner.

Approved instructions for disposal of tubes containing krypton-85 are as
follows;

Tubes to be disposed of should be broken or crushed in a well
ventilated place releasing any resulting vapors to the outside
atmosphere. The residual broken or crushed tubes should be dis-
posed of in a normal public trash disposal system. Tubes should be
disposed of at a rate of not more than 100 each week from any one
location. Avoid breathing vapors from broken tubes.

Note 1: In the Absolute System" the maximum ratings specified are limiting values above which the
serviceability of the device may be impaired from the viewpoint of life and satisfactory
performance. Maximum ratings. as such. do not constitute a set of operating conditions and
all values may not, therefore, be attained simultaneously.

Note 2: Sufficient resistance must be used in series with the tube to assure that the electrode
currents do not exceed their maximum rated values.
