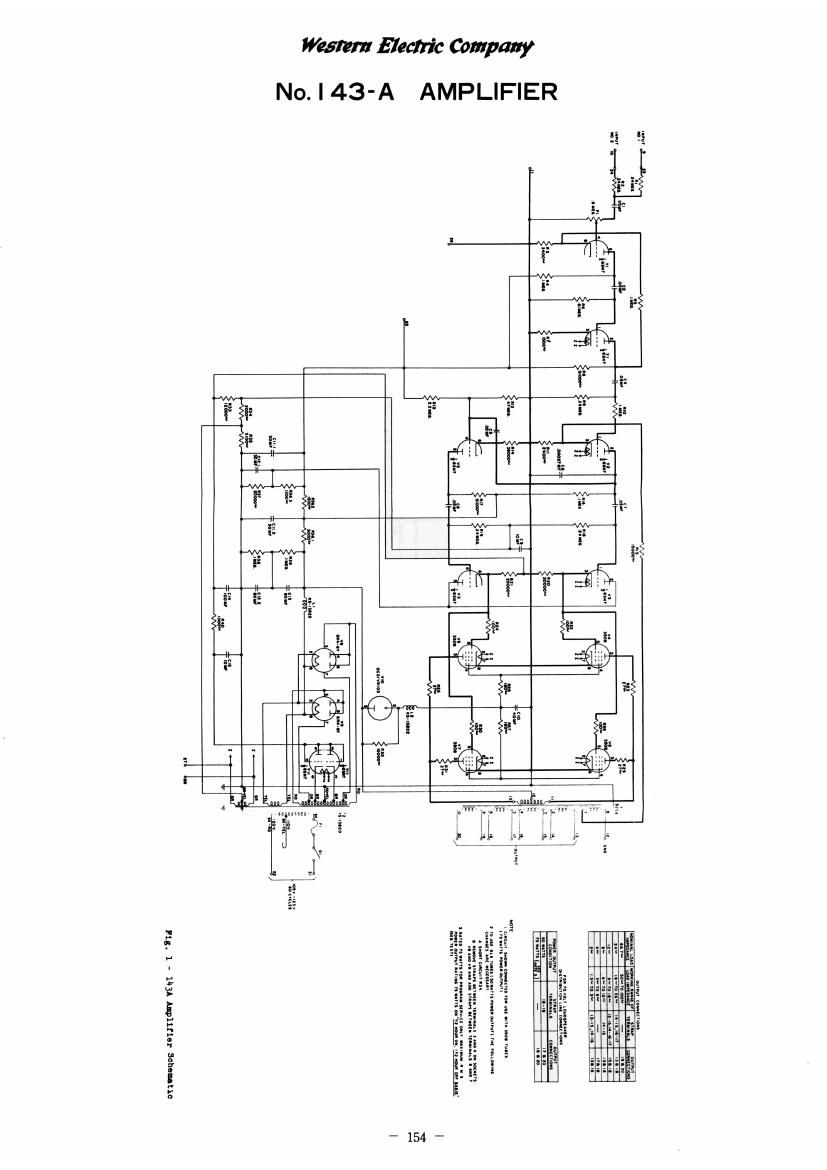

Western electric 143 a schematic
This is the 8 pages manual for western electric 143 a schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from western electric 143 a schematic (Ocr-read)
Page 2
Western Hectric Company
No. | 43-A AMPLIFIER
The Western Electric 143A Amplifier is a high quality, medium
gain power amplifier, intended as a basic amplifier for public ad-
dress sound distribution systems and wired program service. It has
two high impedance input connections controlled by a master volume
control; and the chassis has provisions for the addition of pre-
amplifiers and apparatus units for various input combinations.
1 Cha cte cs
3 1 db 50 to 15,000 cycles.
-30 dhm
See Output Power
0 to 250,000 ohms
1.5 to l70ohms
70 volts
52 db from 600 ohm source
Continuously variable
75 watts as supplied with Western
Electric 3508 Tubes in the output
stage, with less than 5% distortion
over the range of 50 to 7500 cycles.
50 watts, 5% distortion, 50 to 7500
cycles when reconnected for 616 Tubes
in the output stage.
155
