Page 1

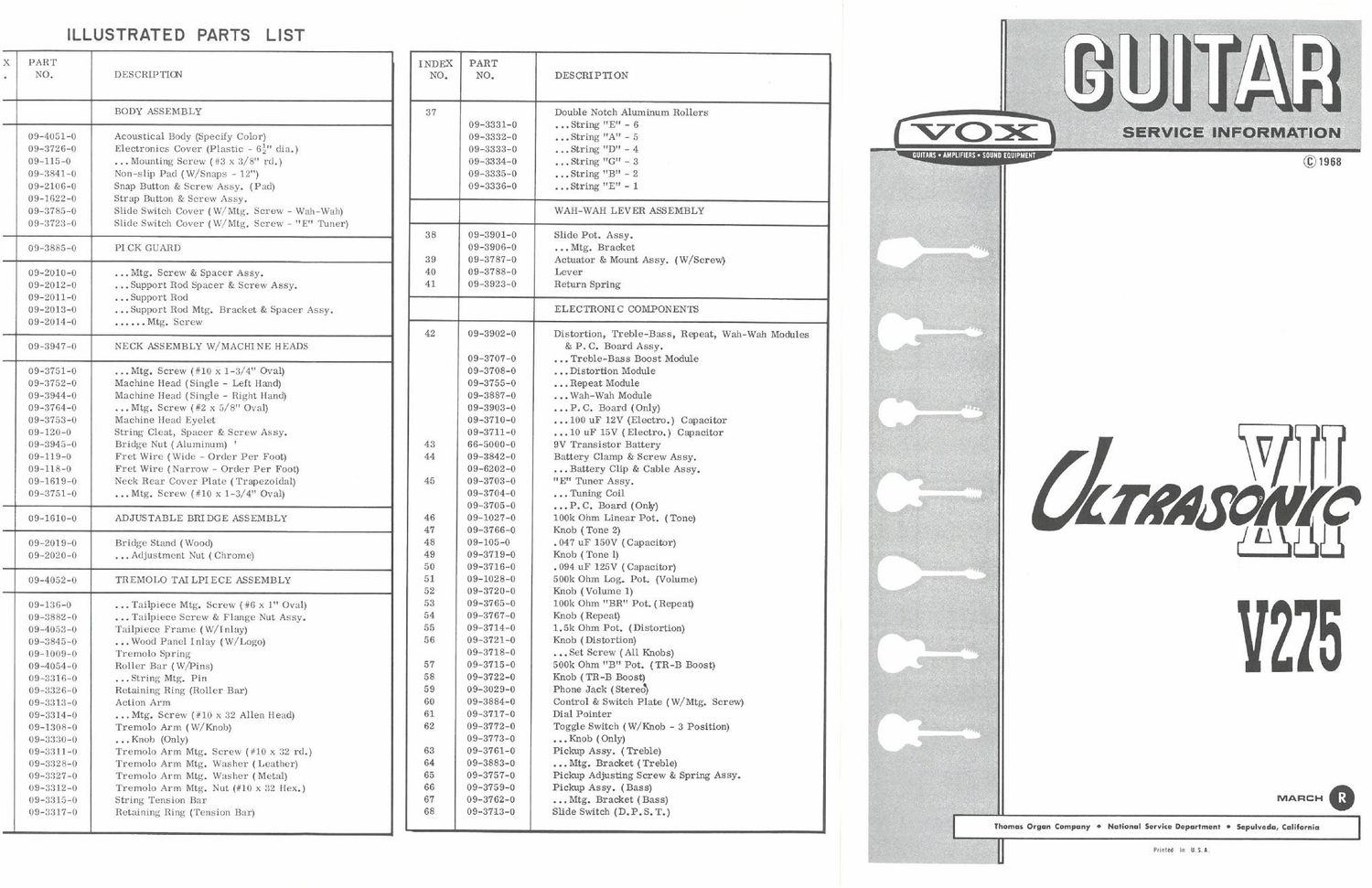

ILLUSTRATED PARTS LIST

PART INDEX PART
NO. DESCRIPTICN NO. NO. DESCRIPTION
BODY ASSEMBLY 37 Double Notch Aluminum Rollers
09-3331-0 . . . String "E" - 6
09-4051-0 Acoustical Body (Specify Color) 09-3332-0 . . . String A" - 5
09-3726-0 Electronics Cover (Plastic v 6;" din.) 09-3333-0 . . .String "D" - 4
09-115-0 . . . Mounting; Screw (#3 x 3/8" rd.) 09-3334-0 . . .String "G - 3
09-3841-0 Non-slip Pad (W/Snaps - 12") 09-3335-0 . ..String B" - 2
092106-0 Snap Button 8: Screw Assy. (Pad) 09-3336-0 . ..String "E" - 1
09-1622-0 Strap Button & Screw Assy.
09-3785-0 Slide Switch Cover (W/MtO'. Screw - Wan-Wan) WAH-WAH LEVER ASSEMBLY
09-3723-0 Slide Switch Cover (W/Mtg. Screw ~ "E" Tuner)
38 09-3901-0 Slide Pot. Assy.
09-3885-0 PI CK GUARD 09-3906-0 . . . Mtg. Bracket
39 09-3787-0 Actuator & Mount Assy. (W/Screw)
09-2010-0 . . . Mtg. Screw & Spacer Assy. 40 09-3783-0 Lever
09<2012-0 . Support Rod Spacer & Screw Assy. 41 09-3923-0 Return Spring
09-2011-0 . Support Rod
09-2013-0 . Support Rod Mtg. Bracket X; Spacer Assy. ELECTRONIC COMPONENTS
09-2014-0 ......Mtg. Screw
42 09-3902-0 Distortion, Treble-Bass, Repeat, Wah-Wah Modules
09~3947-0 NECK ASSEMBLY W/MACHINE HEADS 8t P. C. Board Assy.
09-3707-0 . . . Treble-Bass Boost Module
09-13751-0 . . . Mtg. Screw (#10 x 1-3/4" Oval) 09-3708-0 . ..Distortion Module
09-3752-0 Machine Head (Single - Left Hand) 09-3755-0 . ..Repeat Module
09-3944-0 Machine Head (Single - Right Hand) 09-3887-0 . ..Wah-Wah Module
09-3764-0 . . . Mtg. Screw (#2 x 5/8" Oval) 09-3903-0 . . . P. C. Board (Only)
09-15753-0 Machine Head Eyelet 09-3710-0 . . . 100 uF 12V (Electro.) Capacitor
09-120-0 String,r Cleat, Spacer & Screw Assy. 09-3711-0 . .. 10 uF 15V (Electro.) Capacitor
09-:3945-0 Bridge Nut (Aluminum) 43 66-5000-0 9V Transistor Battery
09-119-0 Fret Wire (Wide - Order Per Foot) 44 09-3842-0 Battery Clamp 8; Screw Assy.
09418-0 Fret Wire (Narrow - Order Per Foot) 09-6202-0 . ..Battery Clip S; Cable Assy.
09-1619-0 Neck Rear Cover Plate (Trapezoidal) 45 09-3703-0 "E" Tuner Assy.
09-3751-0 . . . Mtg. Screw (#10 x 1-3/4" Oval) 09-3704-0 . . . Tuning Coil
09-3705-0 . . . P. C. Board (Only)
09-1610-0 ADJUSTABLE BRIDGE ASSEMBLY 46 09-1027-0 100k Ohm Linear Pot. (Tone)
47 09-3766-0 Knob (Tone 2)
09-2019-0 Bridge Stand (Wood) 48 09-105-0 .047 uF 150V (Capacitor)
09-2020-0 . . . Adjustment Nut (Chrome) 49 09-3719-0 Knob (Tone l)
50 09-3716-0 .094 uF 125V (Capacitor)
09-40524) TREMOLO TAI LPI ECE ASSEMBLY 51 09-1028-0 500k Ohm Log. Pot. (Volume)
52 09-3720-0 Knob (Volume 1)
09-136-0 .. . Tailpiece Mtg. Scrcw (#6 x 1" Oval) 53 09-3765-0 100k Ohm BR" Pot- (Repeat)
09-3882-0 ...Tnilpicce Screw & Flange Nut Assy. 54 09-3767-0 Knob (R8peat)
09-4053-0 Tailpiece Frame (W/Inlay) 55 09-3714-0 1.5k Ohm Pot. (Distortion)
09-3845-0 ...Wcod Panel Inlay (W/Logo) 56 09-3721-0 Knob (Distortion)
09-10094) Tremolo Spring 09-3718-0 . ..Set Screw (All Knobs)
09-40544) Roller Bar (W/Pins) 57 09-3715-0 500k Ohm "B" Pot. (TR-B Boost)
09-3310-0 . . .String Mtg. Pin 58 09-3722-0 Knob (TR-B Boost)
09-3326-0 Retaining Ring (Roller Bar) 59 09-3029-0 Phone Jack (Stereo)
09~3313-0 Action Arm 60 09-3884-0 Control 8; Switch Plate (W/Mtg. Screw)
09-3314-0 . . . Mtg. Screw (#10 x 32 Allen Head) 61 09-3717-0 Dial Pointer
09-1308-0 Tremolo Arm (W/Knob) 62 09-3772-0 Toggle Switch (W/Knob - 3 Position)
. . . Knob (Only) 09-3773-0 . . . Knob (Only)
Tremolo Arm Mtg. Screw (#10 x 32 rd.) 63 09-3761-0 Pickup Assy. (Treble)
Tremolo Arm Mtg. Washer (Leather) 64 09-3883-0 . ..Mtg. Bracket (Treble)
Tremolo Arm Mtg. Washer (Metal) 65 09-3757-0 Pickup Adjusting Screw 8; Spring Assy.
09-3312-0 Tremolo Arm Mtg. Nut (#10 x 32 Hex.) 66 09-3759-0 Pickup Assy. (Bass)
09-3 . String Tension Bar 67 09-3762-0 . . . Mtg. Bracket (Bass)
09-33174) Retaining Ring (Tension Bar) 68 09-3713-0 Slide Switch (D.P.S. T.)

V
Tilififi

V275

MARCH 0

Thomas Organ Company 0 Nulionnl Service Department 0 Sepulvedu, California

Plinlld In U S.

Page 2

38-5656-0
