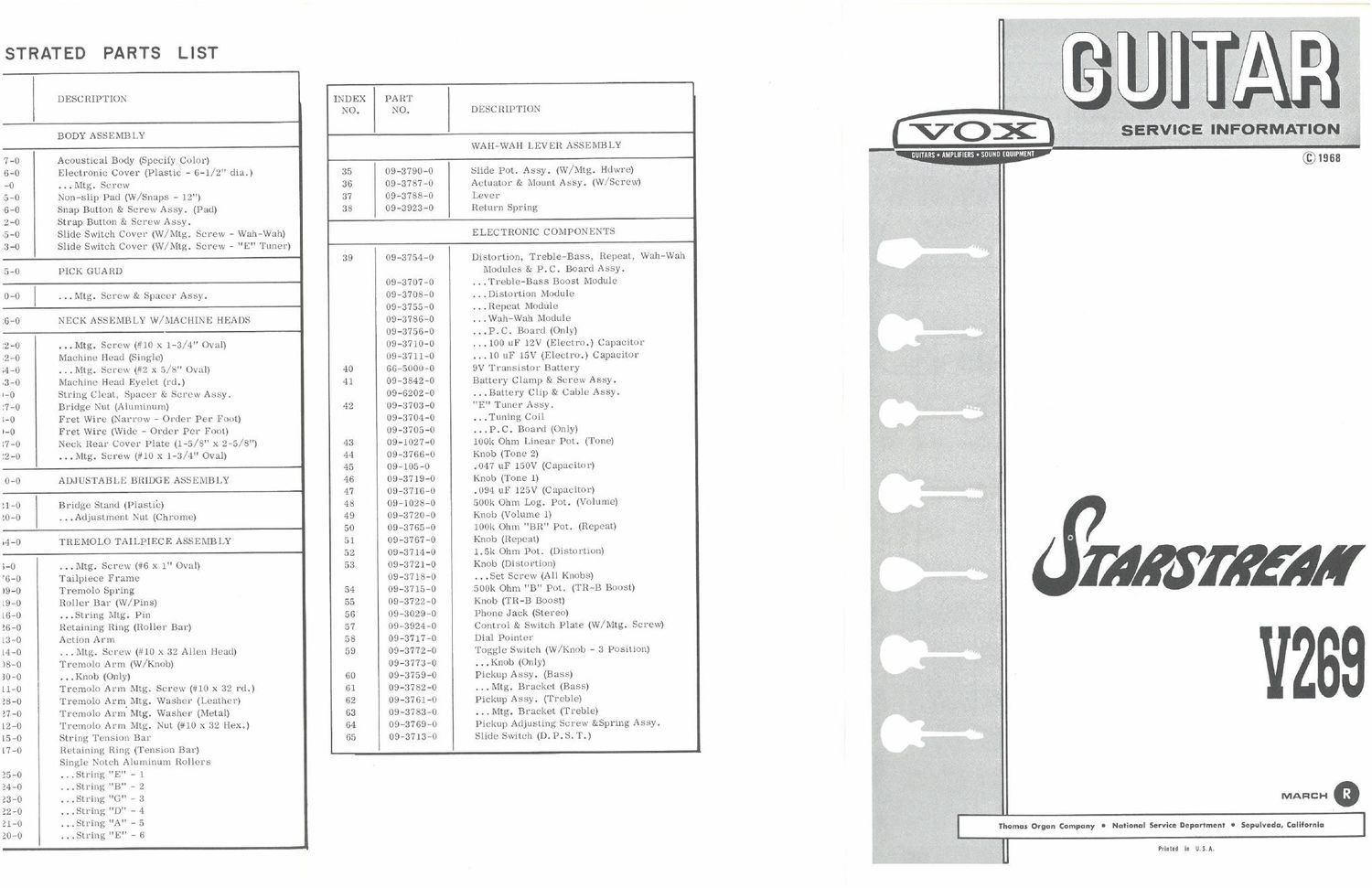

Vox starstream service manual

Page 1

STRATED PARTS LIST

DESCRIPTION

BODY ASSEMBLY

7-0 Acoustical Body (Specify Color)

6-0 Electronic Cover (Plastic - 6-1/2 dia.)

-0 . . . Mtg. Screw

15-0 Non-slip Pad (W/Snaps - 12")

16-0 Snap Button & Screw Assy. (Pad)

2-0 Strap Button & Screw Assy.

15-0 Slide Switch Cover (W/Mtg. Screw - Wah-Wah)
3-0 Slide Switch Cover (W/Mtg. Screw - " " Tuner)
5-0 PICK GUARD

0-0 . . . Mtg. Screw KL Spacer Assy.

164) NECK ASSEMBLY W/MACIIINLC HEADS

.2 0 . . .Mtg. Screw (#10 X 1-3/4" Oval)
12-0 Machine Head (Single)
4 0 . . .Mtg. Screw (#2 X 5/8 Oval)

0

13- Machine Head Eyelet (rd.)

r~0 String Clout, Spacer & Screw Assy.
:7-0 Bridge Nut (Aluminum)

;-0 Fret Wire (Narrow - Order Per Foot)
)-0 Fret Wire (Wide - Order Per Foot)
:7-0 Neclx Rear Cover Plate (1-5/8" x 2-5/5")
12-0 . . .Mtg. Screw (#10 x 143/4" Oval)
0-0 ADJUSTABLE BRIDGE ASSEMBLY
31-0 Bridge Stand (Plastic)

30-0 . . .Adjustment Nut (Chrome)

:4»0 TREMOLO TAILPIECE ASSEMBLY
1-0 . . . Mtg. Screw (#6 x 1" Oval)

G-O Tailpiece Frame

J9-0 Tremolo Spring;

19%) Roller Bar (W/Pins)

lG-U . . . String Mtg. Pin

36-0 Retaining Ring (Roller Bar)

13-0 Action Arm

14-0 . . . Mtg. Screw (#10 x 32 Allen Head)

)8 0 Tremolo Arm (W/Knob)

30 0 . . . Knob (Only)

11 0 Tremolo Arm Mtg. Screw (#10 x 32 rd.)
28-0 Tremolo Arm Mtg. Washer (Leather)

37 0 Tremolo Arm Mtg. Washer (Metal)

12 0 Tremolo Arm Mtg. Nut (#10 x 32 Hex.)
15-0 String Tension Bar

17»(l Retaining Ring (Tension Bar)

Single Notch Aluminum Rollers

25-0 ...String "E - 1
24-0 .. .String "B - 2
23-0 . . .String "G" v 3
22~0 . . .String "D - 4
2.1»0 . . .String "A" - 5
2070 . . .String "E" - 6

INDEX PART
NO. NO. DESCRIPTION
WAH-WAH LEVER ASSEMBLY
35 09-3790-0 Slide Pot. Assy. (\V/Mtg. Hdwre)
36 09-3787-0 Actuator Ex Mount Assy. (W/Screw)
37 09-3788-0 Lever
38 09-3923-0 Return Spring
ELECTRONIC COMPONENTS
39 09-3754-0 Distortion, Trcble»Bass, Repeat, Wah-Wah
Modules Kr P.C. Board Assy.
09-37074 . . .Treble-Bass Boost Module
09-3708-0 . . . Distortion Module
09737554) . . . Repeat Module
09-3786-0 . . . Wah-Wah Module
09-3756-0 ..P.C. Board (Only)
09-3710-0 . . . 100 Lil 12V (Electro.) Capacitor
09-3711-0 . . . 10 uF 15V (Electro.) Capacitor
40 66-50004) 9V Transistor Battery
41 09-3542-0 Battery Clamp & Screw Assy.
09-6202-0 . . .Battery Clip Kt Cable Assy.
42 09-3703-0 "E" Tuner Assy.
09-3704-0 . . .Tuning Coil
09-3705-0 . .11). C . Board (Only)
43 09-1027-0 100k Ohm Linear Pot. (Tone)
44 09-3766-0 Knob (Tone 2)
45 09-105-0 .047 uF 150V (Capacitor)
46 09-3719-0 Knob (Tone i)
47 09417164) .094 ill 125V (Capacitor)
~18 09-10254) 500k Ohm Log. Pot. (Volume)
49 09-37204) Knob (Volume 1)
50 09-3765-0 100k Ohm "BR" Pot. (Repeat)
51 09-3767-0 Knob (Repeat)
52 09-3714-0 1.5k Ohm Pot. (Distortion)
53 09-3721-0 Knob (Distortion)
09-3718-0 . . . Set Screw (All Knobs)
54 09-3715-0 500k Ohm "B" Pot. (TR-B Boost)
55 09-3722-0 Knob (TR-B Boost)
56 09-30290 Phone Jack (Stereo)
57 09-3924-0 Control 8; Switch Plate (W/Mtg. Screw)
58 09-37174) Dial Pointer
59 09-3772-0 Toggle Switch (W/Knob - 3 Position)
09-377340 . . . Knob (Only)
60 09-3759v0 Pickup Assy. (Bass)
(31 09-3782-0 .. . Mtg. Bracket (Bass)
62 09-3761-0 Pickup Assy. (Treble)
63 09-3783-0 . . . Mtg. Bracket (Treble)
64 09-3769-0 Pickup Adjusting Screw &Spring Assy.
65 09-371370 Slide Switch (D. P. S. T.)

SERVICE INFORMATION:

EU) IRS - AMPFRllIES - SOUND ED|EIJPMN :

MARCH 0

'I'Ilomus Organ Company . Nalional Service Department . Sepulvedu, California

ll

Printed in USA.
