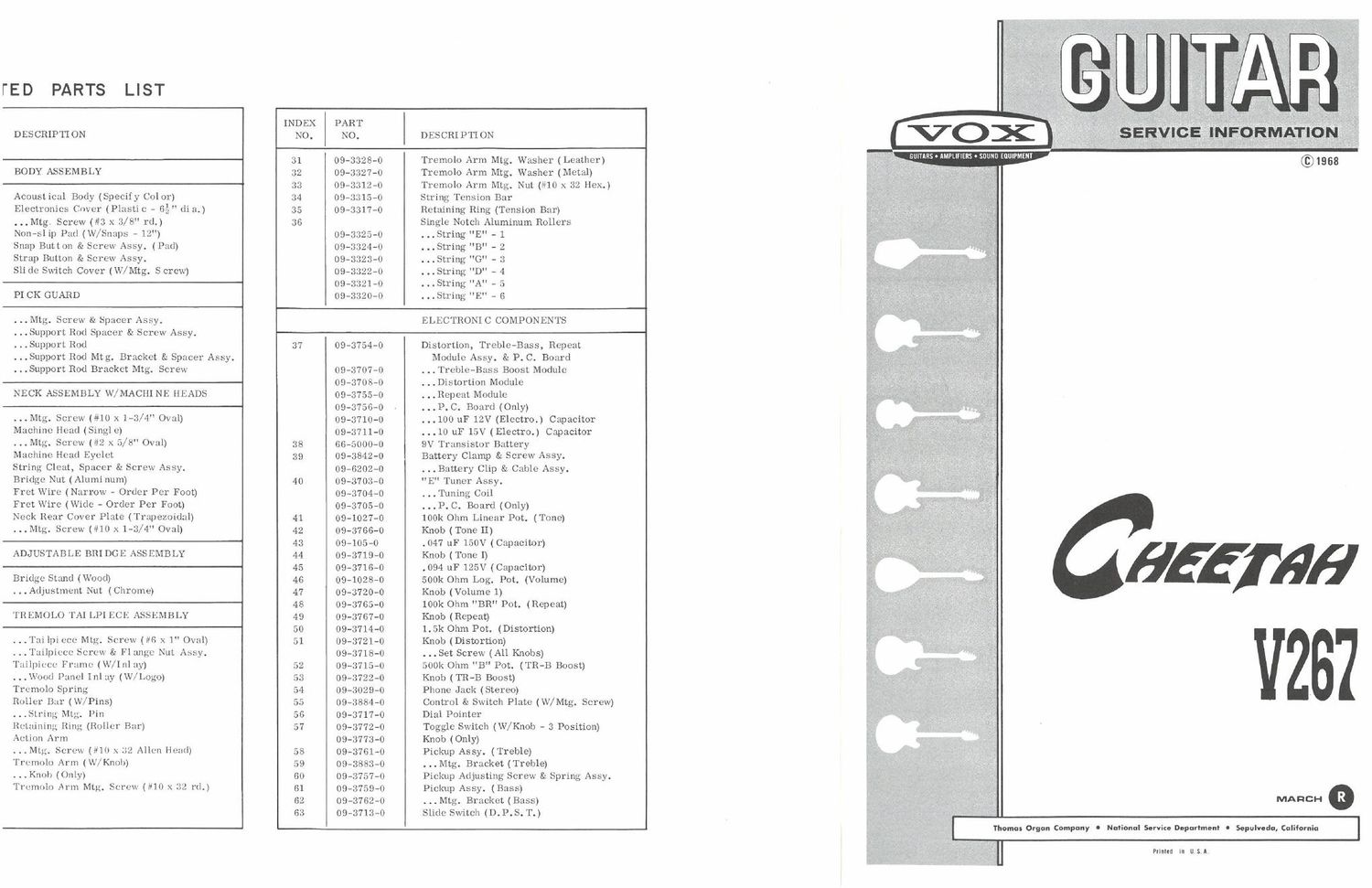

I'ED PARTS LIST

D ES CRIP TI ON

BODY ASSEMBLY

Acoustical Body (Specify Color)
Electronics Cover (Plastic - 6;" din.)
. ..Mtg Screw (#3 x 3/8" rd.)
Non-slip Pad (W/Snaps - 12")

Snap Button 8; Screw Assy. (Pad)
Strap Button 8; Screw Assy.

Slide Switch Cover (W/Mtg. S crew)

PICK GUARD

. . . Mtg. Screw Kz Spacer Assy.

. . . Support Rod Spacer 8; Screw Assy.

. . . Support Rod
. . Support Rod Mt u. Bracket 8; Spacer Assy.
. .Support Rod Bracket Mtg. Screw

NECK ASSEMBLY W/MACHI NE HEADS

. . . Mtg. Screw (#11) x 1-3/4 Oval)
Machine llead (Singl e)

. . . Mtg. Screw (#2 x 5/8" Oval)
Machine Head Eyelet

String; Clout, Spacer Ks Screw Assy.
Bridge Nut (Aluminum)

Fret Wire (Narrow A Order lcr Foot)
Fret Wire (Wide - Order Per Foot)
Neck Rear Cover Plate (Trapezoidal)
. . . Mtg. Screw (H10 x 1-3/4 Oval)

ADJUSTABLE BRIDGE ASSEMBLY

Bridge Stand (Wood)
. . . Adjustment Nut (Chrome)

IREMOLO TAI LPI ECE ASSEMBLY

.Tai lpi ece Mtg. Screw (#6 x 1" Oval)
. . lailpiece Screw 8: Flange Nut Aesy.
'lailpieeo Frame (W/I nl ay)
. . . Wood lanel lnl ay (W/Logo)
Tremolo Sprint;
Roller Bar (W/Pins)
. . . String Mtg. lin
Retaining Ring; (Roller Bar)
Action Arm
. . . Mtg. Screw (#10 x 32 Allen lleail)
Tremolo Arm (W/Knoh)
. . . Knob (Only)
Tremolo Arm Mtg. Screw (#10 x 32 rd.)

INDEX PART
NO. NO. DESCRI PTI ON
31 09-3328-0 Tremolo Arm Mtg. Washer (Leather)
32 09-3327-0 Tremolo Arm Mtg. Washer (Metal)
33 09-3312-0 Tremolo Arm Mtg. Nut (#10 x 32 Hex.)
34 09~3315-0 String Tension Bar
35 09-3317-0 Retaining Ring (Tension Bar)
3 Single Notch Aluminum Rollers
09-3325-0 . . . String E" - 1
09-33244) . . .String "B" - 2
09-33234) . . .String "G" - 3
09-3322-0 . String D" - 4
(19-3321-() . . . String "A" - 5
09-3320-0 . String "E" - G
ELECTRONIC COMPONENTS
3'7 09-3754-0 Distortion, Treble-Bass, Repeat
Module Assy. K; P. C. Board
()9-3707-0 . . . Treble-Bass Boost Module
09-37084) . . . Distortion Module
09-3755-0 . . . Repeat Module
09-3 -0 . . . P. C. Board (Only)
09-3710-0 . . . 100 uF 12V (Electra) Capacitor
09-3711-0 . ..10 uF 15V (Electro.) Capacitor
38 GG-SUUO-U 9V Transistor Battery
39 09-3842-0 Battery Clamp & Screw Assy.
09-6202-0 . . . Battery Clip & Cable Assy.
4U 09-3703-0 "' Tuner Assy.
09-3704-0 . .. Tuning Coil
09-3705-0 . . . P. C. Board (Only)
41 09-1027-0 100k Ohm Linear Pot. (Tone)
42 09-3766-0 Knob (Tone II)
43 09-1054) .047 uF 150v (Capacitor)
44 09-3719-0 Knob (Tone l)
45 09-3716-0 .094 111 125V (Capacitor)
46 09-1028-0 500k Ohm Log. Pot. (Volume)
47 09-3720-0 Knob (Volume 1)
48 09-37654) 100k Ohm "BR" Pot. (Repeat)
49 09-3767-0 Knob (Repeat)
50 09-3714-0 1.5k Ohm Pot. (Distortion)
31 09-3721-0 Knob (Distortion)
09-3718-0 . . . Set Screw (All Knobs)
52 09~3715-0 500k Ohm "B" Pot. (TRvB Boost)
53 09-3722-0 Knob (TR-B Boost)
54 09-3029-0 Phone Jack (Stereo)
55 09-3884-0 Control & Switch Plate (7th Screw)
56 09-3717-0 Dial Pointer
57 09-3772-() Toggle Switch (W/Knob - 3 Position)
09-3773-0 Knob (Only)
58 09-3761-0 Pickup Assy. (Treble)
59 09-38834) . . . Mtg. Bracket (Treble)
60 09-3757-0 Pickup Adjusting Screw 8: Spring Assy.
61 09-3759-0 Pickup Assy. (Bass)
62 09-3762-0 . . . Mtg. Bracket (Bass)
63 0973713-0 SLide Switch (D. P.S. T.)

SERVICE SINFO'RMATIOH» ,
©1955

6,6551'56
V267

MARCH 0
