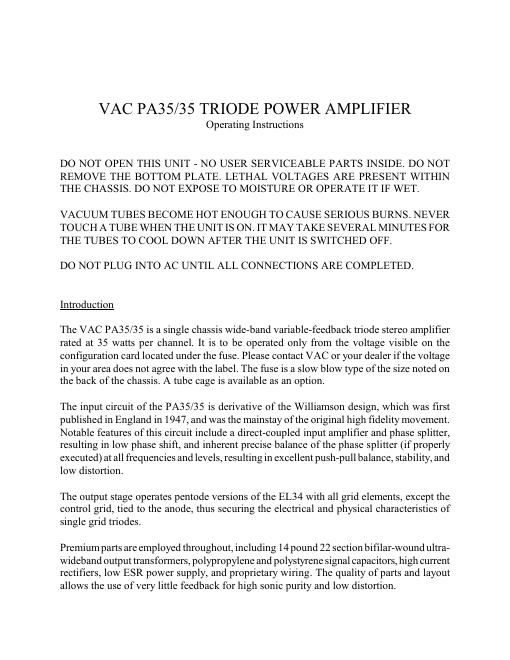

VAC PA35/35 TRIODE POWER AMPLIFIER

Operating Instructions

DO NOT OPEN THIS UNIT - NO USER SERVICEABLE PARTS INSIDE. DO NOT
REMOVE THE BOTTOM PLATE. LETHAL VOLTAGES ARE PRESENT WITHIN
THE CHASSIS. DO NOT EXPOSE TO MOISTURE OR OPERATE IT IF WET.

VACUUM TUBES BECOME HOT ENOUGH TO CAUSE SERIOUS BURNS. NEVER
TOUCH A TUBE WHEN THE UNIT IS ON. IT MAY TAKE SEVERAL MINUTES FOR
THE TUBES TO COOL DOWN AFTER THE UNIT IS SWITCHED OFF.

DO NOT PLUG INTO AC UNTIL ALL CONNECTIONS ARE COMPLETED.

Introduction

The VAC PA35/35 is a single chassis wide-band variable-feedback triode stereo amplifier
rated at 35 watts per channel. It is to be operated only from the voltage visible on the
configuration card located under the fuse. Please contact VAC or your dealer if the voltage
in your area does not agree with the label. The fuse is a slow blow type of the size noted on
the back of the chassis. A tube cage is available as an option.

The input circuit of the PA35/35 is derivative of the Williamson design, which was first
published in England in 1947, and was the mainstay of the original high fidelity movement.
Notable features of this circuit include a direct-coupled input amplifier and phase splitter,
resulting in low phase shift, and inherent precise balance of the phase splitter (if properly
executed) at all frequencies and levels, resulting in excellentpush-pull balance, stability, and
low distortion.

The output stage operates pentode versions of the EL34 with all grid elements, except the
control grid, tied to the anode, thus securing the electrical and physical characteristics of
single grid triodes.

Premiumparts are employed throughout, including 14 pound 22 section bifilar-wound ultra-
wideband output transformers, polypropylene and polystyrene signal capacitors, high cmrent
rectifiers, low ESR power supply, and proprietary wiring. The quality of parts and layout
allows the use of very little feedback for high sonic purity and low distortion.
