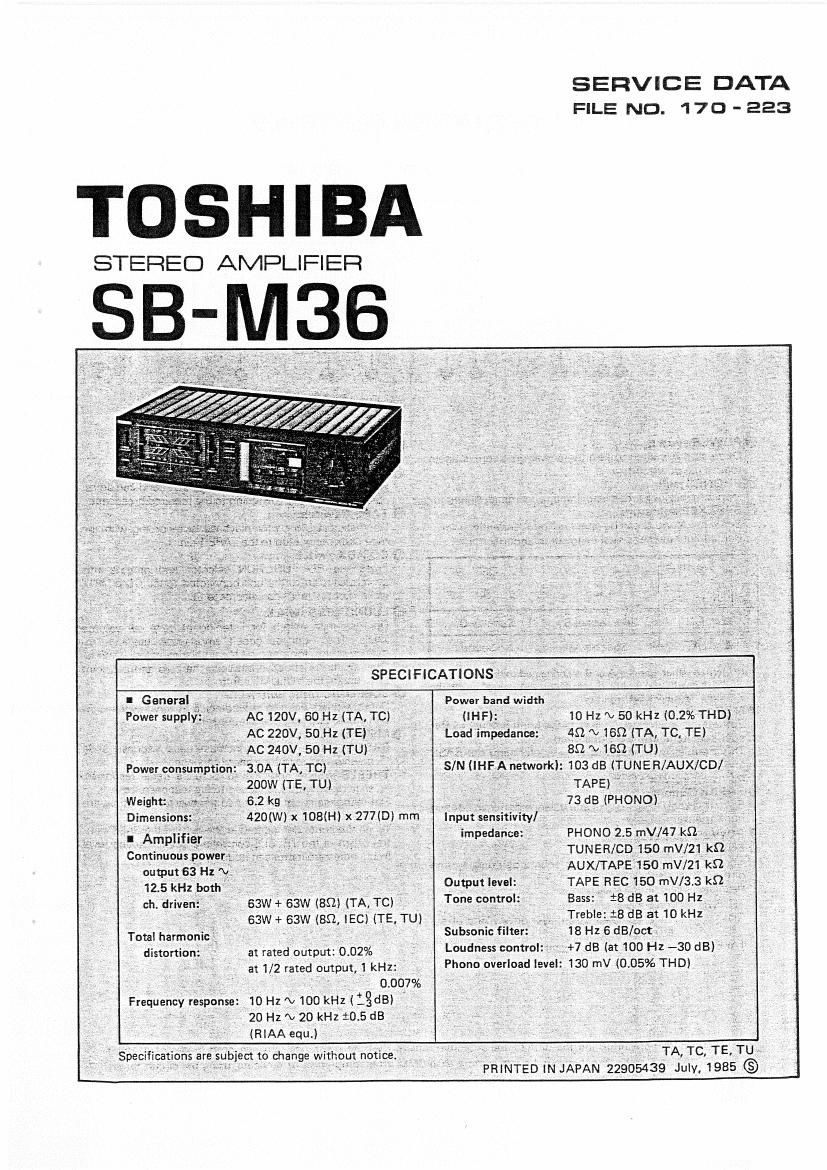

SB-M36

1. OPERATING CONTROLS

0 POWER switch
Depress this swrtch to turn the power on, depress again
to turn the power off.
0 PHONES jack
Plug into this jack when listening through headphones.
0 SPEAKER selectors
Speakers A and B can be operated independently.
Relation of speaker switches to sound output.

Switch A ON OFF

Switch 8 1
.. ON Speakers A, B Speaker 8
I. OFF Speaker A No sound

Note: When either speaker A or Bis connected to the amplifier, if
both switches A and B are depressed, sound from the
speaker will be cut off,

0 MFR switch

Setting this switch to ON inserts the Multi Frequency Re-
sponsor circuit into the signal»path.

This permits adjustment of tone by changing the BASS
and/or TREBLE controls, To obtain flat response, push to
release the switch, OFF setting.

9 BALANCE control

Slide this knob to adjust volume balance between left and
right speakers.

9 POWER indicator

0 FUNCTION selectors

Choose the desired programme source by pressing one
of these buttons:

PHONO: For a turntable

TUNER: For a tuner

CD: For a compact disc player or any kind of au-
dio equipment.

TAPE 2: For the tape deck connected to the TAPE 2

jacks.

0 VOLUME control
Turn this knob to adjust the volume level.
0 PHONO REC switch
When this switch is pressed, the record sound can be re-
corded while you are listening to the required broadcast.
m TAPE 1 switch
Depress this switch for playback or recording with the
tape deck connceted to the TAPE 1 jacks.
fl) CD/AUX switch
Press the CD FUNCTlON selector and operate this
switch to listen to the unit connected to the CD or AUX
jacks. Set the function selector to CD.

9 LOUNDNESS switch
Depress this switch for listening at very low volume
levels. The loudness circuit emphasizes the low fre-
quency region for a natural tonal balance at low volume.
(This switch is effective between the zero and midpoint
positions of the VOLUME control.)
(B SUBSONIC filter switch
Depress this switch to reduce noise at very low frequen-
cres caused by warps in a record.
@ MFR controls
BASS - Slide upwards to increase bass response, slide
downwards to reduce bass response.
TREBLE - Slide upwards to increase treble response.
slide downwards to reduce treble response.
Flat response is obtained when the two tone controls are
set to their zero positions.
When the controller located at the right of the BASS con-
trol or left of the TREBLE control are set. the sound level
frequencies are increased or decreased.

CAUTION: Before returning the unit to the customer, Check that the resistance between both blades of AC PI"?
and any accessible metal parts is more than 3MB after completion of servicing, using the circuit tester.

(TA Model only)
