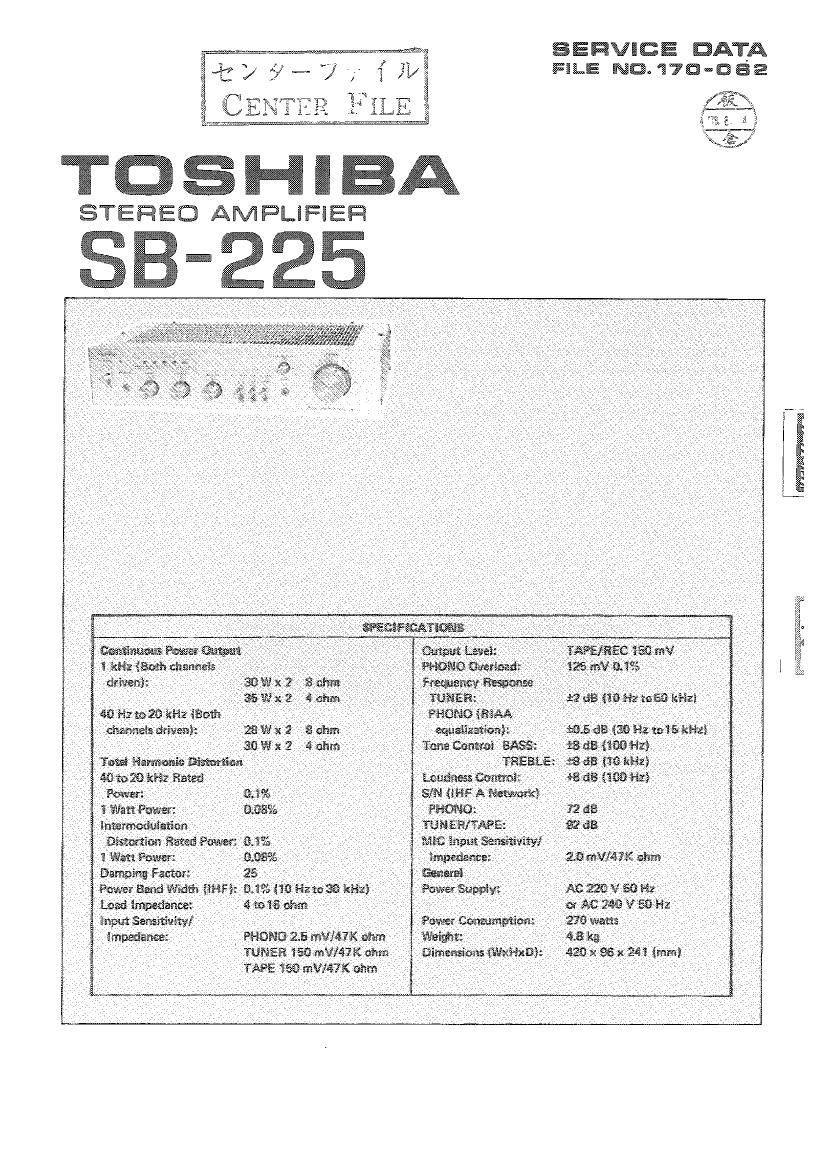

Toshiba SB 225 Service Manual
This is the 9 pages manual for Toshiba SB 225 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 9
Extracted text from Toshiba SB 225 Service Manual (Ocr-read)
Page 2
83-225
1. OPERATING CONTROLS
Level Indicator Mic Mixing Knob
Power Switch Volume Control
Headphones Jack Microphone Jack
Bass Control Knob Function Switch
Treble Control Knob Tape Monitor Switch
Balance Control Knob Loudnes Switch
Figure 1.
[-SPEAKERS
Ground Power Cord
PHONO (Input)
TUNER (Input)
PLAY (TAPE)
REC (TAPE)
Figure 2.
