Toshiba SA 520 Service Manual
This is the 23 pages manual for Toshiba SA 520 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

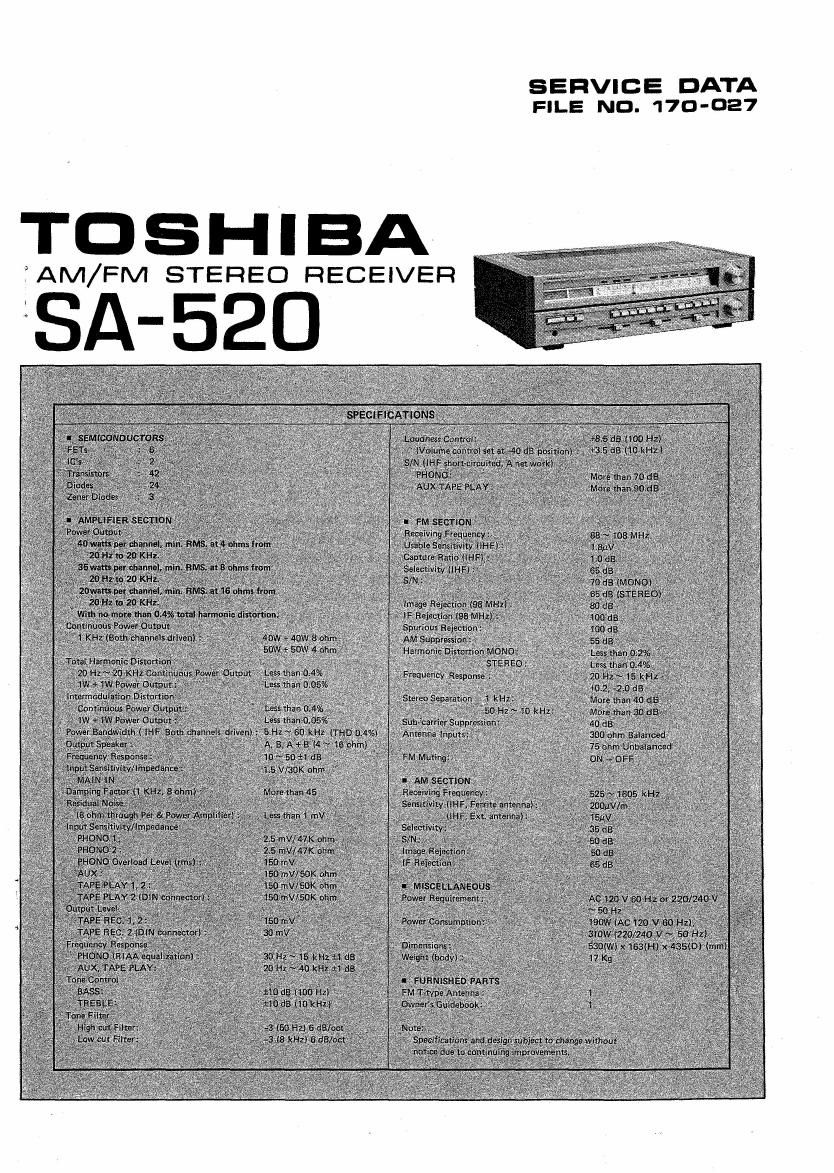

Extracted text from Toshiba SA 520 Service Manual (Ocr-read)
Page 1
TOSHI BA»
fAM/FM STEREO RECEIVER
SIX-520
M.
, a». .
SERVICE DATA
FILE NO. 170-027
Page 2
SA-520
TABLE OF CONTENTS
FEATURES .......................................................... 2
1 OPERATING CONTROLS ............................................ 3
1-1 FRONT VIEW ................................................ 3
1-2 REAR VIEW ................................................. 3
2 PARTS LOCATIONS ................ O ................................ 4
21 CHASSIS TOP VIEW ........................................... 4
2-2 CHASSIS BOTTOM VIEW ........................................ 4
3 DISASSEMBLY INSTRUCTIONS ....................................... 5
3-1 CABINET REMOVAL ........................................... 5
3-2 BOTTOM BOARD REMOVAL .................. . .................. 5
4 TECHNICAL POINTS ............................................... 6
5 CIRCUIT ADJUSTMENTS ........................................ 7 ~ 11
5-1 POWER AMP. ADJUSTMENT ..................................... 7
52 AM ADJUSTMENT ............................................. 8
53 FM ADJUSTMENT ............................................. 10
5-4 FM MPX ADJUSTMENT ......................................... 11
6 DIAL CORD STRINGING ............................................ 12
7 ELECTRICAL PARTS LOCATIONS ................................. 13 ~ 14
7-1 BOTTOM VIEW OF PROTECTOR P.C. BOARD (PRO-2A UNIT) ............ 13
7-2 BOTTOM VIEW OF SUPPLY P.C. BOARD (SPLY-26 UNIT) ................ 13
7-3 BOTTOM VIEW OF POWER AMP. P.C. BOARD (PA-423 UNIT) ............ 13
7-4 BOTTOM VIEW OF CONTROL P.C. BOARD (AF-121B UNIT) .............. 14
7-5 BOTTOM VIEW OF TUNER P.C. BOARD (STP~46 UNIT) ................. 14
7-6 BOTTOM VIEW OF EOUALIZER P.C. BOARD (AF-120 UNIT) ............. 14
8 BLOCK DIAGRAM ................................................. 15
9 SEMICONDUCTOR BASE DIAGRAMS .................................. 16
10 SCHEMATIC DIAGRAM ............................................. 17
11 CABINET 'EXPLODED VIEW ......................................... 18
12 PARTS LIST ................................................. 19 ~ 23
FEATURES
1. Automatic Reset Protective Circuit (Speaker Protection, Power Transistor Protection)
2. Totally Direct~connected Pure Complementary OCL Power Amplifier
3. FM Front-end using FET and Four-variable Capacitors
4. Wide Scale Dial (FM Frequency Linear Type)
5. FM De-emphasis Built-in Change-over Switch
6. 22-Step Detent Volume
