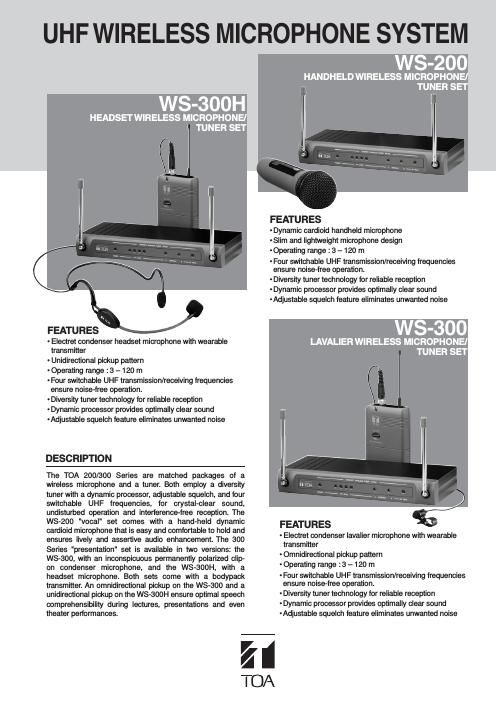

Page 1

UHF WIRELESS MICROPHONE SYSTEM

HANDHELD WIRELESS MICROPHON

WS-3OOH

HEADSET WIRELESS MICROPHON
TUNER SE

FEATURES

- Dynamic cardioid handheld microphone

-Sllm and lightweight microphone design

-Operating range :3 - 120 m

- Four switchable UHF transmission/receiving frequencies
ensure noise-free operation.

- Diversity tuner technology for reliable reception

- Dynamic processor provides optimally clear sound

-Adjustable squelch feature eliminates unwanted noise

FEATURES

- Electret condenser headset microphone with wearable
transmitter

- Unidirectional pickup pattern

- Operating range :3 - 120 m

- Four switchable UHF transmission/receiving frequencies
ensure noise-free operation.

- Diversity tuner technology for reliable reception

- Dynamic processor provides optimally clear sound

-Adjustable squelch feature eliminates unwanted noise

DESCRIPTION

The TOA 200/300 Series are matched packages of a
wireless microphone and a tuner. Both employ a diversity
tuner with a dynamic processor, adjustable squelch, and four
switchable UHF frequencies, for crystal»clear sound,
undisturbed operation and interference-free reception The
WS-200 "vocal" set comes with a hand-held dynamic Iv
cardioid microphone that is easy and comfortable to hold and FEATURES
ensures lively and assertive audio enhancement. The 300
Series "presentation" set is available in two versions: the
WS-300, with an inconspicuous permanently polarized clip-
on condenser microphone, and the WS-300H, with a

- Electret condenser lavalier microphone with wearable
transmitter

. Omnidirectional pickup pattern
- Operating range :3 - 120 m

headset microphone. Both sets come with a bodypack -Four switchable UHF transmission/receiving frequencies
transmitter. An omnidirectional pickup on the WS-300 and a ensure noise-free operation.

unidirectional pickup on the WS-300H ensure optimal speech 'DiVGrSity tuner teChNOIOQY for reliable reception
comprehensibility during lectures, presentations and even °Dynamlc processor provides optimally clear sound
theater performances. -Adjustable squelch feature eliminates unwanted noise

Page 2

WS-200 Handheld Wireless Microphone

WS-300 Lavalier Wireless Microphone

Polar Response

I WS-300H Headset Wireless Microphone

Microphone Element Dynarnic unit. Unidirectional Microphone Element Back electret condenser Omnidirectional

Frequency Range UHF" Frequency Range UHF"

Channel Selectable 4 channels Channel Selectable 4 channels

RF Carrier Power Max. lOmW RF Carrier Power Max 10mW

Modulation System PLL synthesizer Modulation System FLL synthesizer

Battery eLRet Mic input Connector es 5 mini lack

Battery Lite Approx. to hours Battery eLRet

indicator Battery status. LED Battery Lite Approx to hours

Finish Resin. coating indicator Battery status LED

Dimensions oat) x 272 mm Finish Resin, coating

Weight 220 g Dimensions 62 (w) x loz (H) x 31.5 (D) rnrn (excluding antenna)
Weight 90 g

Polar Response

I Wireless Tuner

Microphone Element Electret condenser. Unidirectional Power Requirement AC mains (supplied ACaDC adapter must be used)
Frequency Range UHF Power Consumption 100 rnA (t2 v DC)
Channel Selectable 4 channels Receiving System Double Superaheteiodyne
RF Carrier Poitier Max. loinw Audio Output Balanced output +15 de soon. balanced. xthaaal type connector
Modulation System PLL synthesizer Unbalanced output, no dB' anon, Unbalanced. phone (sex
Mic Input Connector @135 mini )ack Antenna Rod antenna
Battery 6LR61 Receiving Sensitivity Over 90 dB, S/N ratio (20 dBiiV input, 40 kHz deviation)
Battery Lite Approx. to hours Squelch Sensitivity 18740 dBtiv variable
Indicator Battery status, LED indicator ANT A/B. Audio (peak), RFieyel Power
Finish Rem coating SIN Flatio Over 95dB (Arweight. Unbalanced output)
Dimensions 52 (W) x 102 (H) x at 5 (D) rnrn (excluding antenna) Harmonic Distortion Under 1% (typical)
Weight 90 g Frequency Response 100 , t5.000 Hz, :3 dB
Operating Temperature at 0°C to +45%:
Finish Front panel Resin. gray
Polar Response Dimensions 214 (W) x 35 (H) x loo 5 (D) rnrn (excluding antenna)
Weight 580 g
ME = 0.775 v

Frequency range may vary by area

I Sets

WS-200 Handheld wireless mlcrophorie x it Tuner Xi
WS-300 Lavalter wireless mlcrophorle X 1. Tuner x 1
WS-SOOH Headset wireless microphone x 1, Tuner x l

iii Charm-l
g Sal-:1 switch

.5.

t

so. Vim Ranh-u

inn 5

\_/

iC

sum...

Moo 0 o a

lell vi.»

am

I TOA

TOA Corporation

URL: www.toa.jp

Specifications are subjeCt to change without notice.
Printed in Japan (0609) 83376178150 u
