Toa vx 2000 cc1e

Page 2

1. General Description .................................................................................................... 1-1

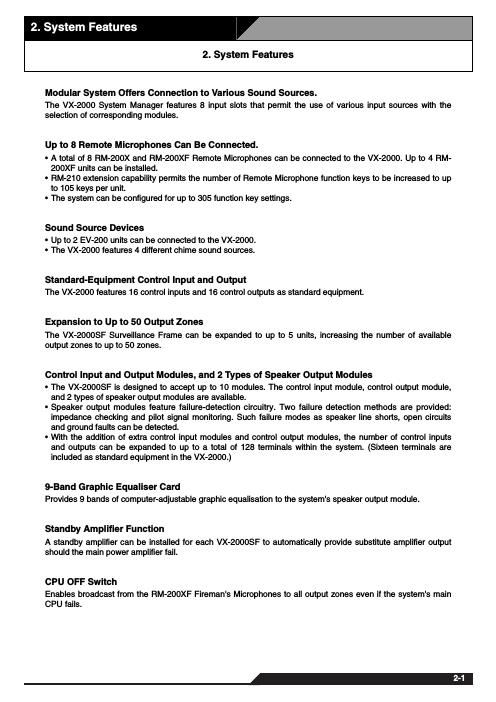

2. System Features .......................................................................................................... 2-1
3. Maximum System Examples

3.1. Block Diagram .........................................
3.2. Maximum System Configuration Table

4. Specifications
4.1. Fireman's Microphone RM-200XF .............................................................................. 4-1

4.2. Remote Microphone RM-200X ...................... 4-2
4.3. Remote Microphone Extension RM-210 ..... 4-3
4.4. System Manager VX-2000 ...................................... 4-4
4.5. Remote Microphone Input Module VX-200XR ..... 4-5

4.6. Audio Input Module with Control input VX»200X| ....................................................... 4-6

4.7. Voice Announcement Board EV-200 .......... 4-7
4.8. Surveillance Frame VX»2000SF ................. 4-8
4.9. Impedance Detection Module VX-ZOOSZ .......... 4-9
4.10. Pilot Tone Detection Module VX»2OOSP .. 4-10
4.11. Control Input Module VX-2OOSI .................... 4-11

4.12. Control Output Module VX-ZOOSO ..... ...4-12
4.13. Equaliser Card VX-2OOSE .................. ...4-13
4.14. Power Amplifier 4 x 60 W VP-2064 ...... 4-14
4.15. Power Amplifier 2 x 120 W VP-2122 . 4-15
4.16. Power Amplifier 1 x 240 W VP»2241 4-16
4.17. Power Amplifier 1 x 420 W VP-2421 ........... 4-17
4.18. Power Amplifier Input Module VP-200VX ..... 4-18
4.19. Power Supply Unit VX-200PS .................. 4-19
4.20. Emergency Power Supply VX-2000DS . 4-20
4.21. Power Supply Frame VX-2000PF ............

...4-21

5. Typical System Examples

5.1. Typical System Outline
5.1.1. External View of the Building
5.1.2. Internal Wiring ...........................
5.1.3. Block Diagram ........................................
5.1.4. Equipment Rack Conceptual Drawing

5.2. Equipment Interconnection Examples
5.2.1. VX-2000 Connections to Remote Microphones and Input Source Equipment 5-6

5.2.2. Connections between VX»2000 and VX-ZOOOSF ............................................... 5-7
5.2.3. SF Modules (VX»2OOSP, VX-2OOSZ, VX-2OOSI, VX-2OOSO) Connections ........ 5-8
5.2.4. Connections Between VX-ZOOOSF and Standby Amplifier ............................... 511
5.2.5. Connections Between VX-2000SF and VX»2000DS 5-12
5.2.6. Connections Between VX-2000DS and VX-2000PS 513
5.2.7. VX-2000 Cable Usage Table ....................................... 5-14

5.2.8. 5.2.8. VX»2000DS Cautions on Cable Connection to the Battery Terminal ....... 5-17
