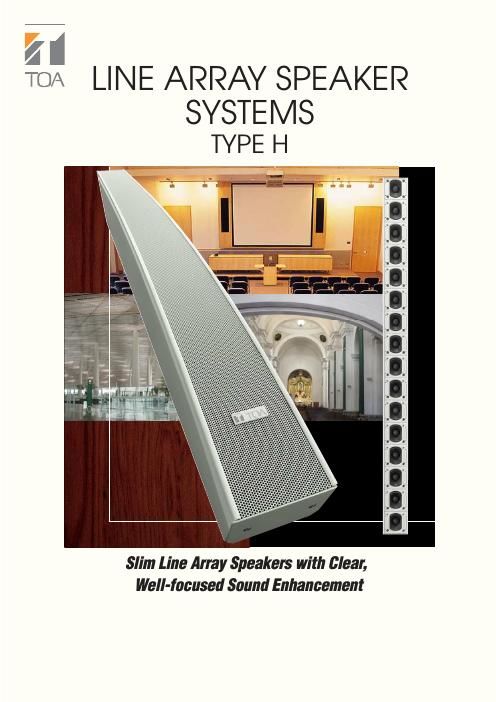

Page 1
Slim and stylish TOA Type H Lin e high-quality audio for a wide ve n SR- H3L TOA Type H Line Array Speakers come with such sound- enhancing benefits as clear sound, excellent directionality of focus on the listening area, and transmission of clear, even sound over a distance, thanks to a low degree of sound attenuation. These speakers are well-suited for medium-sized mainly speech applications where clear, uniformly dispersed sound that is audible at a distance is essential, such as conference centers, houses of worship and railway stations, or venues with highly reflective interior surfaces. The Type H consists of four models, in short or long lengths and straight or curved variations. The short models contain 9 vertically connected 7-cm (2.8") full- range speaker units, while the taller long models come with 16 speaker units. Both lengths work to provide high- quality sound even when an equalizer is not used. The speaker units come in a slim, energy-efficient and cost-effective design, with a body that is narrower than earlier versions, so they are well-suited to a wide range of venue interiors. TOA Type H Line Array Speakers come with such sound- enhancing benefits as clear sound, excellent directionality of focus on the listening area, and transmission of clear, even sound over a distance, thanks to a low degree of sound attenuation. These speakers are well-suited for medium-sized mainly speech applications where clear, uniformly dispersed sound that is audible at a distance is essential, such as conference centers, houses of worship and railway stations, or venues with highly reflective interior surfaces. The Type H consists of four models, in short or long lengths and straight or curved variations. The short models contain 9 vertically connected 7-cm (2.8") full- range speaker units, while the taller long models come with 16 speaker units. Both lengths work to provide high- quality sound even when an equalizer is not used. The speaker units come in a slim, energy-efficient and cost-effective design, with a body that is narrower than earlier versions, so they are well-suited to a wide range of venue interiors. SR- H2L SR- H2S SR- H3L SR- H3S Line Array Speaker Standard Speaker SR- H2S SR- H2L 84mm
Page 2
e Array Speakers ensure cost-efficient, n ue and decor range. Outstanding Sound Quality -Sync-Drive (Synchronous Nexus Control) technology keeps the audio in phase with its sources at the speakers to create an ideal linear sound source. -Line array configuration of speakers works to produce clear sound with reduced attenuation over distance. -Speakers are reflection-free and feedback resistant. -A unique aperture front grille structure enhances the horizontal frequency vs. beam width response for more focused horizontal dispersion. -Speakers are designed for optimally precise directivity of sound, especially vertical directivity, so the audio dispersion can be more accurately focused at the targeted area. -Curved speaker models rely on a hyper-clothoid concept curved array that ensures improved vertical dispersion. Application Versatility -Selection among four models is possible, enabling more extensive customization of the listening area. -Most applications are fully covered by no-extension (one cabinet) set-ups, but up to two units can be connected when an expanded vertical coverage area is suitable. *Straight type only -Attractive and narrow 84mm (3.31") design allows speakers to fit in well with the interior decor of the venue. -Optionally available mounting brackets allow gap-free installation of speakers on a wall, for an aesthetically pleasing appearance. Space/Energy Efficient Design -Energy-efficient line array configuration requires less input power to deliver required output. -High-quality sound reproduction even when an equalizer is not used. (In some situations, equalization using a digital processor is recommended, so that Type H can best meet the specific demands of that application.) -Fully effective operation is possible without additional amplification equipment, saving space and adding to the unit's cost effectiveness. Easy & Flexible Installation -A wide variety of optional mounting brackets is available, for wall-mounting, rigging, and stand mounting the Type H speakers. -Removable input terminal connectors make hook-ups easier and less cumbersome. -For high-impedance operation, an optional matching transformer MT-S0301 is available. TOA Type H Line Array Speakers come with such sound- enhancing benefits as clear sound, excellent directionality of focus on the listening area, and transmission of clear, even sound over a distance, thanks to a low degree of sound attenuation. These speakers are well-suited for medium-sized mainly speech applications where clear, uniformly dispersed sound that is audible at a distance is essential, such as conference centers, houses of worship and railway stations, or venues with highly reflective interior surfaces. The Type H consists of four models, in short or long lengths and straight or curved variations. The short models contain 9 vertically connected 7-cm (2.8") full- range speaker units, while the taller long models come with 16 speaker units. Both lengths work to provide high- quality sound even when an equalizer is not used. The speaker units come in a slim, energy-efficient and cost-effective design, with a body that is narrower than earlier versions, so they are well-suited to a wide range of venue interiors. TOA Type S Line Array Speakers are 2-way line array speaker models, each with 8 10-cm (4") woofers and 24 high-frequency drivers, installed vertically to create a continuous linear sound source that resists attenuation over distance. TOA created Type S Line Array speakers for use in larger venues where clear sound needs to be carried over a long distance. The Type S speaker lineup also includes a waterproof model, to enable a wider range of applications. TOA makes both Type S and Type H speaker lineups available, to allow users to select the speaker model that best suits their particular application requirements. SR-S4L/S4LWP SR-S4S/S4SWP Type S Line Array Speaker 84mm For Applications Requiring Water-proof or 2-way Speaker Models
