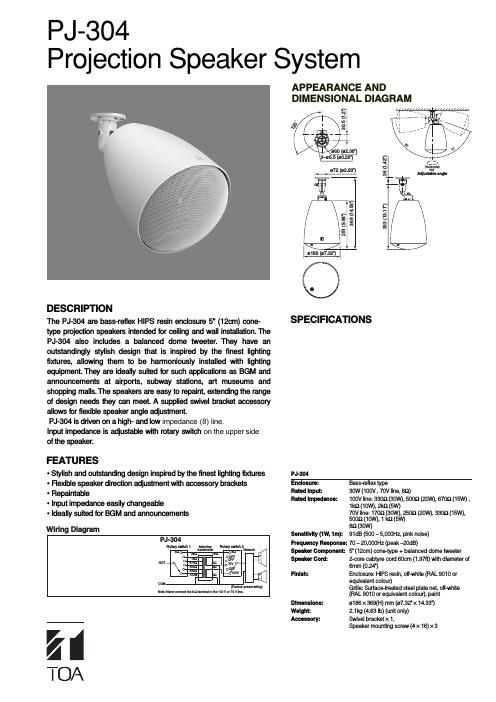

PJ-304
Projection Speaker System

APPEARANCE AND
DIMENSIONAL DIAGRAM

ET.
<2
a72 (212.83) E
E: c
.- E :5
a a
. I .
mas @1732") I
DESCRIPTION
The PJ-304 are bass-reflex HIPS resin enclosure 5" (120m) cone- SPECIFICATIONS
type projection speakers intended for ceiling and wall installation. The
PJ-304 also includes a balanced dome tweeter. They have an
outstandingly stylish design that is inspired by the finest lighting
fixtures, allowing them to be harmoniously installed with lighting
equipment. They are ideally suited for such applications as BGM and
announcements at airports, subway stations, art museums and
shopping malls. The speakers are easy to repaint, extending the range
of design needs they can meet. A supplied swivel bracket accessory
allows for flexible speaker angle adjustment.
PJ-304 is driven on a high» and low impedance (8) line.
Input impedance is adjustable with rotary switch on the upper side
of the speaker.
FEATURES
- Stylish and outstanding design inspired by the finest lighting fixtures PJ-3D4
. Flexible speaker direction adjustment with accessory brackets Enclosure: BaSS-reflex type
, Repaintable Rated Input: 30W(100V,70VIine,BQ)
. . Rated Impedance: 100V|ine:3309(30W),5000(20W),670§1(15W),
- Input Impedance easrly changeable we (mm, M) (5W)
. Ideally suited for BGM and announcements 70V line: 1709 (30W), 2500(20W), 3309(15W),
soon newt. 1 k9 (5W)
. . . snrsowi
erlng Diagram Sensltlvlty(1VIl,1m): BtdB (500 - 5,000Hz, pink noise)
PJ-3ogm M mmz Frequency Response: 70 - 20,000Hz (peak -20dB)
m M Speaker Component: 5' (12cm) cone-type + balanced dome tweeter
m 500:: Speaker Cord: 2-core cabtyre cord 60cm (1 .97fl) with diameter of
V 6mm (0.24)
Flnlsh: Enclosure: HIPS resrn, off-white (HAL 9010 or
W equivalent colour)
Armrw-umm Grille: Surface-treated steel plate net, off-white
Wilmmmmnmumnmmvm (HAL 90100requivaemcolom paint
Dimensions: 0186 x 369(H) mm (0732' x 14.33')
Weight: 2.1kg (4.63 lb) (unit only)
Accessory: Swivel bracket x 1,

Speaker mounting screw (4 x 16) x 3
